COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08391		Well Classification: OW Status: PR - 3/1/2025
Well Name/No:ELKHORN CO #3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2025
FacilityID:240603LocationID:318096
County:WELD #123Location:NENW 21 2N67W 6
Field:SPINDLE - #77900Elevation:4999 ft.
Basin:DENVER (DJ) BASIN
Planned Location:600FNL  1980 FWLLat/Long: 40.129377 / -104.898303Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.129400 / -104.898320Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 3/1/2025             Measured TD: 5170 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 3/1/2025
Wellbore Permit
Permit #:19750317 Expiration Date:8/24/1975
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:5/11/1976
Spud Date:5/27/1975Spud Date Is:ACTUAL
Measured TD:5170 ft.Measured PB depth:5125 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR W/ CALIEPR
Log Types:SP-IES & FDC-GR CALIPER LOGS

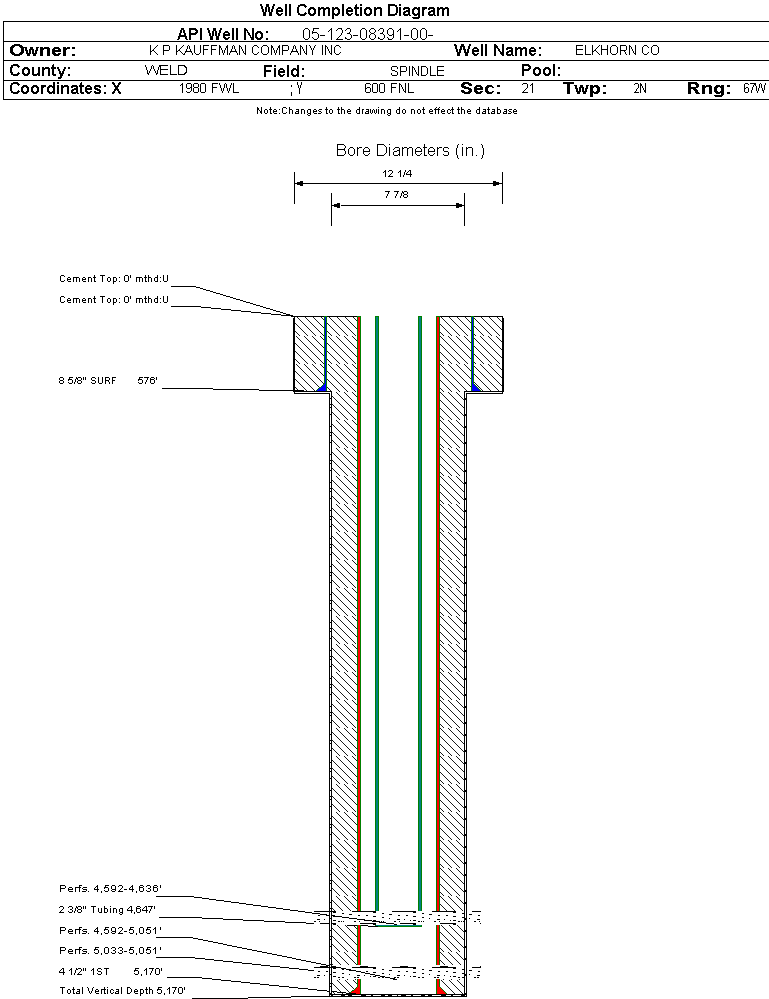

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 576 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5170 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE550 ft.NN
SUSSEX4626 ft.NN
SHANNON5032 ft.NN

Formation SNSD                     Formation Classification:  OW                     Status:  CM - 4/27/1999                 Interval Top: 5033 ft.    Interval Bottom: 5051 ft.

 Completed Information for Formation SHANNON
1st Production Date:6/21/1975Choke Size:
Formation Name:SHANNONCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:5/11/1976
Treatment Summary:124,320 GALS; 72,000# 20/40 SAND; 120,000# 10/20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/9/1975Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 78
CALC_BBLS_OIL 78
CALC_MCF_GAS 62
GRAVITY_OIL 45
MCF_GAS 62
Perforation Data:
Interval Top:5033 ft.# Of Holes:36
Interval Bottom:5051 ft.Hole Size:

Formation SUSX                     Formation Classification:  OW                     Status:  CM - 4/27/1999                 Interval Top: 4592 ft.    Interval Bottom: 4636 ft.

 Completed Information for Formation SUSSEX
1st Production Date:4/22/1976Choke Size:
Formation Name:SUSSEXCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:5/11/1976
Treatment Summary:121,000 GALS FLUID; 72,000# 20/40 SN
Tubing Size:2.375 in.Tubing Setting Depth:4647 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/22/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 45
CALC_BBLS_H2O 1
CALC_BBLS_OIL 45
CALC_MCF_GAS 571
GRAVITY_OIL 38.6
MCF_GAS 571
Perforation Data:
Interval Top:4592 ft.# Of Holes:
Interval Bottom:4636 ft.Hole Size:

Formation SX-SN                   Formation Classification:  OW                   Status:  PR - 3/1/2025                  Interval Top: 4592 ft.    Interval Bottom: 5051 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:5/11/1976Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
Perforation Data:
Interval Top:4592 ft.# Of Holes:
Interval Bottom:5051 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)267
GOR
GOR DeterminationMCFE
Average BOE per Day0.128
Average MCFE per Day0.727

 Federal Financial Assurance  i

 Tribal Well  i No
