COGIS - WELL SCOUT CARD

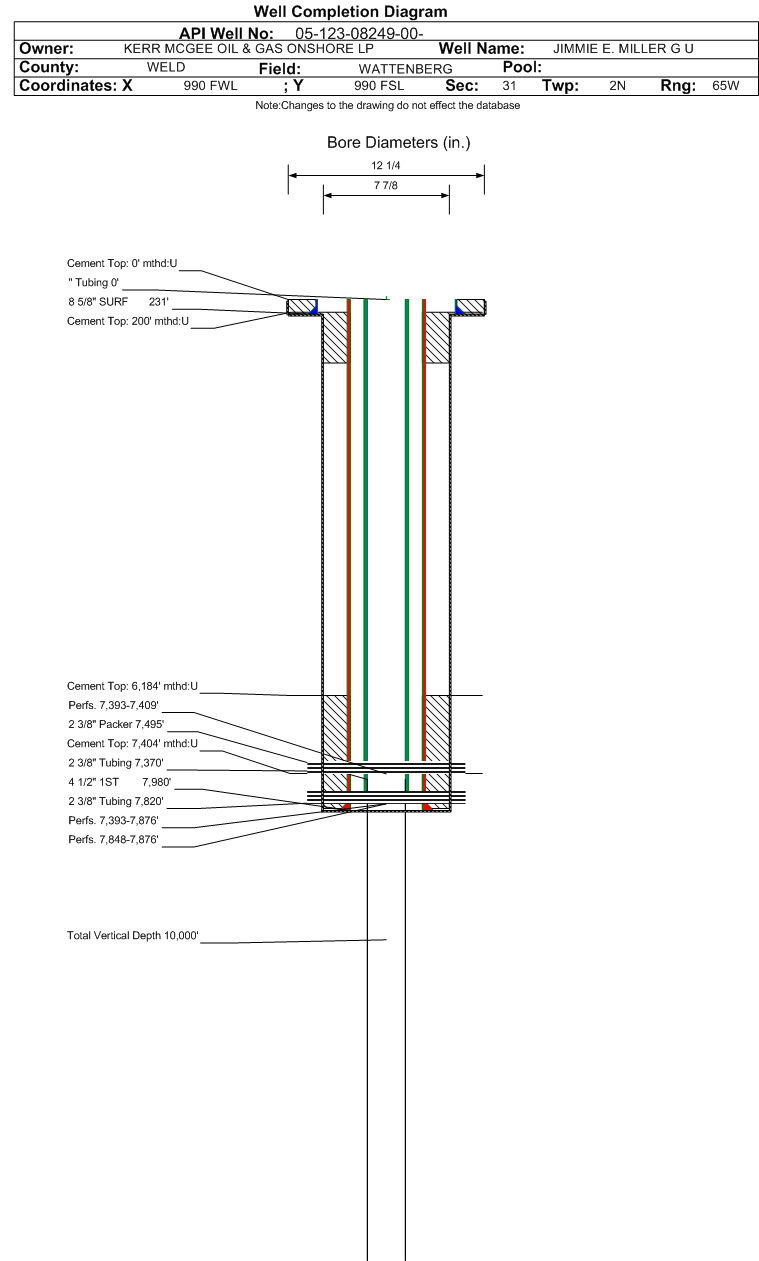

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08249		Well Classification: OW Status: PA - 4/21/2014
Well Name/No:JIMMIE E. MILLER G U #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/21/2014
FacilityID:240461LocationID:318031
County:WELD #123Location:SWSW 31 2N65W 6
Field:WATTENBERG - #90750Elevation:4993 ft.
Planned Location:990FSL  990 FWLLat/Long: 40.090148 / -104.712527Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.090180 / -104.712510Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/21/2014             Measured TD: 7950 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/21/2014
Wellbore Permit
Permit #:19741090 Expiration Date:4/27/1975
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:2/6/1975
Spud Date:12/19/1974Spud Date Is:ACTUAL
Measured TD:7950 ft.Measured PB depth:7930 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES-FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 231 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: 231 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7980 ft., Weight: 10.5/11.6, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7404 ft., Bottom: 7948 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7980 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 0, Top: 6184 ft., Bottom: 7375 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 7980 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 200 ft., Bottom: 990 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE928 ft.
SUSSEX4610 ft.
NIOBRARA7074 ft.
CODELL7393 ft.
J SAND7841 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 4/21/2014                 Interval Top: 7848 ft.    Interval Bottom: 7876 ft.

 Completed Information for Formation J SAND
1st Production Date:1/12/1975Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/6/1975
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 41
CASING_PRESS 200
GRAVITY_OIL 60
MCF_GAS 372
Perforation Data:
Interval Top:7848 ft.# Of Holes:
Interval Bottom:7876 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  AB - 4/21/2014                 Interval Top: 7393 ft.    Interval Bottom: 7409 ft.

 Completed Information for Formation CODELL
1st Production Date:6/14/1995Choke Size:0.000 in.
Formation Name:CODELLCommingled:No
Production Method:PLUNGER
Open Hole Completion:No
Formation Treatment
Treatment Date:2/6/1975
Treatment Summary:REFRAC CODL #100 MESH 261800 #20/40 MESH 8972 GAL. GELLED FLUID REPERFORATED CODELL FROM 7394'-7404'
Tubing Size:2.375 in.Tubing Setting Depth:7370 ft.
Tubing Packer Depth:7515 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/11/2001Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 8
CALC_BBLS_OIL 8
CALC_GOR 875
CALC_MCF_GAS 7
CASING_PRESS 1150
GRAVITY_OIL 60
MCF_GAS 7
TUBING_PRESS 1000
Perforation Data:
Interval Top:7393 ft.# Of Holes:64
Interval Bottom:7409 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 4/21/2014                 Interval Top: 7393 ft.    Interval Bottom: 7876 ft.

 Completed Information for Formation J-CODELL
1st Production Date:9/22/1995Choke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:PLUNGER
Open Hole Completion:No
Formation Treatment
Treatment Date:2/6/1975
Treatment Summary:COMMINGLED J-CDL
Tubing Size:2.375 in.Tubing Setting Depth:7820 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/10/2001Test Method:PLUNGER
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 5
CALC_GOR 11600
CASING_PRESS 500
GRAVITY_OIL 60
MCF_GAS 58
TUBING_PRESS 375
Perforation Data:
Interval Top:7393 ft.# Of Holes:
Interval Bottom:7876 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/21/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
