COGIS - WELL SCOUT CARD

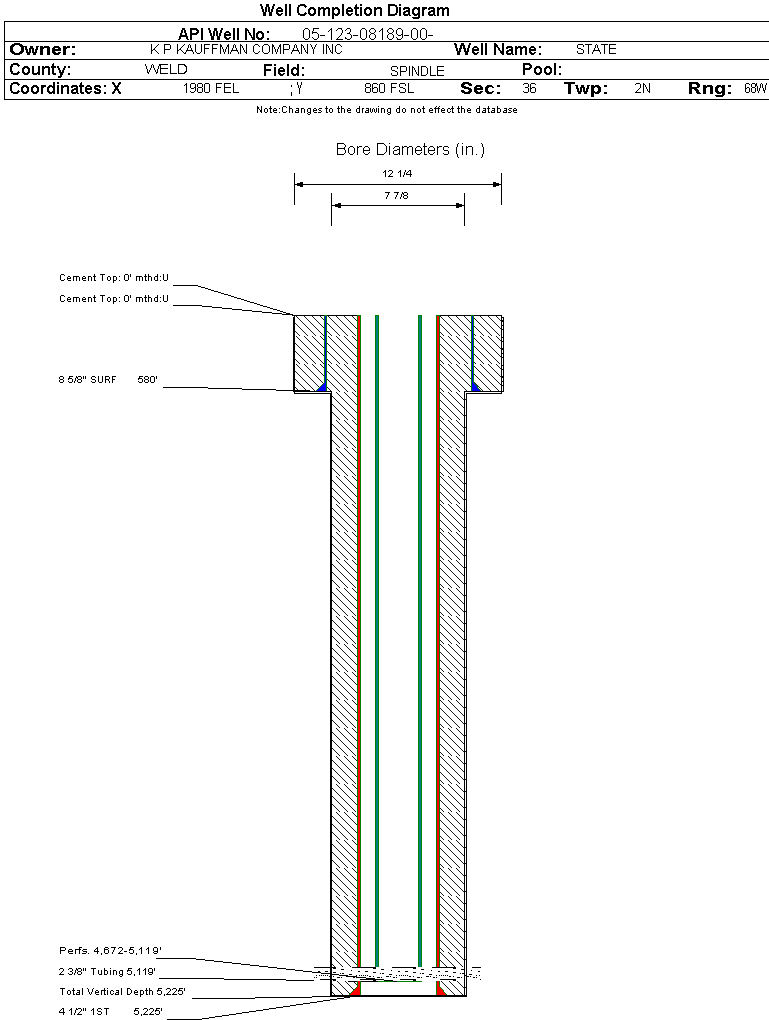

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08189		Well Classification: GW Status: PR - 10/30/1975
Well Name/No:STATE #9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/30/1975
FacilityID:240401LocationID:336096
Municipality/County:FREDERICK / WELD #123Location:SWSE 36 2N68W 6
Field:SPINDLE - #77900Elevation:5022 ft.
Planned Location:860FSL  1980 FELLat/Long: 40.090007 / -104.949375Lat/Long Source: Calculated From Footages
As Drilled Location:855 FSL  1957 FELLat/Long: 40.090010 / -104.949280Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 10/30/1975             Measured TD: 5225 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 10/30/1975
Wellbore Permit
Permit #:19740901 Expiration Date:2/24/1975
Proposed Depth/Form:5225 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SNSD , Formation: SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:10/30/1975
Spud Date:12/28/1975Spud Date Is:ACTUAL
Measured TD:5225 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER LOGS
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 580 ft., Weight: 28 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5225 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE530 ft.NN
SUSSEX4668 ft.NN
SHANNON5092 ft.NN

Formation SX-SN                   Formation Classification:  GW                   Status:  PR - 10/30/1975                Interval Top: 4672 ft.    Interval Bottom: 5119 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:10/30/1975Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:10/30/1975
Treatment Summary:SUSX (4672'-4696', 48 HOLES): 120,960 GALS; 72,000# 20-40 SAND; 156,000# 10-20 SAND. SNSD (5100'-5119', 38 HOLES): 121,926 GALS; 72,000# 20-40 SAND; 156,000# 10-20 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5119 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/30/1975Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 175
CALC_BBLS_H2O 20
CALC_BBLS_OIL 175
CALC_MCF_GAS 102
GRAVITY_OIL 44.6
MCF_GAS 102
Perforation Data:
Interval Top:4672 ft.# Of Holes:86
Interval Bottom:5119 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)430
Total Gas Produced (MCF)1110
GOR2581
GOR DeterminationBOE
Average BOE per Day1.690
Average MCFE per Day9.806

 Federal Financial Assurance  i

 Tribal Well  i No
