COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08105		Well Classification: GW Status: PA - 9/18/2013
Well Name/No:UPRR 42 PAN AM N/NAV #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/18/2013
FacilityID:240317LocationID:317987
County:WELD #123Location:SWSW 17 1N67W 6
Field:WATTENBERG - #90750Elevation:5127 ft.
Planned Location:990FSL  1190 FWLLat/Long: 40.046448 / -104.919923Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.046464 / -104.919869Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

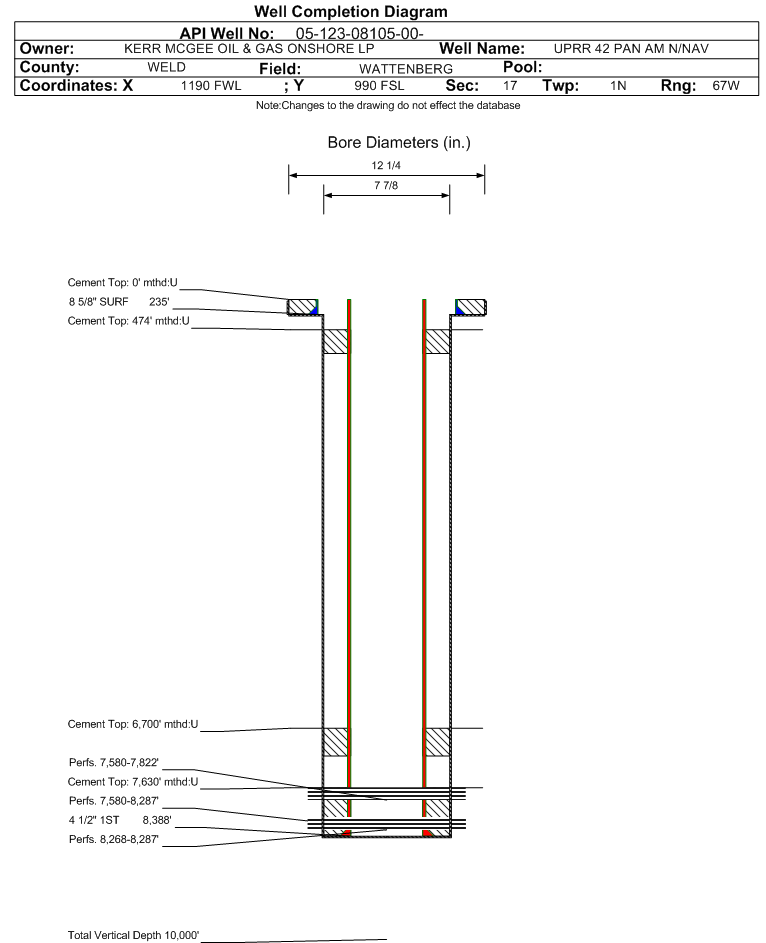

Wellbore #00             Wellbore Classification: GW             Status: PA - 9/18/2013             Measured TD: 8390 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/18/2013
Wellbore Permit
Permit #:19740573 Expiration Date:11/25/1974
Proposed Depth/Form:8400 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 0 , Unit Acreage: 80, Drill Unit: S2SW
Wellbore Completed
Completion Date:9/30/1974
Spud Date:8/10/1974Spud Date Is:ACTUAL
Measured TD:8390 ft.Measured PB depth:8323 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES & FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 235 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 235 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8388 ft., Weight: 11.6/10.5, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7630 ft., Bottom: 8388 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7136 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6700 ft., Bottom: 7134 ft., Determination Method: CALC
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 844 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 474 ft., Bottom: 844 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE525 ft.NN
LARAMIE4332 ft.NN
SUSSEX4620 ft.NN
NIOBRARA7436 ft.NN
CODELL7808 ft.NN
J SAND8246 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 9/18/2013                 Interval Top: 8268 ft.    Interval Bottom: 8287 ft.

 Completed Information for Formation J SAND
1st Production Date:9/18/1974Choke Size:1.000 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/30/1974
Treatment Summary:176,820 GALS 67,000# 100 MESH SAND 184,800# 20/40 SAND 25,500# 10/20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/29/1974Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 8
BBLS_OIL 16
CASING_PRESS 375
GRAVITY_OIL 60
MCF_GAS 2378
Perforation Data:
Interval Top:8268 ft.# Of Holes:
Interval Bottom:8287 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 9/18/2013                 Interval Top: 7580 ft.    Interval Bottom: 8287 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JNBCD.
Perforation Data:
Interval Top:7580 ft.# Of Holes:
Interval Bottom:8287 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/18/2013                 Interval Top: 7580 ft.    Interval Bottom: 7822 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:5/30/1985Choke Size:1.000 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/30/1974
Treatment Summary:3690 BL W/H2O 40000# 100 MESH, 310000# 20/40
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/3/1985Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 15
CALC_GOR 6133
GRAVITY_OIL 48.3
MCF_GAS 92
Perforation Data:
Interval Top:7580 ft.# Of Holes:11
Interval Bottom:7822 ft.Hole Size:0.33 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/18/2013
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
