COGIS - WELL SCOUT CARD

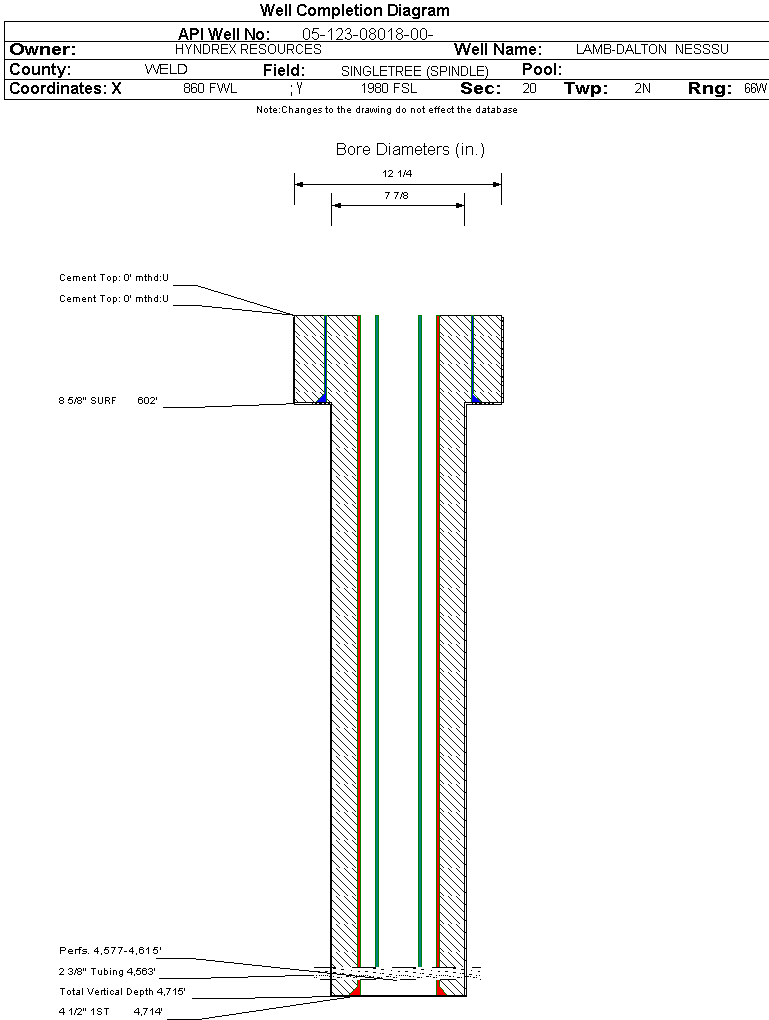

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-08018		Well Classification: OW Status: SI - 4/1/2021
Well Name/No:LAMB-DALTON NESSSU #13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date4/1/2021
FacilityID:240230LocationID:317947
County:WELD #123Location:NWSW 20 2N66W 6
Field:SINGLETREE (SPINDLE) - #77510Elevation:4879 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  860 FWLLat/Long: 40.121857 / -104.807630Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.121740 / -104.807530Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 4/1/2021             Measured TD: 4715 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 4/1/2021
Wellbore Permit
Permit #:19740176 Expiration Date:3/20/1975
Proposed Depth/Form:4750 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: N2SW
Wellbore Completed
Completion Date:5/21/1974
Spud Date:4/11/1974Spud Date Is:ACTUAL
Measured TD:4715 ft.Measured PB depth:4673 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES AND GR-FDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 602 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4714 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4576 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  SI - 4/1/2021                  Interval Top: 4577 ft.    Interval Bottom: 4615 ft.

 Completed Information for Formation SUSSEX
1st Production Date:5/18/1974Choke Size:0.312 in.
Formation Name:SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:5/21/1974
Treatment Summary:68,100 GAL K-1 196,000# SAND
Tubing Size:2.375 in.Tubing Setting Depth:4563 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/23/1974Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 225
CALC_BBLS_H2O 3
CALC_BBLS_OIL 225
CALC_GOR 777
CALC_MCF_GAS 175
CASING_PRESS 800
GRAVITY_OIL 40
MCF_GAS 175
TUBING_PRESS 270
Perforation Data:
Interval Top:4577 ft.# Of Holes:54
Interval Bottom:4615 ft.Hole Size:3.125 in.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
03/31/2021
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
