COGIS - WELL SCOUT CARD

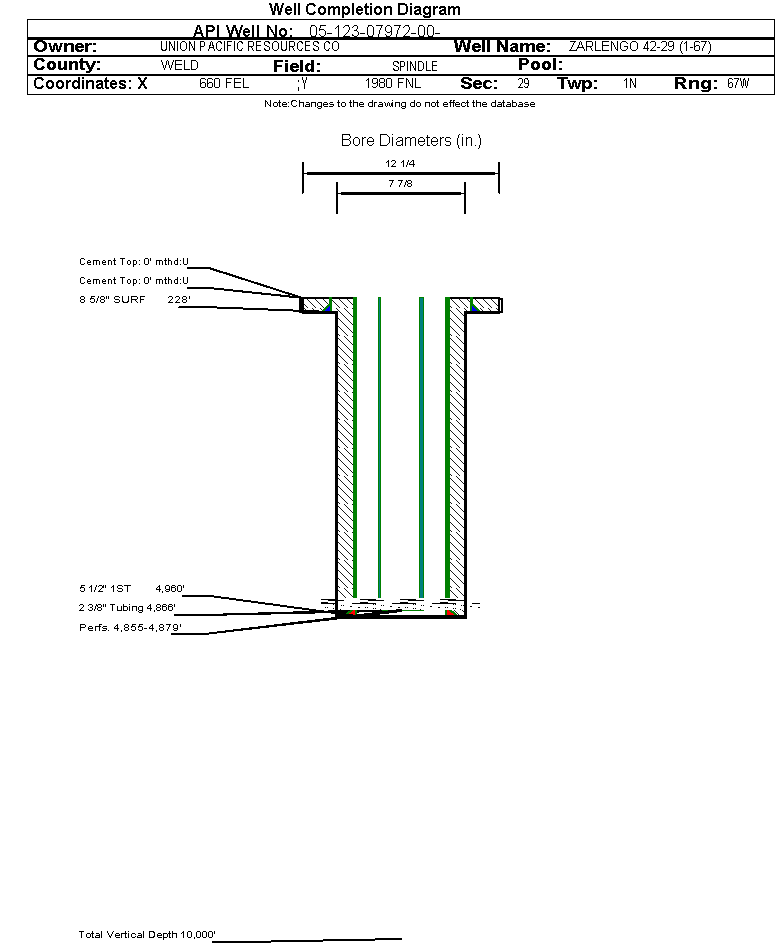

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07972		Well Classification: OW Status: PA - 6/18/1996
Well Name/No:ZARLENGO 42-29 (1-67) #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UNION PACIFIC RESOURCES COMPANY - 91100
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/18/1996
FacilityID:240184LocationID:406197
County:WELD #123Location:SENE 29 1N67W 6
Field:SPINDLE - #77900Elevation:5024 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  660 FELLat/Long: 40.023818 / -104.907283Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 6/18/1996             Measured TD: 4960 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 6/18/1996
Wellbore Permit
Permit #:19731046 Expiration Date:4/20/1974
Proposed Depth/Form:4950 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:1/23/1974
Spud Date:12/28/1974Spud Date Is:ACTUAL
Measured TD:4960 ft.Measured PB depth:4923 ft.
True Vertical TD:True Vertical PB depth:
Log Types:I-ES, FDC GAMMA RAY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 228 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 4960 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4700 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 6/18/1996                 Interval Top: 4855 ft.    Interval Bottom: 4879 ft.

 Completed Information for Formation SUSSEX
1st Production Date:1/23/1974Choke Size:0.375 in.
Formation Name:SUSSEXCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:1/23/1974
Treatment Summary:144 BBLS K-1 PAD, 811 BBLS K-1 FLUID W/12,000# 20/40 SD, 60,000# 10/20 SD IN STAGES W/12 BALL SEALERS 150# OS-90 UNIBEADS BETWEEN STAGES.
Tubing Size:2.375 in.Tubing Setting Depth:4866 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/23/1974Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 333
CALC_GOR 798
CASING_PRESS 480
GRAVITY_OIL 42
MCF_GAS 266
TUBING_PRESS 150
Perforation Data:
Interval Top:4855 ft.# Of Holes:25
Interval Bottom:4879 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/18/1996
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
