COGIS - WELL SCOUT CARD

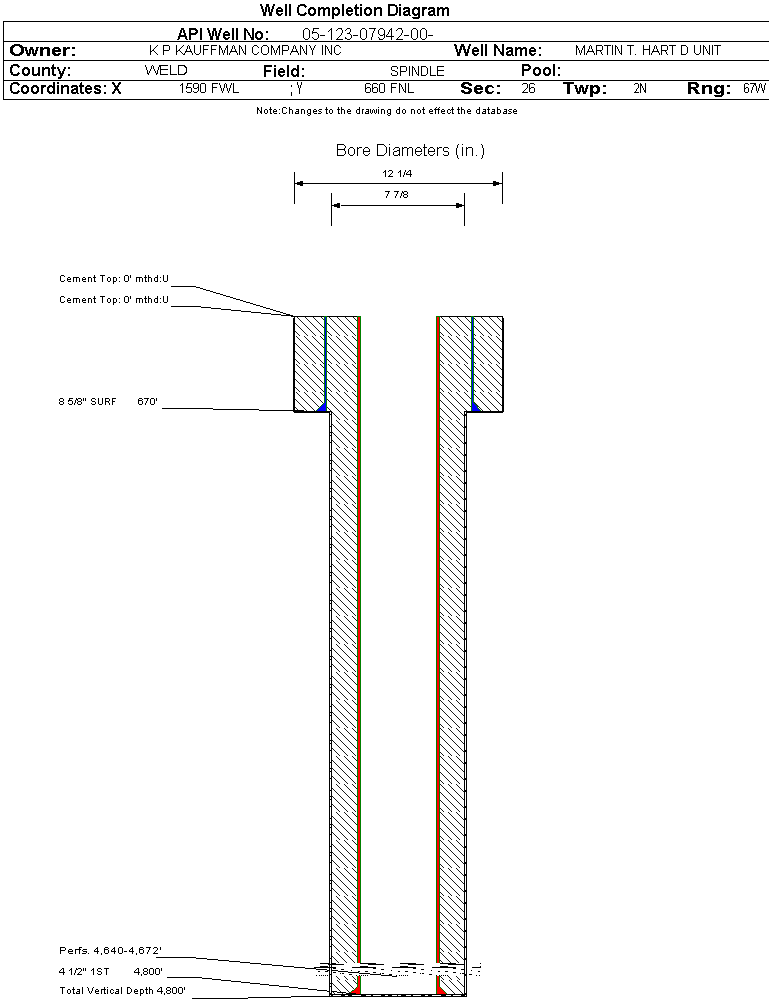

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07942		Well Classification: GW Status: PR - 9/1/2022
Well Name/No:MARTIN T. HART D UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2022
FacilityID:240154LocationID:317907
County:WELD #123Location:NENW 26 2N67W 6
Field:SPINDLE - #77900Elevation:4945 ft.
Planned Location:660FNL  1590 FWLLat/Long: 40.114497 / -104.862022Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.114559 / -104.861962Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2022             Measured TD: 4800 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2022
Wellbore Permit
Permit #:19730954 Expiration Date:3/19/1974
Proposed Depth/Form:4790 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:12/13/1973
Spud Date:11/23/1973Spud Date Is:ACTUAL
Measured TD:4800 ft.Measured PB depth:4755 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 670 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4800 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4636 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 9/1/2022                  Interval Top: 4640 ft.    Interval Bottom: 4672 ft.

 Completed Information for Formation SUSSEX
1st Production Date:12/10/1973Choke Size:0.750 in.
Formation Name:SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/13/1973
Treatment Summary:41,500 GALS; 51,000# 20-40 SAND; 35,000# 10-20 SAND; 1,000# GLASS BEADS
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/12/1973Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 131
CALC_BBLS_H2O 13
CALC_BBLS_OIL 131
CALC_GOR 8153
CALC_MCF_GAS 1068
GRAVITY_OIL 40.5
MCF_GAS 1068
Perforation Data:
Interval Top:4640 ft.# Of Holes:22
Interval Bottom:4672 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)238
GOR
GOR DeterminationMCFE
Average BOE per Day0.109
Average MCFE per Day0.648

 Federal Financial Assurance  i

 Tribal Well  i No
