COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07879		Well Classification: OW Status: PR - 5/1/2024
Well Name/No:HEIT, ANTONE C #B-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2024
FacilityID:240091LocationID:335624
County:WELD #123Location:NESE 14 1N67W 6
Field:SPINDLE - #77900Elevation:4954 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  660 FELLat/Long: 40.049088 / -104.850941Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.049150 / -104.850840Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

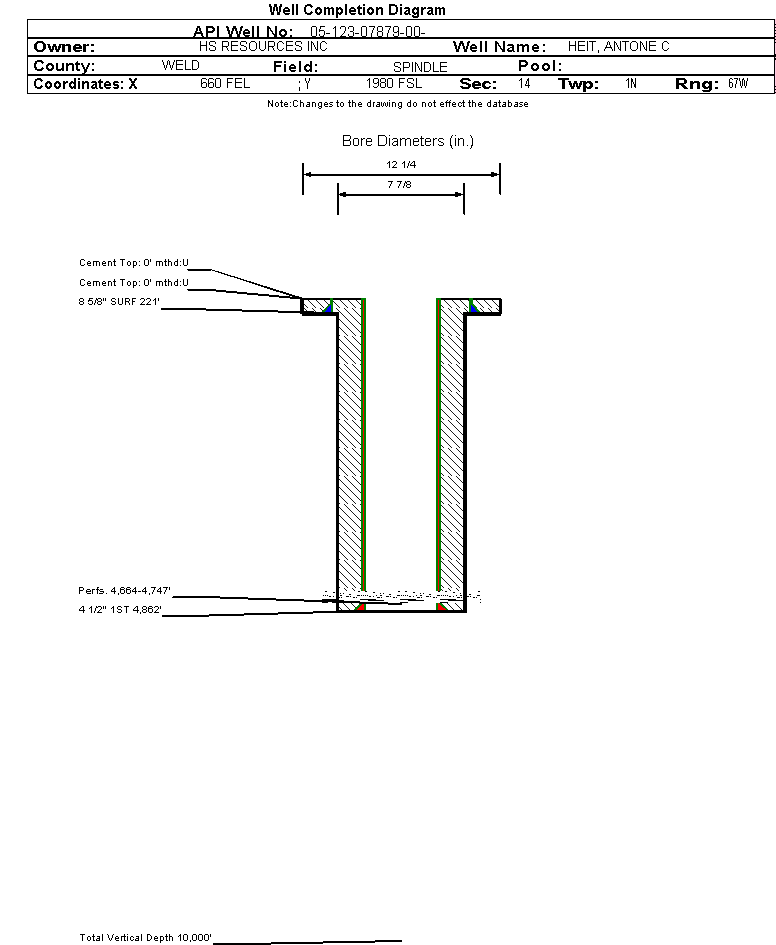

Wellbore #00             Wellbore Classification: OW             Status: PR - 5/1/2024             Measured TD: 4863 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 5/1/2024
Wellbore Permit
Permit #:19730766 Expiration Date:1/20/1974
Proposed Depth/Form:4840 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: N2SE
Wellbore Completed
Completion Date:10/30/1973
Spud Date:9/24/1973Spud Date Is:ACTUAL
Measured TD:4863 ft.Measured PB depth:4831 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES, FDC-GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 221 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4862 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4658 ft.NN

Formation SUSX                     Formation Classification:  OW                     Status:  PR - 5/1/2024                  Interval Top: 4664 ft.    Interval Bottom: 4747 ft.

 Completed Information for Formation SUSSEX
1st Production Date:10/20/1973Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/30/1973
Treatment Summary:69,000 GAL 135,000# 20/40 & 10/20 SAND 2,600# GLASS BEADS
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/30/1973Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 85
CALC_GOR 3176
GRAVITY_OIL 40.5
MCF_GAS 270
Perforation Data:
Interval Top:4664 ft.# Of Holes:
Interval Bottom:4747 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)216
Total Gas Produced (MCF)249
GOR1152
GOR DeterminationBOE
Average BOE per Day0.707
Average MCFE per Day4.103

 Federal Financial Assurance  i

 Tribal Well  i No
