COGIS - WELL SCOUT CARD

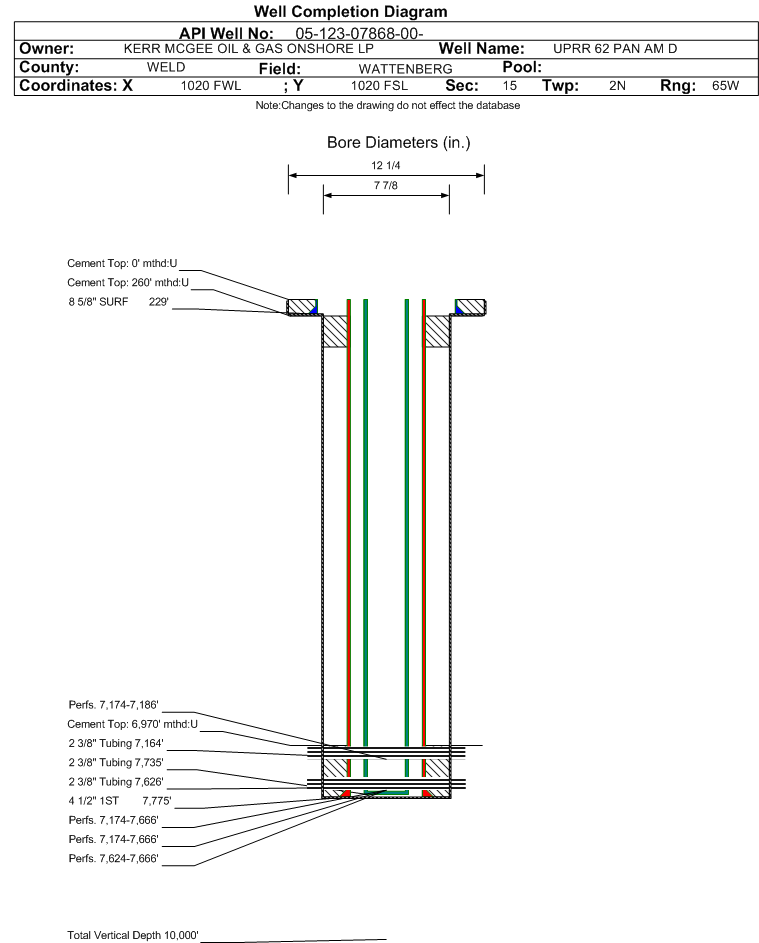

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07868		Well Classification: GW Status: PA - 3/16/2016
Well Name/No:UPRR 62 PAN AM D #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/16/2016
FacilityID:240080LocationID:317860
County:WELD #123Location:SWSW 15 2N65W 6
Field:WATTENBERG - #90750Elevation:4872 ft.
Planned Location:1020FSL  1020 FWLLat/Long: 40.134028 / -104.655806Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.134206 / -104.655926Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/16/2016             Measured TD: 7908 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/16/2016
Wellbore Permit
Permit #:19980871 Expiration Date:9/23/1999
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: DKJCD , Formation: DAKOTA-J-CODELL , Order: 318A , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 499-15 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:N/A
Spud Date:2/14/1974Spud Date Is:ACTUAL
Measured TD:7908 ft.Measured PB depth:7901 ft.
True Vertical TD:True Vertical PB depth:
Log Types:
Log Types:SP-IES, FDC-GR-CALIPER, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 229 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 229 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7775 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6970 ft., Bottom: 7775 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 732 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 260 ft., Bottom: 745 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 732 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 260 ft., Bottom: 745 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 6405 ft., Depth: 6950 ft., Bottom: 6950 ft., Sacks: 161, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE550 ft.
SUSSEX4310 ft.
SHANNON4982 ft.
NIOBRARA6880 ft.
CODELL7174 ft.
MUDDY J7624 ft.
DAKOTA7819 ft.

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 3/16/2016                 Interval Top: 7819 ft.

 Completed Information for Formation DAKOTA
1st Production Date:11/1/1998Choke Size:
Formation Name:DAKOTACommingled:Yes
Production Method:FLOWING
Open Hole Completion:Yes
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DKTA.
No Perforation Data was found for formation DKTA.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 3/16/2016                 Interval Top: 7624 ft.    Interval Bottom: 7666 ft.

 Completed Information for Formation J SAND
1st Production Date:3/24/1974Choke Size:0.500 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/1/1998
Treatment Summary:177,996 GALS 66,000# 100 MESH SAND 184,800# 20/40 SAND 25,500# 10/20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/2/1974Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 33
MCF_GAS 1212
Perforation Data:
Interval Top:7624 ft.# Of Holes:
Interval Bottom:7666 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  AB - 3/16/2016                 Interval Top: 7174 ft.    Interval Bottom: 7186 ft.

 Completed Information for Formation CODELL
1st Production Date:3/8/1996Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/1/1998
Treatment Summary:DIVERTAFRAC: PUMPED 72 BBLS OF POLYMER GEL AND 212 BBLS OF GEL WITH 4,500 LBS OF 20/40 SAND. FLUSHED WITH 103 BBLS OF 2% KCL. CODELL FRAC: PUMPED 363 BBLS OF GEL AND 853 BBLS OF GEL WITH 150,000 LBS OF 20/40 SAND. FLUSH WITH 29 BBLS OF 2% KCL. MAX PSI: 6750, MAX RATE: 16.9
Tubing Size:2.375 in.Tubing Setting Depth:7164 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/1996Test Method:FLOWING
Hours Tested:2Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 40
CALC_GOR 2450
CASING_PRESS 1407
MCF_GAS 98
TUBING_PRESS 1176
Perforation Data:
Interval Top:7174 ft.# Of Holes:48
Interval Bottom:7186 ft.Hole Size:0.38 in.

Formation DKJCD                   Formation Classification:  GW                   Status:  CM - 3/16/2016                 Interval Top: 7174 ft.    Interval Bottom: 7666 ft.

 Completed Information for Formation DAKOTA-J-CODELL
1st Production Date:11/1/1998Choke Size:0.281 in.
Formation Name:DAKOTA-J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:Yes
Formation Treatment
Treatment Date:11/1/1998
Treatment Summary:DEEPENED TO DAKOTA AND COMMINGLED WITH J-CDL
Tubing Size:2.375 in.Tubing Setting Depth:7735 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/14/1998Test Method:FLOWING
Hours Tested:22Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 60
CALC_BBLS_OIL 65
CALC_GOR 25800
CALC_MCF_GAS 1689
CASING_PRESS 1140
GRAVITY_OIL 60
MCF_GAS 1548
TUBING_PRESS 1060
Perforation Data:
Interval Top:7174 ft.# Of Holes:82
Interval Bottom:7666 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 3/16/2016                 Interval Top: 7174 ft.    Interval Bottom: 7666 ft.

 Completed Information for Formation J-CODELL
1st Production Date:1/16/1997Choke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:7626 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/16/1997Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
MCF_GAS 30
Perforation Data:
Interval Top:7174 ft.# Of Holes:82
Interval Bottom:7666 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/16/2016
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
