COGIS - WELL SCOUT CARD

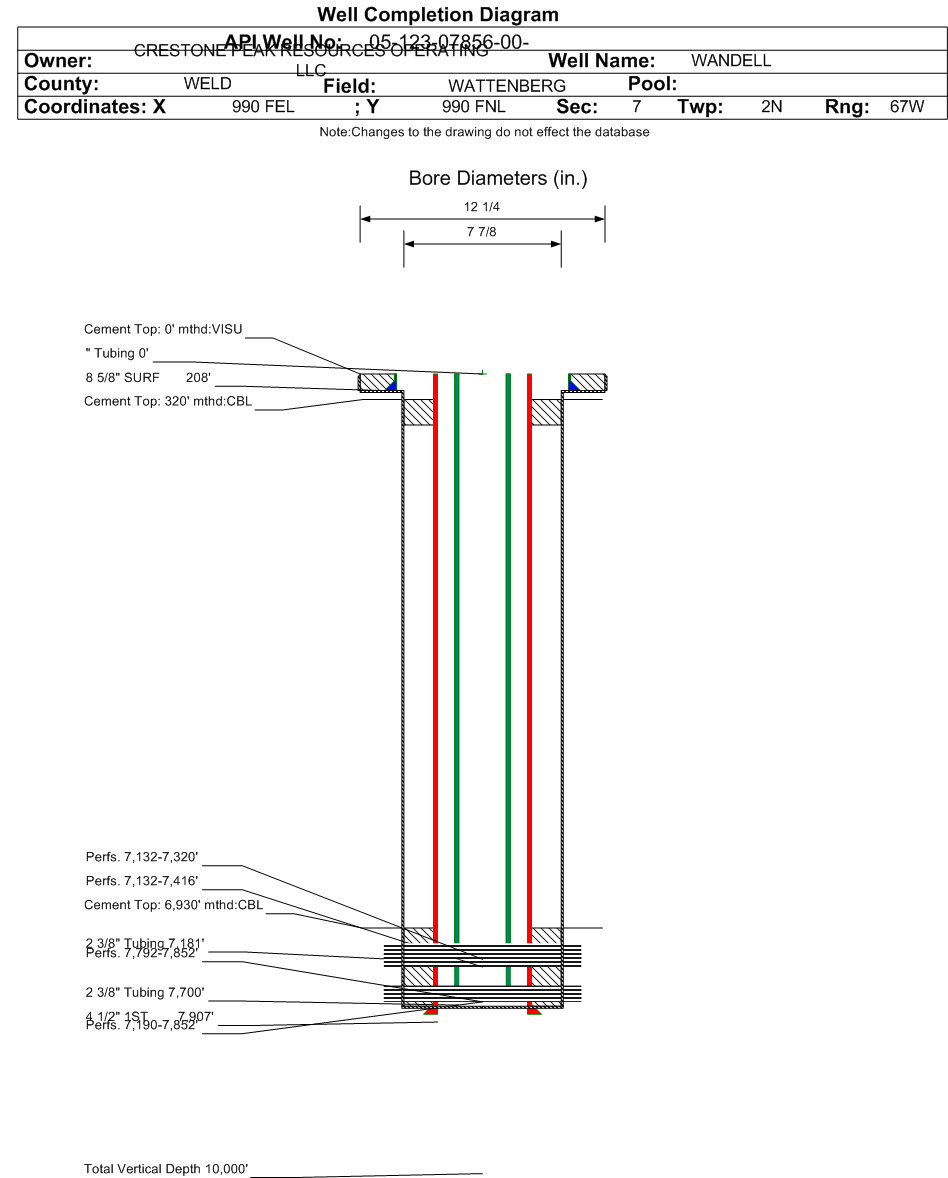

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07856		Well Classification: OW Status: PA - 9/24/2019
Well Name/No:WANDELL #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/24/2019
FacilityID:240068LocationID:336439
Municipality/County:FIRESTONE / WELD #123Location:NENE 7 2N67W 6
Field:WATTENBERG - #90750Elevation:4890 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FNL  990 FELLat/Long: 40.157566 / -104.927604Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.157673 / -104.927337Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 9/24/2019             Measured TD: 7911 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 9/24/2019
Wellbore PermitDRIFTED
Permit #:19730702 Expiration Date:8/29/1974
Proposed Depth/Form:7911 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:11/8/1973
Spud Date:9/5/1973Spud Date Is:ACTUAL
Measured TD:7911 ft.Measured PB depth:7871 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES, FDC-GR & CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 208 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 0 ft., Bottom: 208 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7907 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 6930 ft., Bottom: 7907 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 692 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 320 ft., Bottom: 640 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4210 ft.
SHANNON4776 ft.
NIOBRARA7100 ft.
CARLILE7414 ft.
GREENHORN7464 ft.
BENTONITE7650 ft.
D SAND7768 ft.
J SAND7800 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 9/24/2019                 Interval Top: 7792 ft.    Interval Bottom: 7852 ft.

 Completed Information for Formation J SAND
1st Production Date:11/11/1973Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/8/1973
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 38
BBLS_OIL 18
CALC_BBLS_H2O 38
CALC_BBLS_OIL 18
CALC_GOR 135000
CALC_MCF_GAS 1250
CASING_PRESS 670
MCF_GAS 1250
TUBING_PRESS 170
Perforation Data:
Interval Top:7792 ft.# Of Holes:7
Interval Bottom:7852 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 11/6/2003                 Interval Top: 7190 ft.    Interval Bottom: 7852 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:10/29/1995Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/8/1973
Treatment Summary:DRILL DIBP. RIH W/TBG. TAGGED CIBP TO 7836'. DRILL AND PUSH CIBP TO 7848'. POOH W/TBG LAND TBG @ 7767'. RAN BROACH TO PSN. SWAB. TURN WELL OVER TO PRODUCTION.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/6/2003Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 10
CALC_BBLS_H2O 5
CALC_BBLS_OIL 10
CALC_GOR 7800
CALC_MCF_GAS 78
CASING_PRESS 640
MCF_GAS 78
TUBING_PRESS 400
Perforation Data:
Interval Top:7190 ft.# Of Holes:20
Interval Bottom:7852 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 9/24/2019                 Interval Top: 7132 ft.    Interval Bottom: 7416 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:3/26/2010
Treatment Summary:ADDED PERFS TO CODELL @ 7392-7416', 2 SPF, 48 SHOTS; NIOBRARA - FRAC'D WITH 142,044 GAL FRAC FLUID CONTAINING 250,600 # SAND; CODELL - FRAC'D WITH 115,962 GAL FRAC FLUID CONTAINING 250,100 # SAND.
Formation Treatment
Treatment Date:11/8/1973
Treatment Summary:SEE SCAN DOCUMENT
Tubing Size:2.375 in.Tubing Setting Depth:7700 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/27/2010Test Method:FLOWING
Hours Tested:14Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 14
BTU_GAS 1328
CALC_BBLS_H2O 24
CALC_BBLS_OIL 24
CALC_GOR 15000
CALC_MCF_GAS 360
CASING_PRESS 571
GRAVITY_OIL 56
MCF_GAS 210
TUBING_PRESS 180
Perforation Data:
Interval Top:7132 ft.# Of Holes:131
Interval Bottom:7416 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 6/9/2003                  Interval Top: 7132 ft.    Interval Bottom: 7320 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:NIOBRARACommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/8/1973
Treatment Summary:SET CIBP @ 7370'. RIH W/PLUG&PKR. SET PLUG&PKR. POOH W/TBG. LD PLUG&PKR. PERF THE NIOBRAR FROM 7280'-7320',7312'-7175' W/SPF. FRAC'D W,/240,396 GAL SLICK WATER CONTAINING 100,400# 20/40 SAND. FLOW BACK FRAC. RIH W/TBG. LAND TBG. SWAB
Tubing Size:2.375 in.Tubing Setting Depth:7181 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/9/2003Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 15
CALC_BBLS_H2O 20
CALC_BBLS_OIL 15
CALC_GOR 44667
CALC_MCF_GAS 670
CASING_PRESS 520
MCF_GAS 670
TUBING_PRESS 300
Perforation Data:
Interval Top:7132 ft.# Of Holes:83
Interval Bottom:7320 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/24/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
