COGIS - WELL SCOUT CARD

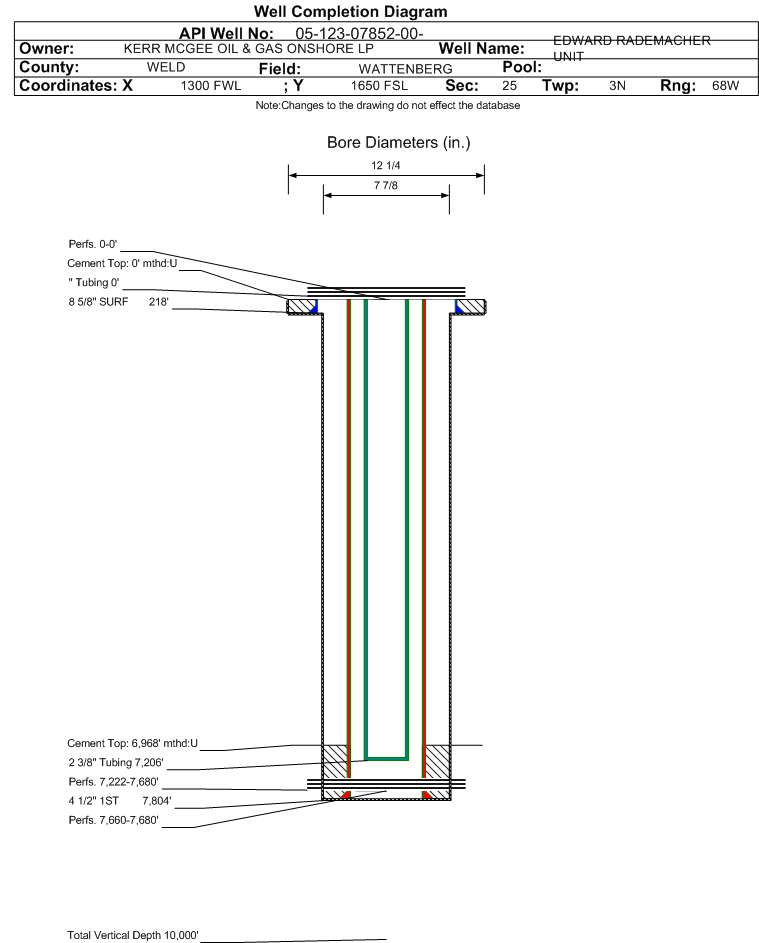

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07852		Well Classification: GW Status: PA - 11/21/2014
Well Name/No:EDWARD RADEMACHER UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/21/2014
FacilityID:240064LocationID:336062
Municipality/County:FIRESTONE / WELD #123Location:NWSW 25 3N68W 6
Field:WATTENBERG - #90750Elevation:4911 ft.
Planned Location:1650FSL  1300 FWLLat/Long: 40.194366 / -104.956126Lat/Long Source: Calculated From Footages
As Drilled Location:1594 FSL  1282 FWLLat/Long: 40.194220 / -104.956030Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/21/2014             Measured TD: 7803 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/21/2014
Wellbore Permit
Permit #:19730694 Expiration Date:3/20/1996
Proposed Depth/Form:7840 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: J-CDL , Formation: J-CODELL , Order: , Unit Acreage: 320, Drill Unit:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:8/8/1974
Spud Date:6/11/1974Spud Date Is:ACTUAL
Measured TD:7803 ft.Measured PB depth:7760 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR CALIPER LOG, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 218 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 218 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7804 ft., Weight: 10.5/11.6, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6968 ft., Bottom: 7803 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4050 ft.4300 ft.NN
SHANNON4360 ft.5374 ft.NN
NIOBRARA6960 ft.7200 ft.NN
CODELL7222 ft.7244 ft.NN
MUDDY J7648 ft.7680 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/21/2014                Interval Top: 7660 ft.    Interval Bottom: 7680 ft.

 Completed Information for Formation J SAND
1st Production Date:1/5/1975Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/18/2011
Treatment Summary:REMOVED SAND PLUG @ 7520' ABOVE JSND
Formation Treatment
Treatment Date:2/22/2006
Treatment Summary:SAND PLUG ACROSS J SAND FOR REFRAC OF CODELL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 9
BBLS_OIL 19
CALC_BBLS_H2O 9
CALC_BBLS_OIL 19
CALC_GOR 83368.4
CALC_MCF_GAS 1584
MCF_GAS 1584
Perforation Data:
Interval Top:7660 ft.# Of Holes:20
Interval Bottom:7680 ft.Hole Size:0.41 in.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 11/21/2014                Interval Top: 7222 ft.

 Completed Information for Formation CODELL
1st Production Date:3/7/2006Choke Size:0.344 in.
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/27/2006
Treatment Summary:121,427 GALS FLUID & 262,940 LBS 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:7206 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/3/2006Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 4
CALC_BBLS_H2O 0
CALC_BBLS_OIL 4
CALC_GOR 16750
CALC_MCF_GAS 67
CASING_PRESS 571
GRAVITY_OIL 50
MCF_GAS 67
TUBING_PRESS 542
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 11/21/2014                Interval Top: 7222 ft.    Interval Bottom: 7680 ft.

 Completed Information for Formation J-CODELL
1st Production Date:12/10/1996Choke Size:
Formation Name:J-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:3/18/2011
Treatment Summary:REMOVED CIBP ABOVE JSND. RETURNED DOWNLINE WITH CD ON 3/28/2011
Formation Treatment
Treatment Date:8/8/1974
Treatment Summary:DIVERTAFRAC PUMPED 71 BBLS OF POLYMER GEL AND 214 BBLS OF FEL WITH 4,500# 20/40 SAND. FLUSHED WITH 103 BBLS OF GEL.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/17/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 9
BTU_GAS 1246
CALC_BBLS_H2O 1
CALC_BBLS_OIL 9
CALC_MCF_GAS 11
CASING_PRESS 592
GRAVITY_OIL 50
MCF_GAS 11
Perforation Data:
Interval Top:7222 ft.# Of Holes:108
Interval Bottom:7680 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/21/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
