COGIS - WELL SCOUT CARD

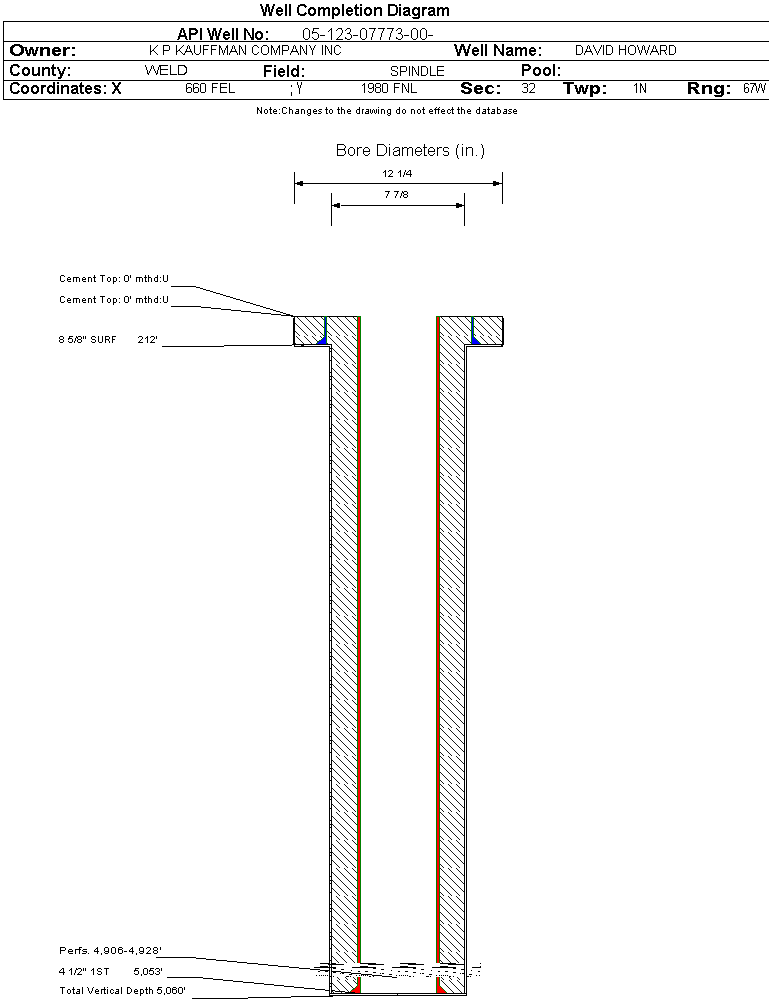

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07773		Well Classification: OW Status: SI - 1/1/2025
Well Name/No:DAVID HOWARD #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date1/1/2025
FacilityID:239985LocationID:317796
County:WELD #123Location:SENE 32 1N67W 6
Field:SPINDLE - #77900Elevation:5046 ft.
Planned Location:1980FNL  660 FELLat/Long: 40.009338 / -104.907223Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.009590 / -104.907250Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 1/1/2025             Measured TD: 5060 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 1/1/2025
Wellbore Permit
Permit #:19730493 Expiration Date:11/13/1973
Proposed Depth/Form:5010 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: S2NE
Wellbore Completed
Completion Date:8/17/1973
Spud Date:7/23/1973Spud Date Is:ACTUAL
Measured TD:5060 ft.Measured PB depth:5010 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES, FDC-DENSITY-GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 212 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5053 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4905 ft.

Formation SUSX                     Formation Classification:  OW                     Status:  SI - 12/1/2024                 Interval Top: 4906 ft.    Interval Bottom: 4928 ft.

 Completed Information for Formation SUSSEX
1st Production Date:8/10/1973Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:8/17/1973
Treatment Summary:41,500 GALS 86,000# 20/40 & 10/20 SAND 1,000# GLASS BEADS
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/17/1973Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 22
BBLS_OIL 210
GRAVITY_OIL 42.9
MCF_GAS 274
Perforation Data:
Interval Top:4906 ft.# Of Holes:
Interval Bottom:4928 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
01/2024 - 12/2024

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2024 - December 2024i
Total Oil Produced (Barrels)3
Total Gas Produced (MCF)96
GOR32000
GOR DeterminationMCFE
Average BOE per Day0.054
Average MCFE per Day0.307

 Federal Financial Assurance  i

 Tribal Well  i No
