COGIS - WELL SCOUT CARD

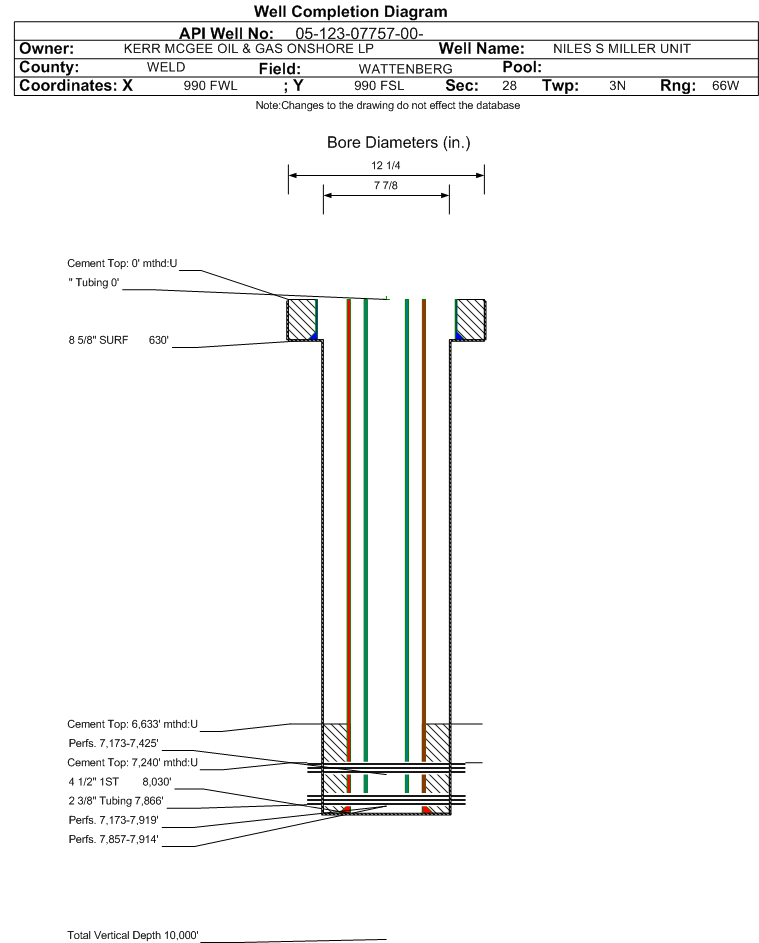

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07757		Well Classification: GW Status: PA - 11/22/2016
Well Name/No:NILES S MILLER UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/22/2016
FacilityID:239969LocationID:317787
County:WELD #123Location:SWSW 28 3N66W 6
Field:WATTENBERG - #90750Elevation:4945 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FSL  990 FWLLat/Long: 40.191407 / -104.787880Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.191370 / -104.788010Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/22/2016             Measured TD: 8030 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/22/2016
Wellbore Permit
Permit #:19730462 Expiration Date:9/18/1997
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: W2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-66 , Unit Acreage: 80, Drill Unit: W2SW
Wellbore Completed
Completion Date:11/5/1973
Spud Date:8/9/1973Spud Date Is:ACTUAL
Measured TD:8030 ft.Measured PB depth:7967 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, FDC-GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 630 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 630 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8030 ft., Weight: 10.5/11.6, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7240 ft., Bottom: 8030 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 8030 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 120, Top: 6633 ft., Bottom: 7240 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
J SAND7854 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/22/2016                Interval Top: 7857 ft.    Interval Bottom: 7914 ft.

 Completed Information for Formation J SAND
1st Production Date:10/30/1973Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/2/2010
Treatment Summary:SET CIBP @ 7535 W/ 2 SACKS OF CEMENT FOR MECHANICAL INTEGRITY.
Formation Treatment
Treatment Date:11/5/1973
Treatment Summary:7857-7919' 183,330 GALS; 201,600# 100 MESH SAND; 50,400# 20/40 SAND; 16,300# 10/20 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 54
CALC_GOR 25814
CALC_MCF_GAS 1394
MCF_GAS 1394
Perforation Data:
Interval Top:7857 ft.# Of Holes:80
Interval Bottom:7914 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 2/12/1998                 Interval Top: 7173 ft.    Interval Bottom: 7919 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:6/23/1997Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/5/1973
Treatment Summary:COMMINGLED
Tubing Size:2.375 in.Tubing Setting Depth:7866 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/23/1997Test Method:FLOWING
Hours Tested:48Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 2
CALC_GOR 10000
MCF_GAS 20
Perforation Data:
Interval Top:7173 ft.# Of Holes:256
Interval Bottom:7919 ft.Hole Size:

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 11/22/2016                Interval Top: 7173 ft.    Interval Bottom: 7425 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:1/16/1997Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/8/2010
Treatment Summary:NBRR PERF 7173-7286 HOLES 116 SIZE 0.38. CODL PERF 7410-7425 HOLES 60 SIZE 0.38. REFRAC NBRR W/ 500 GAL 15% HCL AND 172561 GAL VISTAR HYBRID AND 250060# 20/40 SAND AND 4040# SB EXCEL. REFRAC CODL W/ 117247 GAL VISTAR AND 261300# 20/40 SAND AND 4100# SB EXCEL.
Formation Treatment
Treatment Date:11/5/1973
Treatment Summary:NB-CD FRAC: PUMPED 643 BBLS POLYMER GEL & 1,963 BBLS OF GEL W/400,000# 20/40 SAND. FLUSHED W/43 BBLS OF 2% KCL. MAX PSI: 6,450 PSI MAX RATE: 25.4 BPM.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/26/2010Test Method:FLOWING
Hours Tested:Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 50
BBLS_OIL 48
BTU_GAS 1223
CALC_BBLS_H2O 50
CALC_BBLS_OIL 30
CALC_GOR 1933
CALC_MCF_GAS 58
CASING_PRESS 1350
GRAVITY_OIL 50
MCF_GAS 208
Perforation Data:
Interval Top:7173 ft.# Of Holes:176
Interval Bottom:7425 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/22/2016
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
