COGIS - WELL SCOUT CARD

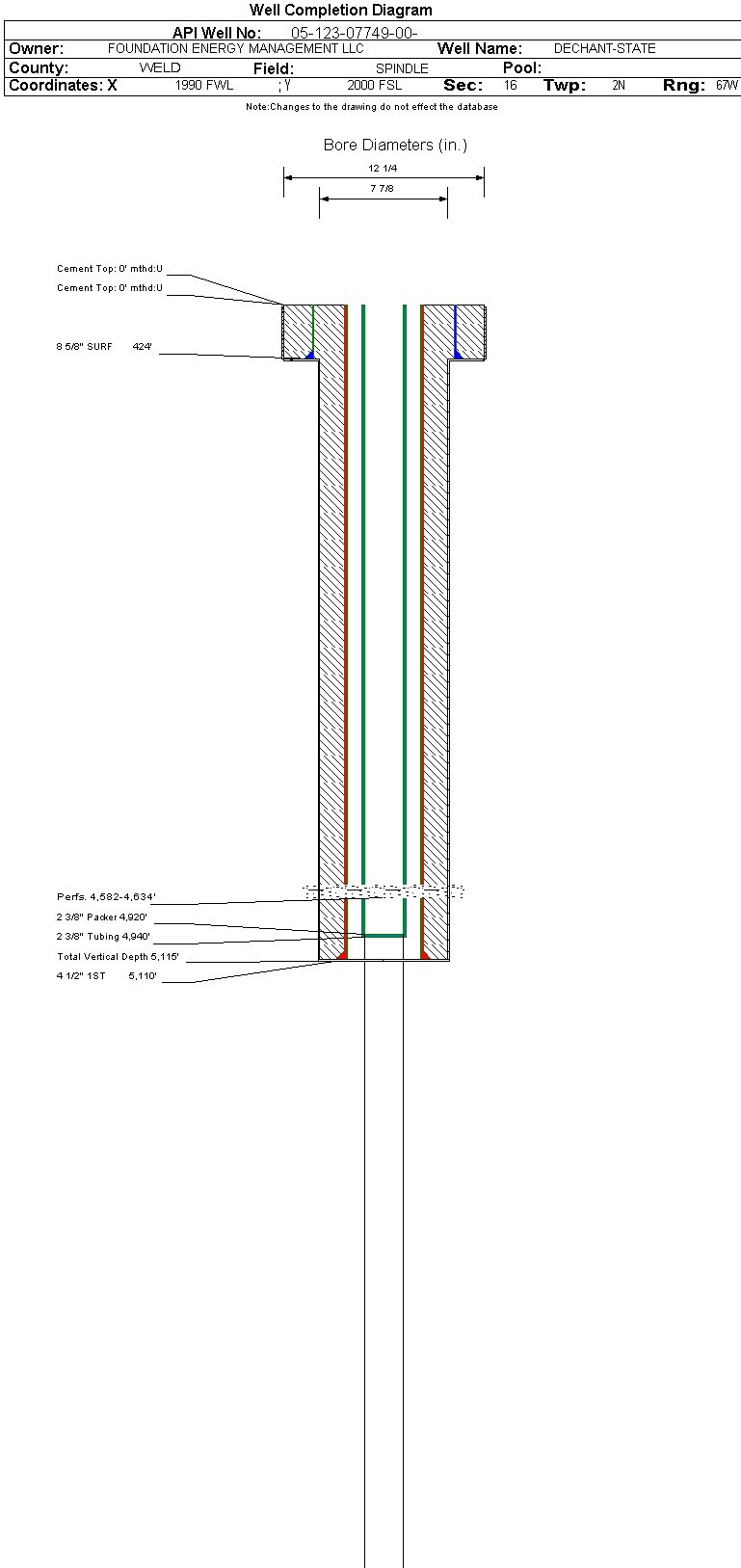

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07749		Well Classification: GW Status: SI - 1/1/2025
Well Name/No:DECHANT-STATE #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date1/1/2025
FacilityID:239961LocationID:317781
County:WELD #123Location:NESW 16 2N67W 6
Field:SPINDLE - #77900Elevation:4998 ft.
Planned Location:2000FSL  1990 FWLLat/Long: 40.136517 / -104.898093Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.136690 / -104.898010Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 1/1/2025             Measured TD: 5115 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 1/1/2025
Wellbore Permit
Permit #:19730448 Expiration Date:6/29/1974
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Wellbore Completed
Completion Date:7/1/1974
Spud Date:7/2/1973Spud Date Is:ACTUAL
Measured TD:5115 ft.Measured PB depth:5075 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, FDC-GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 424 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 5110 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SHANNON5018 ft.NN

Formation SX-SN                   Formation Classification:  GW                   Status:  SI - 10/1/2024                 Interval Top: 4582 ft.    Interval Bottom: 4634 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:7/1/1974Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:7/1/1974
Treatment Summary:1820 BBLS CRUDE OIL AND GELLED WATER AND 274,500# SAND FROM 4582'-4634'
Tubing Size:2.375 in.Tubing Setting Depth:4940 ft.
Tubing Packer Depth:4940 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/3/1974Test Method:FLOWING
Hours Tested:48Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 110
CALC_BBLS_H2O 7.5
CALC_BBLS_OIL 55
CALC_GOR 21.7
CALC_MCF_GAS 1194
CASING_PRESS 850
GRAVITY_OIL 40
MCF_GAS 2388
TUBING_PRESS 694
Perforation Data:
Interval Top:4582 ft.# Of Holes:37
Interval Bottom:4634 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)36
Total Gas Produced (MCF)2
GOR55
GOR DeterminationBOE
Average BOE per Day0.100
Average MCFE per Day0.584

 Federal Financial Assurance  i

 Tribal Well  i No
