COGIS - WELL SCOUT CARD

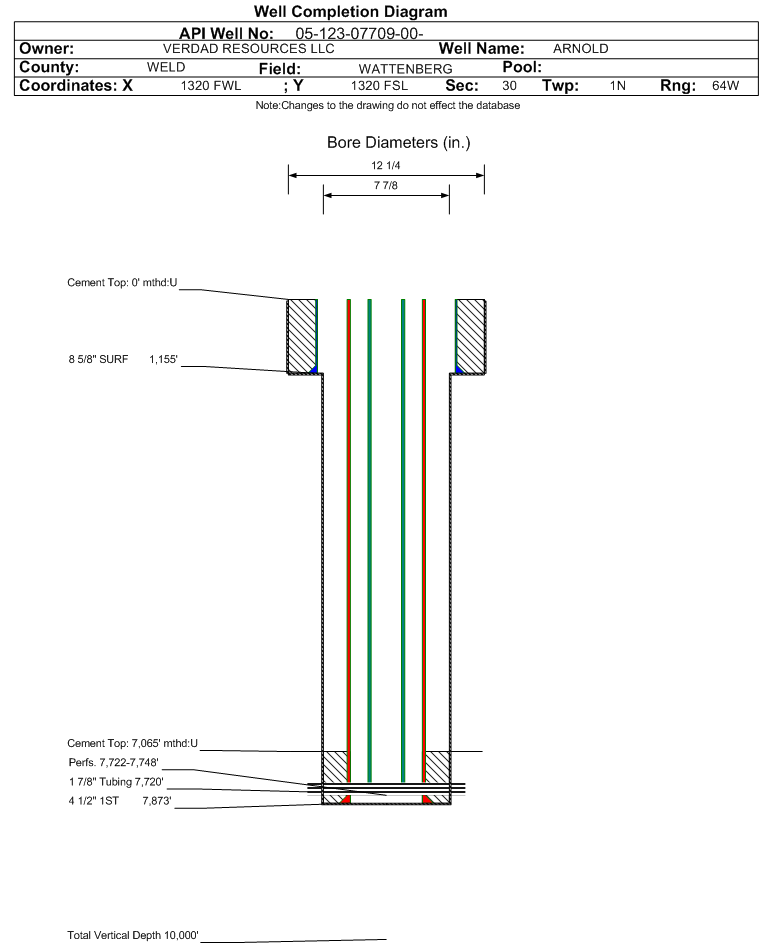

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07709		Well Classification: GW Status: PA - 8/27/2018
Well Name/No:ARNOLD #31
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:VERDAD RESOURCES LLC - 10651
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/27/2018
FacilityID:239921LocationID:317753
County:WELD #123Location:CSW 30 1N64W 6
Field:WATTENBERG - #90750Elevation:5021 ft.
Planned Location:1320FSL  1320 FWLLat/Long: 40.018620 / -104.598323Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.018708 / -104.598238Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 8/27/2018             Measured TD: 7875 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 8/27/2018
Wellbore Permit
Permit #:19730312 Expiration Date:9/22/1973
Proposed Depth/Form:7900 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-3 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:9/25/1973
Spud Date:5/25/1973Spud Date Is:ACTUAL
Measured TD:7875 ft.Measured PB depth:7839 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DENSITY-GR-CALIPER-IES
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1155 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 720, Top: 0 ft., Bottom: 1155 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7873 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7065 ft., Bottom: 7873 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SUSSEX4542 ft.
D SAND7660 ft.
J SAND7721 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 8/27/2018                 Interval Top: 7722 ft.    Interval Bottom: 7748 ft.

 Completed Information for Formation J SAND
1st Production Date:9/1/1973Choke Size:0.187 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/25/1973
Treatment Summary:1166 BBL CONDENSATE & 440BBL WATER W/48900# SD.
Tubing Size:1.9 in.Tubing Setting Depth:7720 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/25/1973Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 6
CALC_GOR 22166
CASING_PRESS 475
GRAVITY_OIL 61
MCF_GAS 133
TUBING_PRESS 125
Perforation Data:
Interval Top:7722 ft.# Of Holes:30
Interval Bottom:7748 ft.Hole Size:0.31 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/27/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
