COGIS - WELL SCOUT CARD

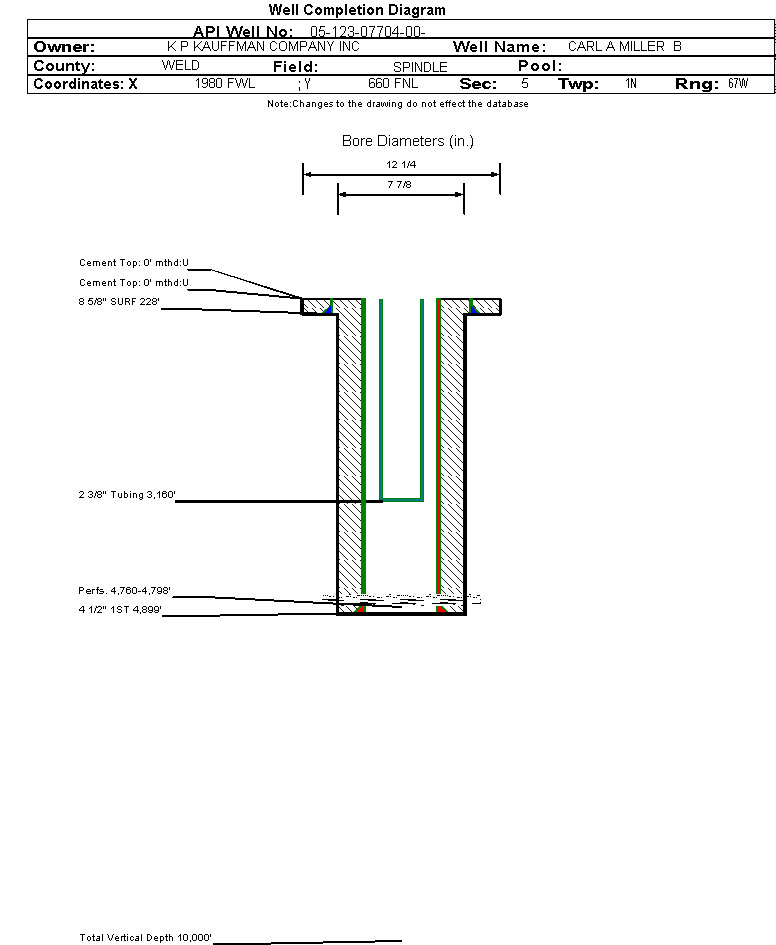

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07704		Well Classification: OW Status: PR - 4/1/2025
Well Name/No:CARL A MILLER B #5
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/1/2025
FacilityID:239916LocationID:317751
County:WELD #123Location:NENW 5 1N67W 6
Field:SPINDLE - #77900Elevation:5074 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  1980 FWLLat/Long: 40.085707 / -104.917124Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.085880 / -104.917130Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 4/1/2025             Measured TD: 4900 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 4/1/2025
Wellbore Permit
Permit #:19730281 Expiration Date:9/8/1973
Proposed Depth/Form:4855 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: N2NW
Wellbore Completed
Completion Date:7/6/1973
Spud Date:5/22/1973Spud Date Is:ACTUAL
Measured TD:4900 ft.Measured PB depth:4863 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES, FDC DENSITY-GR-CALIPER GR COLLAR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 228 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4899 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4734 ft.NN

Formation SUSX                     Formation Classification:  OW                     Status:  PR - 4/1/2025                  Interval Top: 4760 ft.    Interval Bottom: 4798 ft.

 Completed Information for Formation SUSSEX
1st Production Date:6/19/1973Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/6/1973
Treatment Summary:SUPEREMULSIFRAC'D X 81,000# 20/40 SN, 54,000# 10/20 SN X 2000# 8/12 BEADS
Tubing Size:2.375 in.Tubing Setting Depth:3160 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/6/1973Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 82
CALC_GOR 5439
GRAVITY_OIL 45.3
MCF_GAS 446
Perforation Data:
Interval Top:4760 ft.# Of Holes:
Interval Bottom:4798 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
07/2024 - 06/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)137
GOR
GOR DeterminationMCFE
Average BOE per Day0.065
Average MCFE per Day0.373

 Federal Financial Assurance  i

 Tribal Well  i No
