COGIS - WELL SCOUT CARD

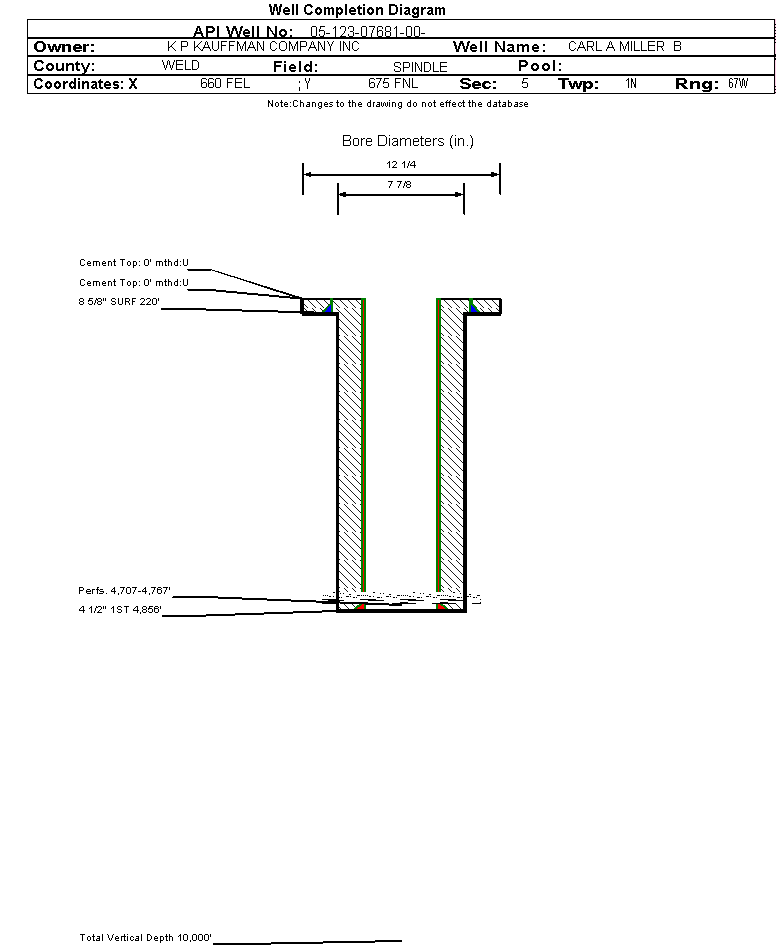

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07681		Well Classification: OW Status: PR - 7/1/2023
Well Name/No:CARL A MILLER B #4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2023
FacilityID:239893LocationID:336099
County:WELD #123Location:NENE 5 1N67W 6
Field:SPINDLE - #77900Elevation:5050 ft.
Planned Location:675FNL  660 FELLat/Long: 40.085647 / -104.907673Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.085720 / -104.907640Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 7/1/2023             Measured TD: 4860 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 7/1/2023
Wellbore Permit
Permit #:19730172 Expiration Date:7/21/1973
Proposed Depth/Form:4842 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: N2NE
Wellbore Completed
Completion Date:5/8/1973
Spud Date:4/6/1973Spud Date Is:ACTUAL
Measured TD:4860 ft.Measured PB depth:4828 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:GR COLLAR CORR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 220 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4856 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4706 ft.NN

Formation SUSX                     Formation Classification:  OW                     Status:  PR - 7/1/2023                  Interval Top: 4707 ft.    Interval Bottom: 4767 ft.

 Completed Information for Formation SUSSEX
1st Production Date:4/28/1973Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:5/8/1973
Treatment Summary:SUPEREMULSIFRAC'D X 81,000# 20/40 SN, 54,000# 10/20 SN X 2,000# 8/12 BEADS
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/8/1973Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 130
CALC_GOR 2107
GRAVITY_OIL 43.1
MCF_GAS 274
Perforation Data:
Interval Top:4707 ft.# Of Holes:
Interval Bottom:4767 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)101
Total Gas Produced (MCF)167
GOR1653
GOR DeterminationBOE
Average BOE per Day0.352
Average MCFE per Day2.053

 Federal Financial Assurance  i

 Tribal Well  i No
