COGIS - WELL SCOUT CARD

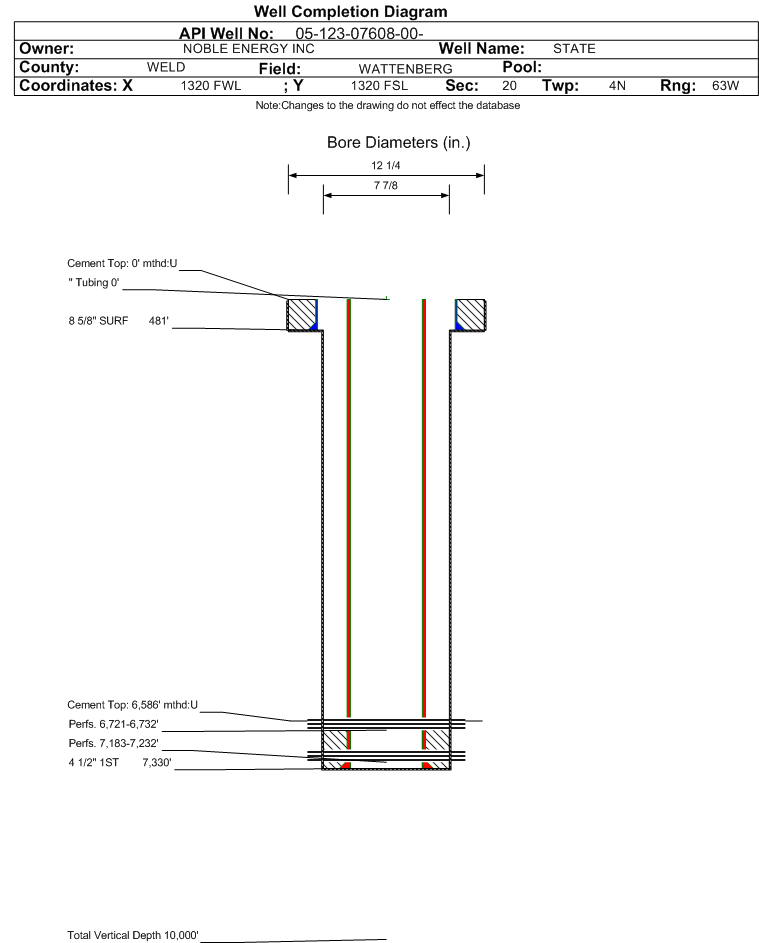

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07608		Well Classification: OW Status: PA - 7/15/2020
Well Name/No:STATE #11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:NOBLE ENERGY INC - 100322
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/15/2020
FacilityID:239820LocationID:317705
County:WELD #123Location:CSW 20 4N63W 6
Field:WATTENBERG - #90750Elevation:4763 ft.
Planned Location:1320FSL  1320 FWLLat/Long: 40.294137 / -104.466581Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.293420 / -104.466450Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/15/2020             Measured TD: 7334 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/15/2020
Wellbore Permit
Permit #:19720992 Expiration Date:11/30/1973
Proposed Depth/Form:7334 ft.
Surface Mineral Owner Same:No
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 316 , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-3 , Unit Acreage: 320, Drill Unit:
Wellbore Completed
Completion Date:12/26/1997
Spud Date:1/5/1973Spud Date Is:ACTUAL
Measured TD:7334 ft.Measured PB depth:7294 ft.
True Vertical TD:True Vertical PB depth:
Log Types:I.E.S. & G.R.-DENSITY-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 481 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 475, Top: 0 ft., Bottom: 481 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7330 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 175, Top: 6586 ft., Bottom: 7330 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4320 ft.NN
NIOBRARA6450 ft.NN
D SAND7145 ft.NN
J SAND7190 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 7/15/2020                 Interval Top: 7183 ft.    Interval Bottom: 7232 ft.

 Completed Information for Formation J SAND
1st Production Date:1/20/1973Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/26/1997
Treatment Summary:1,098 BBLS CONDENSATE & 40,250# SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 0
CALC_BBLS_H2O 10
CALC_BBLS_OIL 0
CALC_MCF_GAS 94.5
CASING_PRESS 375
MCF_GAS 94.5
TUBING_PRESS 75
Perforation Data:
Interval Top:7183 ft.# Of Holes:39
Interval Bottom:7232 ft.Hole Size:0.31 in.

Formation CODL                     Formation Classification:  OW                     Status:  AB - 7/15/2020                 Interval Top: 6721 ft.    Interval Bottom: 6732 ft.

 Completed Information for Formation CODELL
1st Production Date:12/1/1997Choke Size:
Formation Name:CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/26/1997
Treatment Summary:250,600# 20-40 SAND; 2,171 BBLS FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 25
CALC_BBLS_H2O 2
CALC_BBLS_OIL 25
CALC_GOR 2000
CALC_MCF_GAS 50
CASING_PRESS 450
MCF_GAS 50
TUBING_PRESS 450
Perforation Data:
Interval Top:6721 ft.# Of Holes:23
Interval Bottom:6732 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/15/2020
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
