COGIS - WELL SCOUT CARD

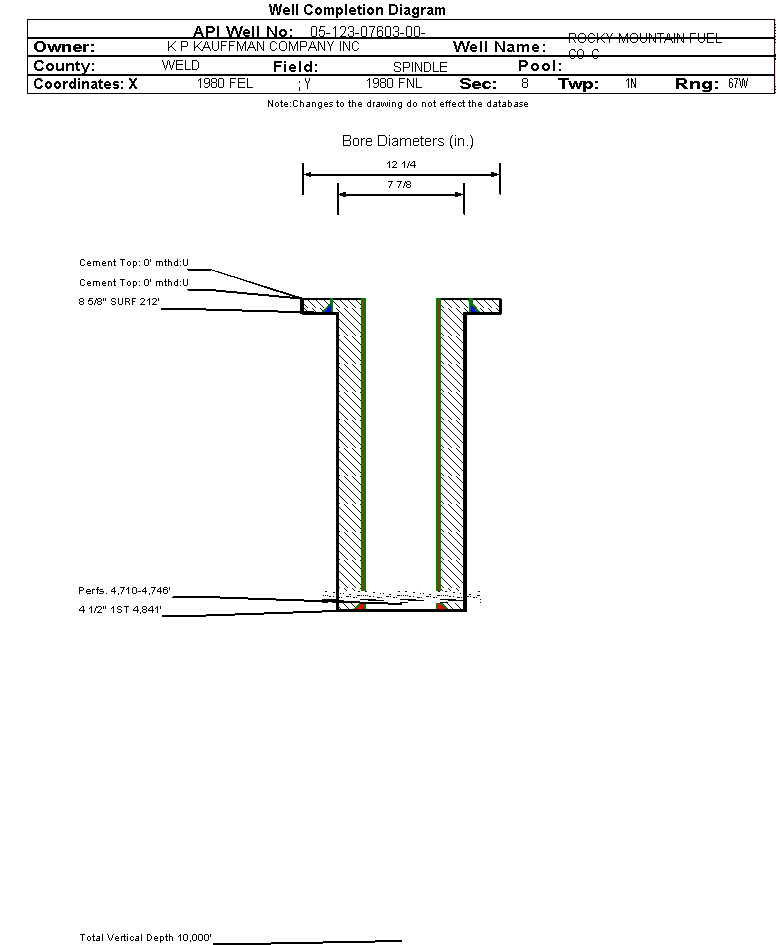

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07603		Well Classification: GW Status: PR - 8/1/2025
Well Name/No:ROCKY MOUNTAIN FUEL CO C #3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2025
FacilityID:239815LocationID:317701
County:WELD #123Location:SWNE 8 1N67W 6
Field:SPINDLE - #77900Elevation:5009 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  1980 FELLat/Long: 40.067278 / -104.912213Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.067548 / -104.911954Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2025             Measured TD: 4841 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2025
Wellbore Permit
Permit #:19720965 Expiration Date:3/20/1973
Proposed Depth/Form:4807 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: W2NE
Wellbore Completed
Completion Date:12/21/1972
Spud Date:11/18/1972Spud Date Is:ACTUAL
Measured TD:4841 ft.Measured PB depth:4795 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES, FDC-DENSITY-GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 212 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4841 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4678 ft.YN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 8/1/2025                  Interval Top: 4710 ft.    Interval Bottom: 4746 ft.

 Completed Information for Formation SUSSEX
1st Production Date:12/15/1972Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:12/21/1972
Treatment Summary:FRAC'D X 20,000# 10/20 SN 10,000# 8/12 SN 3000# 6/8 SN
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/21/1972Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 42
CALC_GOR 1269
GRAVITY_OIL 44.4
MCF_GAS 53.3
Perforation Data:
Interval Top:4710 ft.# Of Holes:
Interval Bottom:4746 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)2
Total Gas Produced (MCF)84
GOR42000
GOR DeterminationMCFE
Average BOE per Day0.047
Average MCFE per Day0.264

 Federal Financial Assurance  i

 Tribal Well  i No
