COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07599		Well Classification: OW Status: SI - 6/1/2024
Well Name/No:GREAT WESTERN SUGAR #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:65421
Facility Status:SIStatus Date6/1/2024
FacilityID:239811LocationID:332616
County:WELD #123Location:NENE 9 4N67W 6
Field:WATTENBERG - #90750Elevation:4769 ft.
Basin:DENVER (DJ) BASIN
Planned Location:600FNL  1320 FELLat/Long: 40.332524 / -104.891445Lat/Long Source: Calculated From Footages
As Drilled Location:658 FNL  1332 FELLat/Long: 40.332530 / -104.891400Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

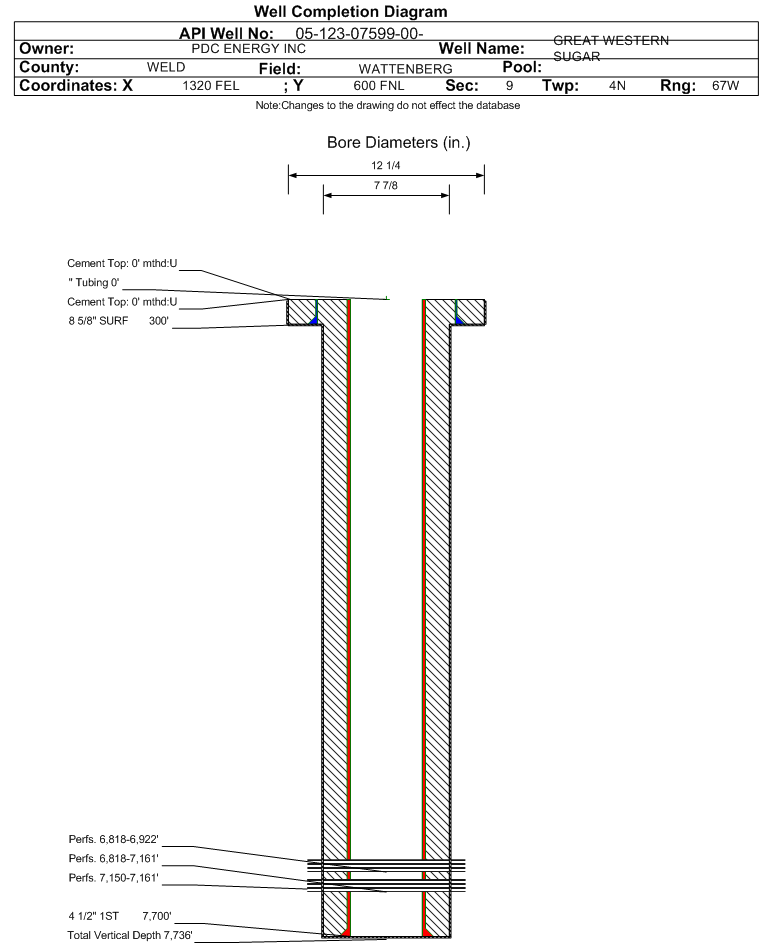

Wellbore #00             Wellbore Classification: OW             Status: SI - 6/1/2024             Measured TD: 7736 ft.    Vertical TD: 7736 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 6/1/2024
Wellbore PermitDRIFTED
Permit #:720955 Expiration Date:2/23/1982
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:12/30/1981
Measured TD:7736 ft.Measured PB depth:7600 ft.
True Vertical TD:7736 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 300 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 300 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7700 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 6700 ft., Bottom: 7700 ft., Determination Method: CBL
Casing:String Type: 1ST LINER, Hole Size: 4.5 in., Size: 2.875 in., Top: 2500 ft., Depth: 6759 ft., Weight: NA , Citings Type: ACTUAL
Cement:Sacks: 195, Top: 2500 ft., Bottom: 6759 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 1255 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: 1255 ft., Determination Method: VISU

Formation CODL                     Formation Classification:  OW                     Status:  CM - 9/20/2017                 Interval Top: 7150 ft.    Interval Bottom: 7161 ft.

 Completed Information for Formation CODELL
1st Production Date:12/30/1981Choke Size:
Formation Name:CODELLCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/16/2006
Treatment Summary:Codell formation was refrac'd by UniOil in 2006. PDS has limited information on this completion job. 106500 gals 26# Vistar crosslinked gel with 192000 lbs 20/40 sand and 8000 lbs 20/40 Super LC resin coated sand.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7150 ft.# Of Holes:22
Interval Bottom:7161 ft.Hole Size:

Formation NB-CD                   Formation Classification:  OW                   Status:  SI - 6/1/2024                  Interval Top: 6818 ft.    Interval Bottom: 7161 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:8/22/2006Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NB-CD.
Perforation Data:
Interval Top:6818 ft.# Of Holes:38
Interval Bottom:7161 ft.Hole Size:

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 9/20/2017                 Interval Top: 6818 ft.    Interval Bottom: 6922 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:8/22/2006Choke Size:
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:8/16/2006
Treatment Summary:Niobrara formation was recompleted by UniOil in 2006. PDS has limited information on this completion job. Nio A perforated from 6818'- 6826' and Nio B perforated from 6914'- 6922'. 1 11/16" guns, 90 degree phasing, 3.3 gram charges
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6818 ft.# Of Holes:16
Interval Bottom:6922 ft.Hole Size:0.37 in.
Primary Well Designation:
Out Of Service      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
03/31/2029
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
05/31/2024
Low ProducingYProduction Period
07/2024 - 06/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
