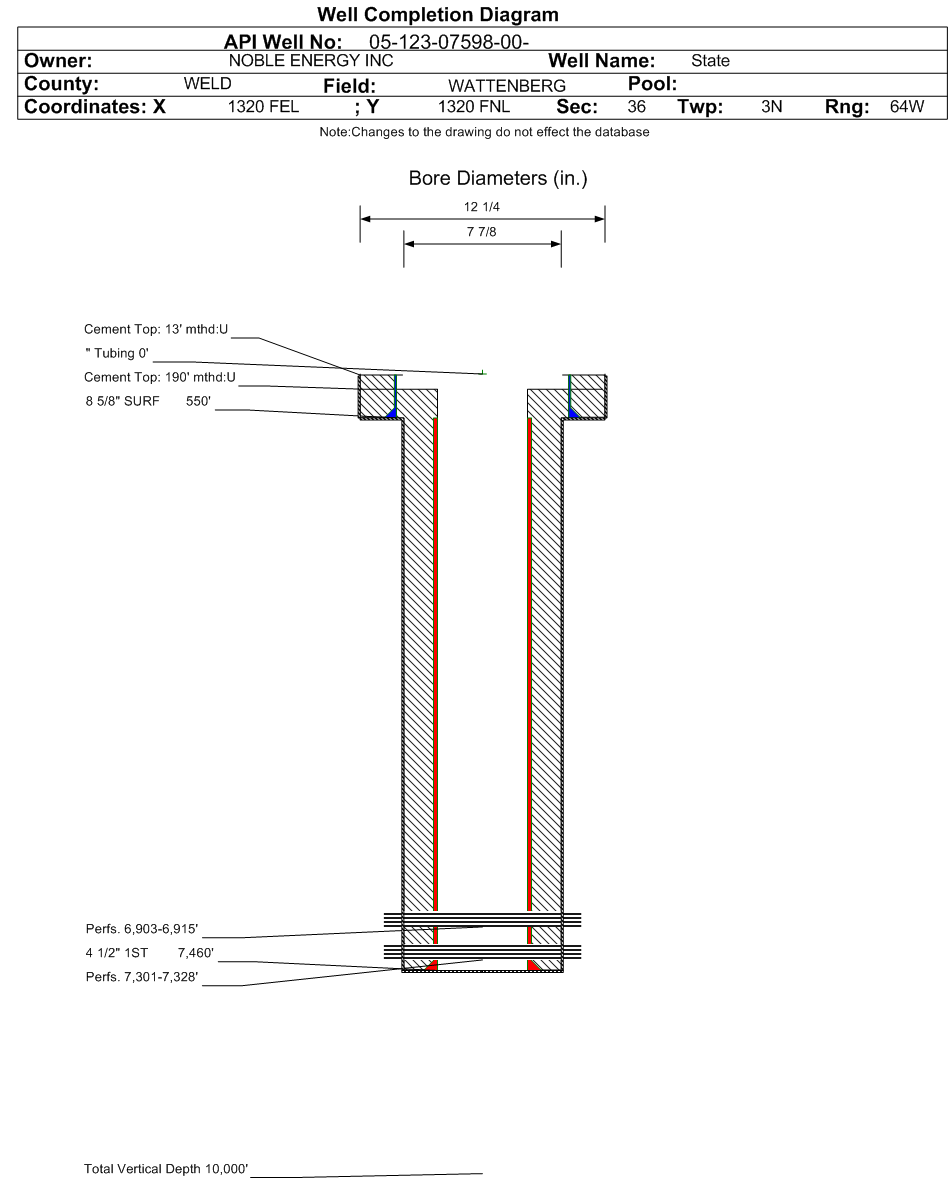

Wellbore #00 Wellbore Classification: OW Status: PA - 8/5/2021 Measured TD: 7460 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 8/5/2021 | | Wellbore Permit | | | Permit #: | | Expiration Date: | 5/1/2014 | | Proposed Depth/Form: | 7460 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-87 , Unit Acreage: 160, Drill Unit: NE/4 | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-3 , Unit Acreage: 320, Drill Unit: E2 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 542 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 270, Top: 0 ft., Bottom: 542 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7455 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 175, Top: 6694 ft., Bottom: 7455 ft. |
| | |
| Wellbore Completed | | Completion Date: | 12/8/1972 | | Spud Date: | 11/22/1972 | Spud Date Is: | ACTUAL | | Measured TD: | 7460 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | CBL | | Log Types: | IES & GR-DENSITY | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 13 ft., Depth: 542 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 420, Top: 0 ft., Bottom: 542 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 550 ft., Depth: 7455 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 175, Top: 6694 ft., Bottom: 7455 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7455 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 5966 ft., Bottom: 6670 ft., Determination Method: CALC | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 7455 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 454, Top: 3800 ft., Bottom: 5014 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.3, Hole Size: , Size: , Top: , Depth: 7455 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 241, Top: 60 ft., Bottom: 1120 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 5966 ft., Depth: 6028 ft., Bottom: 6670 ft., Sacks: 300, Method: SQUEEZE | | Additional Cement: | String Type: 1ST , Top: 190 ft., Depth: 818 ft., Bottom: 1120 ft., Sacks: 241, Method: 1 INCH | | Additional Cement: | String Type: 1ST , Top: 3966 ft., Depth: 5008 ft., Bottom: 5014 ft., Sacks: 454, Method: 1 INCH | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 3651 ft. | | | | | SUSSEX | 4319 ft. | | | | | TEEPEE BUTTES | 5755 ft. | | | | | NIOBRARA | 6614 ft. | | | | | FORT HAYS | 6878 ft. | | | | | CODELL | 6903 ft. | | | | | D SAND | 7239 ft. | | | | | J SAND | 7300 ft. | | | |
Formation JSND Formation Classification: OW Status: AB - 7/3/2012 Interval Top: 7301 ft. Interval Bottom: 7328 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 12/21/1972 | Choke Size: | | | Formation Name: | J SAND | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/20/1986 | | Treatment Summary: | P&A |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 1 | | CALC_GOR | 31000 | | CASING_PRESS | 950 | | MCF_GAS | 31 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 7301 ft. | # Of Holes: | 41 | | Interval Bottom: | 7328 ft. | Hole Size: | 0.31 in. |
|
Formation CODL Formation Classification: OW Status: AB - 8/5/2021 Interval Top: 6903 ft. Interval Bottom: 6915 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 9/5/2012 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 8/10/2012 | Treatment End Date: | 8/10/2012 | | Treatment Summary: | FRAC'D W/115781 GAL VISTAR AND SLICK WATER AND 229694# OTTAWA SAND | | Total fluid used in treatment (bbls): | 2757 | Max pressure during treatment (psi): | 7468 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 1 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 1.00 | | Recycled water used in treatment (bbls): | 249 | Total flowback volume recovered (bbls): | 809 | | Fresh water used in treatment (bbls): | 2508 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 229694 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 32 | | BTU_GAS | 1324 | | CALC_BBLS_OIL | 32 | | CALC_GOR | 188 | | CALC_MCF_GAS | 6 | | CASING_PRESS | 725 | | GRAVITY_OIL | 46 | | MCF_GAS | 6 | | TUBING_PRESS | 750 |
| | Perforation Data: | | Interval Top: | 6903 ft. | # Of Holes: | 48 | | Interval Bottom: | 6915 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 08/05/2021 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
