COGIS - WELL SCOUT CARD

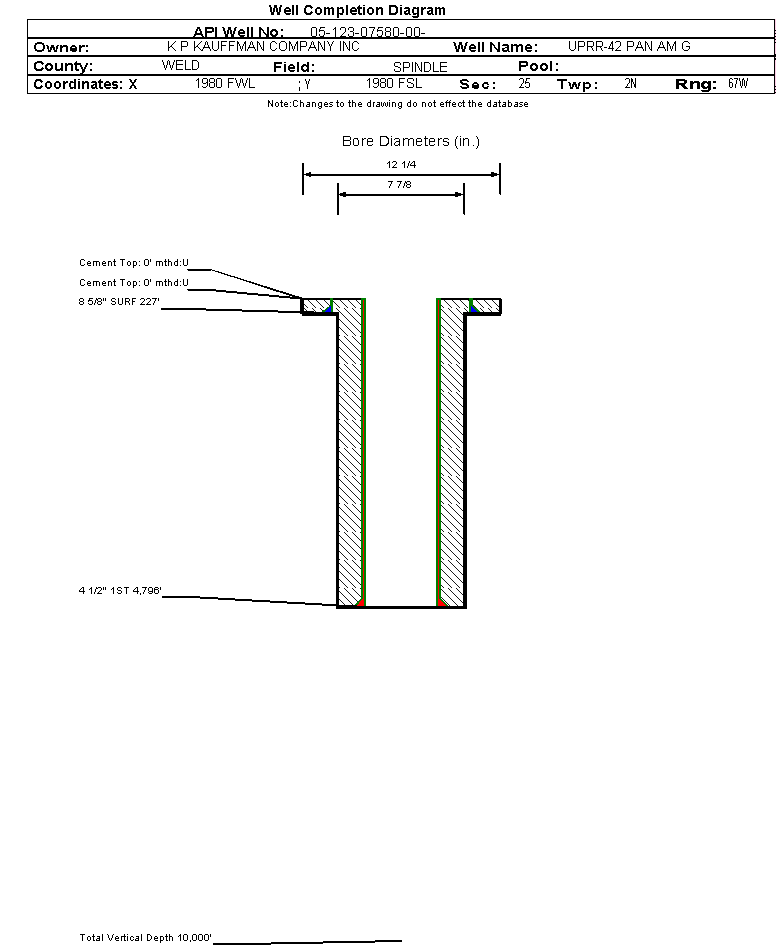

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07580		Well Classification: OW Status: PR - 11/10/1972
Well Name/No:UPRR 42 PAN AM G #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/10/1972
FacilityID:239792LocationID:333006
County:WELD #123Location:NESW 25 2N67W 6
Field:SPINDLE - #77900Elevation:4895 ft.
Planned Location:1980FSL  1980 FWLLat/Long: 40.107317 / -104.841831Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.107305 / -104.841594Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 11/10/1972             Measured TD: 4805 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 11/10/1972
Wellbore Permit
Permit #:19720873 Expiration Date:2/24/1973
Proposed Depth/Form:4780 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:11/20/1972
Spud Date:10/20/1972Spud Date Is:ACTUAL
Measured TD:4805 ft.Measured PB depth:4760 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, FDC DENSITY-GR-CALIPER, GR COLLAR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 227 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
Casing:String Type: S.C. 1.1, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 4796 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4576 ft.NN

Formation SUSX                     Formation Classification:  OW                     Status:  PR - 11/10/1972                Interval Top: 4615 ft.    Interval Bottom: 4647 ft.

 Completed Information for Formation SUSSEX
1st Production Date:11/10/1972Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/20/1972
Treatment Summary:ORIGINAL COMPLETION: FRAC'D X 20,000# 20-40 SN, 10,000# 8-12 SN, 3,000# 6-8 SN. REFRAC 2/80 W/ 117,000 GALS EMULSIFRAC, 192,000# 20-40, 36,000# 10-20
Tubing Size:2.375 in.Tubing Setting Depth:4666 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/20/1972Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 33
CALC_BBLS_H2O 1
CALC_BBLS_OIL 33
CALC_MCF_GAS 31
GRAVITY_OIL 43.8
MCF_GAS 31
Perforation Data:
Interval Top:4615 ft.# Of Holes:17
Interval Bottom:4647 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)589
Total Gas Produced (MCF)871
GOR1478
GOR DeterminationBOE
Average BOE per Day2.170
Average MCFE per Day12.613

 Federal Financial Assurance  i

 Tribal Well  i No
