COGIS - WELL SCOUT CARD

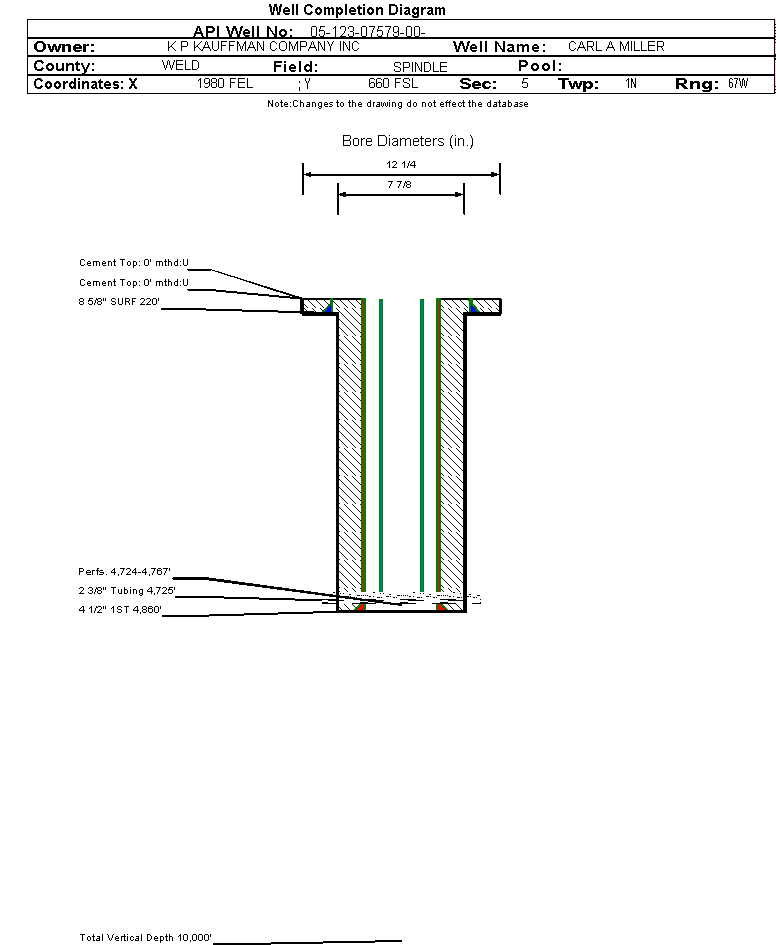

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07579		Well Classification: GW Status: PR - 4/1/2025
Well Name/No:CARL A MILLER #B-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/1/2025
FacilityID:239791LocationID:317691
County:WELD #123Location:SWSE 5 1N67W 6
Field:SPINDLE - #77900Elevation:5028 ft.
Planned Location:660FSL  1980 FELLat/Long: 40.074528 / -104.912223Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.074660 / -104.912160Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/1/2025             Measured TD: 4860 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/1/2025
Wellbore Permit
Permit #:19720872 Expiration Date:2/24/1973
Proposed Depth/Form:4795 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: S2SE
Wellbore Completed
Completion Date:11/27/1972
Spud Date:10/20/1972Spud Date Is:ACTUAL
Measured TD:4860 ft.Measured PB depth:4822 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES, FDC-DENSITY-GR-CALIPER, COLLAR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 220 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4860 ft., Weight: 10.5,11.6, Citings Type: ACTUAL
Cement:Sacks: 4860, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4700 ft.YN

Formation SUSX                     Formation Classification:  GW                     Status:  PR - 4/1/2025                  Interval Top: 4724 ft.    Interval Bottom: 4767 ft.

 Completed Information for Formation SUSSEX
1st Production Date:11/10/1972Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/27/1972
Treatment Summary:FRAC'D X 15,000# 10/20 SN 10,000# 8/12 SN 3000# 6/8 SN
Tubing Size:2.375 in.Tubing Setting Depth:4725 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/27/1972Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 30
CALC_GOR 1033
GRAVITY_OIL 43.3
MCF_GAS 31
Perforation Data:
Interval Top:4724 ft.# Of Holes:
Interval Bottom:4767 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
04/2024 - 03/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)446
GOR
GOR DeterminationMCFE
Average BOE per Day0.201
Average MCFE per Day1.135

 Federal Financial Assurance  i

 Tribal Well  i No
