COGIS - WELL SCOUT CARD

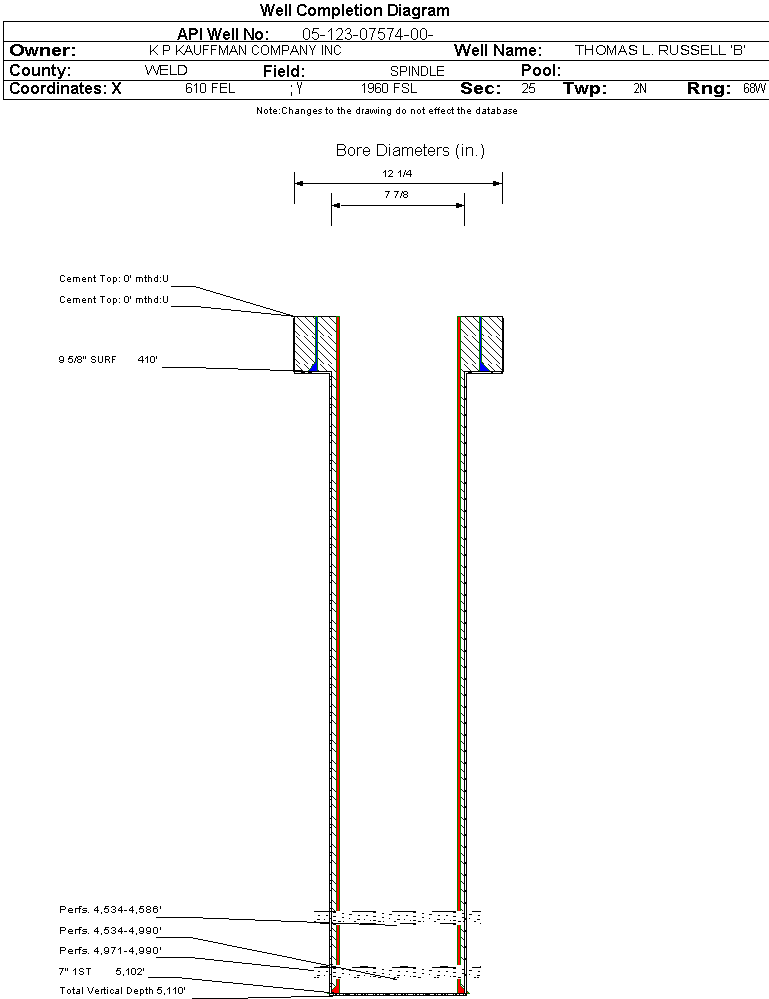

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07574		Well Classification: GW Status: PR - 7/1/2024
Well Name/No:THOMAS L. RUSSELL 'B' #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2024
FacilityID:239786LocationID:317688
Municipality/County:FREDERICK / WELD #123Location:NESE 25 2N68W 6
Field:SPINDLE - #77900Elevation:4964 ft.
Planned Location:1960FSL  610 FELLat/Long: 40.107527 / -104.944385Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.107682 / -104.944345Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2024             Measured TD: 5110 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2024
Wellbore Permit
Permit #:19720854 Expiration Date:2/13/1973
Proposed Depth/Form:5115 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:4/19/1976
Spud Date:10/12/1972Spud Date Is:ACTUAL
Measured TD:5110 ft.Measured PB depth:5074 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, FDC-GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 410 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 7 in., Top: , Depth: 5102 ft., Weight: 20,23 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SHANNON4992 ft.

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 4/19/1976                 Interval Top: 4971 ft.    Interval Bottom: 4990 ft.

 Completed Information for Formation SHANNON
1st Production Date:11/6/1972Choke Size:
Formation Name:SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:4/19/1976
Treatment Summary:FRAC'D X 20,000# 10-20 SAND; 10,000# 8-12 SAND; 3,000# 6-8 SAND
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/10/1972Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 59
CALC_BBLS_H2O 1
CALC_BBLS_OIL 59
CALC_GOR 2100
CALC_MCF_GAS 124
GRAVITY_OIL 43.4
MCF_GAS 124
Perforation Data:
Interval Top:4971 ft.# Of Holes:19
Interval Bottom:4990 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  CM - 4/19/1976                 Interval Top: 4534 ft.    Interval Bottom: 4586 ft.

 Completed Information for Formation SUSSEX
1st Production Date:4/19/1976Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/19/1976Test Method:PUMPING
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 360
CALC_MCF_GAS 853
GRAVITY_OIL 45.6
Perforation Data:
Interval Top:4534 ft.# Of Holes:104
Interval Bottom:4586 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  PR - 7/1/2024                  Interval Top: 4534 ft.    Interval Bottom: 4990 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:4/19/1976Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SX-SN.
Perforation Data:
Interval Top:4534 ft.# Of Holes:123
Interval Bottom:4990 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
06/2024 - 05/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)517
GOR
GOR DeterminationMCFE
Average BOE per Day0.243
Average MCFE per Day1.411

 Federal Financial Assurance  i

 Tribal Well  i No
