COGIS - WELL SCOUT CARD

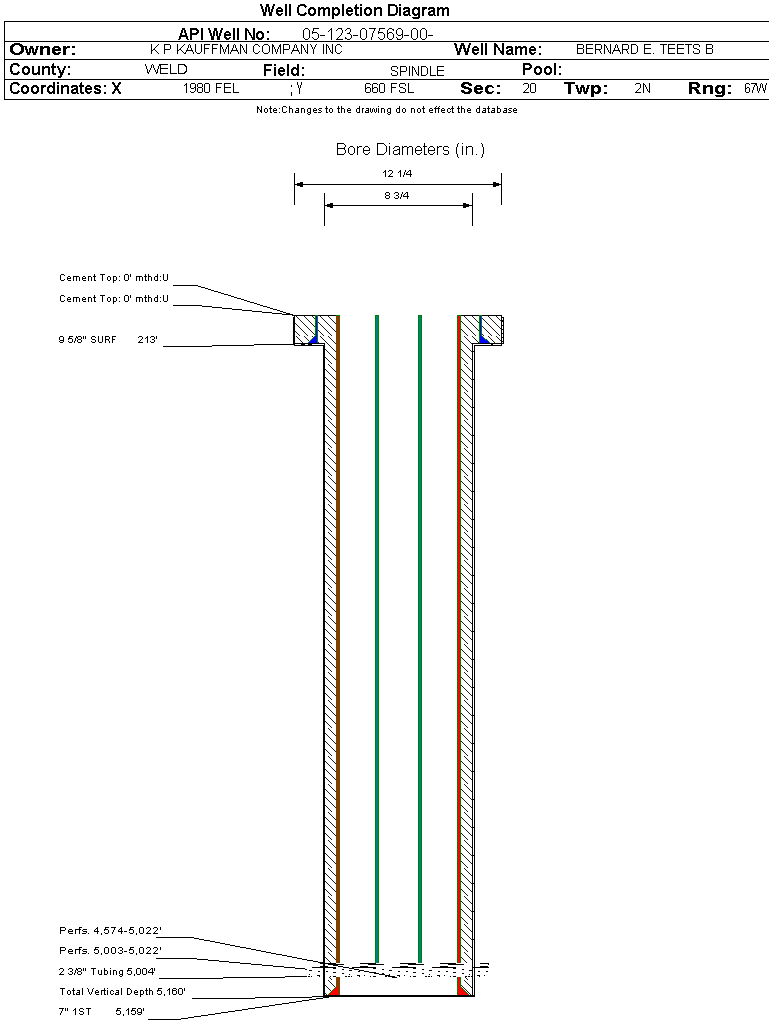

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07569		Well Classification: OW Status: PA - 12/19/2003
Well Name/No:BERNARD E. TEETS B #4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/19/2003
FacilityID:239781LocationID:406077
Municipality/County:FIRESTONE / WELD #123Location:SWSE 20 2N67W 6
Field:SPINDLE - #77900Elevation:4984 ft.
Planned Location:660FSL  1980 FELLat/Long: 40.118227 / -104.912264Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 12/19/2003             Measured TD: 5160 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 12/19/2003
Wellbore Permit
Permit #:19720826 Expiration Date:2/3/1973
Proposed Depth/Form:5020 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SX-SN , Formation: SUSSEX-SHANNON , Order: , Unit Acreage: 80, Drill Unit:
Wellbore Completed
Completion Date:8/25/1976
Spud Date:10/2/1972Spud Date Is:ACTUAL
Measured TD:5160 ft.Measured PB depth:5113 ft.
True Vertical TD:True Vertical PB depth:
Log Types:SP-IES, GDC - DENSITY GR W/ CALIPER
Log Types:IES, GDC-DENSITY-GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 213 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: , Depth: 5159 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4570 ft.YN
SHANNON4996 ft.YN

Formation SNSD                     Formation Classification:  GW                     Status:  CM - 12/19/2003                Interval Top: 5003 ft.    Interval Bottom: 5022 ft.

 Completed Information for Formation SHANNON
1st Production Date:10/27/1972Choke Size:
Formation Name:SHANNONCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:8/25/1976
Treatment Summary:FRAC'D X 1SE CRUDE ADOMITE, HYFLO X 6-8 SN
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/30/1972Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 74
CALC_BBLS_H2O 1
CALC_BBLS_OIL 74
CALC_GOR 1040
CALC_MCF_GAS 77
GRAVITY_OIL 43.8
MCF_GAS 77
Perforation Data:
Interval Top:5003 ft.# Of Holes:19
Interval Bottom:5022 ft.Hole Size:

Formation SX-SN                   Formation Classification:  GW                   Status:  AB - 12/19/2003                Interval Top: 4574 ft.    Interval Bottom: 5022 ft.

 Completed Information for Formation SUSSEX-SHANNON
1st Production Date:8/25/1976Choke Size:
Formation Name:SUSSEX-SHANNONCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:5004 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/25/1976Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 12
CALC_BBLS_H2O 0
CALC_BBLS_OIL 12
CALC_MCF_GAS 155
GRAVITY_OIL 44.7
MCF_GAS 155
Perforation Data:
Interval Top:4574 ft.# Of Holes:63
Interval Bottom:5022 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/19/2003
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
