COGIS - WELL SCOUT CARD

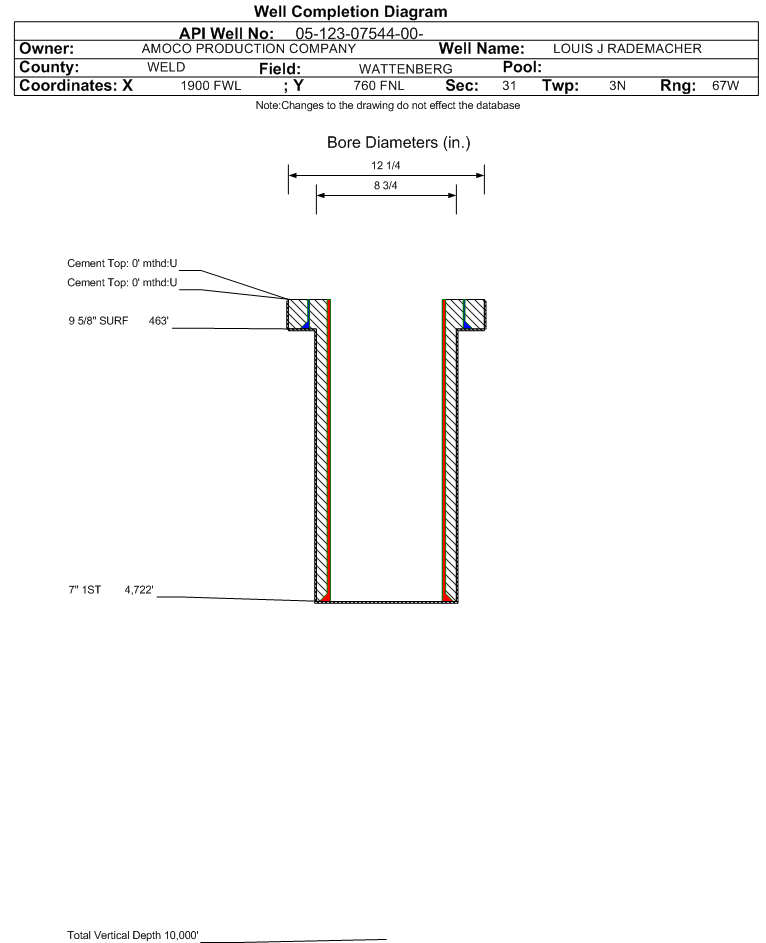

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-123-07544		Well Classification: DA Status: PA - 3/14/2001
Well Name/No:LOUIS J RADEMACHER #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:AMOCO PRODUCTION COMPANY - 2500
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/14/2001
FacilityID:239756LocationID:406066
County:WELD #123Location:NENW 31 3N67W 6
Field:WATTENBERG - #90750Elevation:4793 ft.
Basin:DENVER (DJ) BASIN
Planned Location:760FNL  1900 FWLLat/Long: 40.187786 / -104.935165Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: AB - 3/14/2001             Measured TD: 4725 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        AB - 3/14/2001
Wellbore Permit
Permit #:720746 Expiration Date:1/12/1973
Proposed Depth/Form:
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:4/30/1974
Spud Date:9/12/1972Spud Date Is:ACTUAL
Measured TD:4725 ft.Measured PB depth:4679 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 463 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 4722 ft., Weight: 20 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: , Bottom: , Determination Method:

Formation UNK                       Formation Classification:  GW                       Status:  AB - 4/30/1974

 Completed Information for Formation UNKNOWN
1st Production Date:N/AChoke Size:0.000 in.
Formation Name:UNKNOWNCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation UNK.
No Perforation Data was found for formation UNK.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/14/2001
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
