COGIS - WELL SCOUT CARD

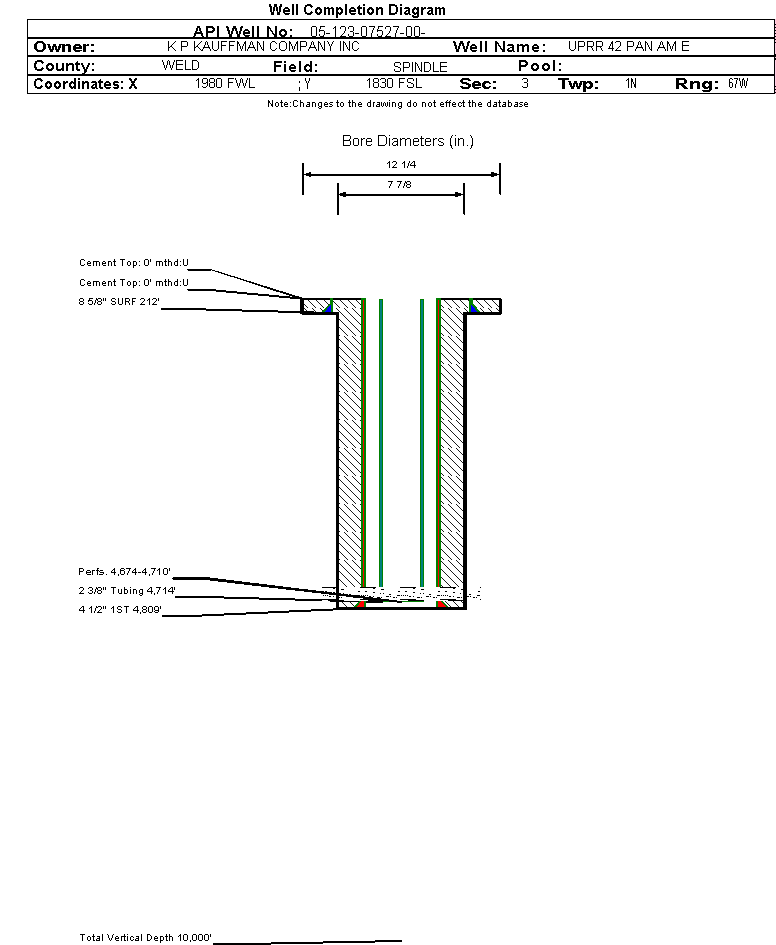

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07527		Well Classification: GW Status: SI - 7/1/2024
Well Name/No:UPRR 42 PAN AM E #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date7/1/2024
FacilityID:239739LocationID:317665
County:WELD #123Location:NESW 3 1N67W 6
Field:SPINDLE - #77900Elevation:4971 ft.
Planned Location:1830FSL  1980 FWLLat/Long: 40.077568 / -104.879312Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.077830 / -104.879500Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 7/1/2024             Measured TD: 4810 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 7/1/2024
Wellbore Permit
Permit #:19720647 Expiration Date:12/10/1972
Proposed Depth/Form:4760 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: N2SW
Wellbore Completed
Completion Date:9/5/1972
Spud Date:8/13/1972Spud Date Is:ACTUAL
Measured TD:4810 ft.Measured PB depth:4759 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:IES, FDC, GR-CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 212 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 4809 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4642 ft.NN

Formation SUSX                     Formation Classification:  GW                     Status:  SI - 7/1/2024                  Interval Top: 4674 ft.    Interval Bottom: 4710 ft.

 Completed Information for Formation SUSSEX
1st Production Date:8/30/1972Choke Size:0.625 in.
Formation Name:SUSSEXCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/5/1972
Treatment Summary:FRAC'D X 40,000# 10/20 SN, 20,000# 8/12 SN, 4000# 6/8 SN
Tubing Size:2.375 in.Tubing Setting Depth:4714 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/5/1972Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 153
CALC_GOR 634
CASING_PRESS 610
GRAVITY_OIL 44.7
MCF_GAS 97
TUBING_PRESS 95
Perforation Data:
Interval Top:4674 ft.# Of Holes:
Interval Bottom:4710 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)8
Total Gas Produced (MCF)15
GOR1875
GOR DeterminationBOE
Average BOE per Day0.030
Average MCFE per Day0.166

 Federal Financial Assurance  i

 Tribal Well  i No
