Wellbore #00 Wellbore Classification: OW Status: PA - 7/18/2019 Measured TD: 8257 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 7/18/2019 | | Wellbore Permit | DRIFTED | | Permit #: | 19720028 | Expiration Date: | 1/13/1973 | | Proposed Depth/Form: | 8257 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | STATE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 496-3 , Unit Acreage: 320, Drill Unit: | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit: |
| | |

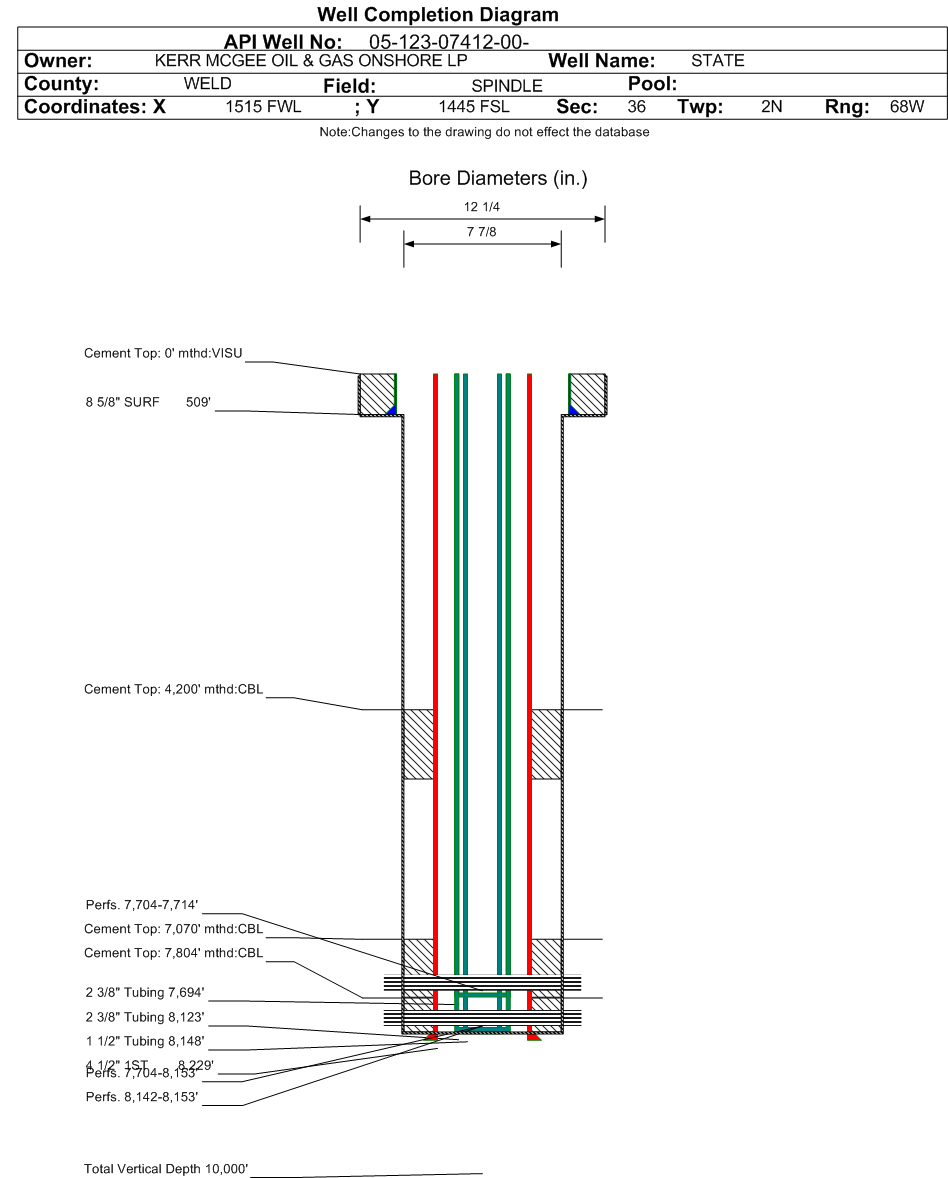

| Wellbore Completed | | Completion Date: | 9/10/1998 | | Spud Date: | 1/24/1972 | Spud Date Is: | ACTUAL | | Measured TD: | 8257 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | IES FDC-GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 509 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 509 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8229 ft., Weight: 10.5/11.6, Citings Type: ACTUAL | | Cement: | Sacks: 150, Top: 7804 ft., Bottom: 8229 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7790 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 180, Top: 7070 ft., Bottom: 7796 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 5125 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 891, Top: 4200 ft., Bottom: 5066 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SUSSEX | 4620 ft. | | N | N | | NIOBRARA | 7403 ft. | | N | N | | FORT HAYS | 7678 ft. | | N | N | | CODELL | 7698 ft. | | N | N | | GREENHORN | 7868 ft. | | N | N | | J SAND | 8126 ft. | | N | N |
Formation JSND Formation Classification: GW Status: AB - 7/18/2019 Interval Top: 8142 ft. Interval Bottom: 8153 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 3/2/1972 | Choke Size: | | | Formation Name: | J SAND | Commingled: | | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/10/1998 | | Treatment Summary: | ORIGINAL COMPLETION: 55,000# SAND; 66,200 GALS WATER. 6/94: TA FOR CODL COMPLETION. 9/98: CIBP REMOVED AND JSND COMMINGLED W/ CODL |
| | Tubing Size: | 1.5 in. | Tubing Setting Depth: | 8148 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/2/1972 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 8.5 | | BBLS_OIL | 1 | | MCF_GAS | 2050 | | TUBING_PRESS | 14.65 |
| | Perforation Data: | | Interval Top: | 8142 ft. | # Of Holes: | 11 | | Interval Bottom: | 8153 ft. | Hole Size: | |
|
Formation CODL Formation Classification: GW Status: AB - 7/18/2019 Interval Top: 7704 ft. Interval Bottom: 7714 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 6/29/1994 | Choke Size: | 0.218 in. | | Formation Name: | CODELL | Commingled: | | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/10/1998 | | Treatment Summary: | ORIGINAL COMPLETION: 68,350 GALS GEL W/ 211,420# 20-40 SAND. ATP 5580# @ 12.5 BPM; ISDP 3517#. 9/98: COMMINGLED W/ JSND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7694 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/2/1994 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 1 | | BBLS_OIL | 20 | | CALC_BBLS_H2O | 1 | | CALC_BBLS_OIL | 20 | | CALC_GOR | 2650 | | CALC_MCF_GAS | 53 | | CASING_PRESS | 600 | | MCF_GAS | 53 | | TUBING_PRESS | 400 |
| | Perforation Data: | | Interval Top: | 7704 ft. | # Of Holes: | 20 | | Interval Bottom: | 7714 ft. | Hole Size: | |
|
Formation J-CDL Formation Classification: GW Status: CM - 9/10/1998 Interval Top: 7704 ft. Interval Bottom: 8153 ft.| Completed Information for Formation J-CODELL | | 1st Production Date: | 9/10/1998 | Choke Size: | | | Formation Name: | J-CODELL | Commingled: | | | Production Method: | PLUNGER 500 | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 9/10/1998 | | Treatment Summary: | CIBP REMOVED FROM JSND & JSND COMMINGLED W/ CODL |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8123 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/10/1998 | Test Method: | PLUNGER 500 | | Hours Tested: | 8 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 3 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 3 | | CALC_GOR | 90333 | | CALC_MCF_GAS | 271 | | CASING_PRESS | 560 | | MCF_GAS | 271 | | TUBING_PRESS | 400 |
| | Perforation Data: | | Interval Top: | 7704 ft. | # Of Holes: | 31 | | Interval Bottom: | 8153 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 07/18/2019 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
