COGIS - WELL SCOUT CARD

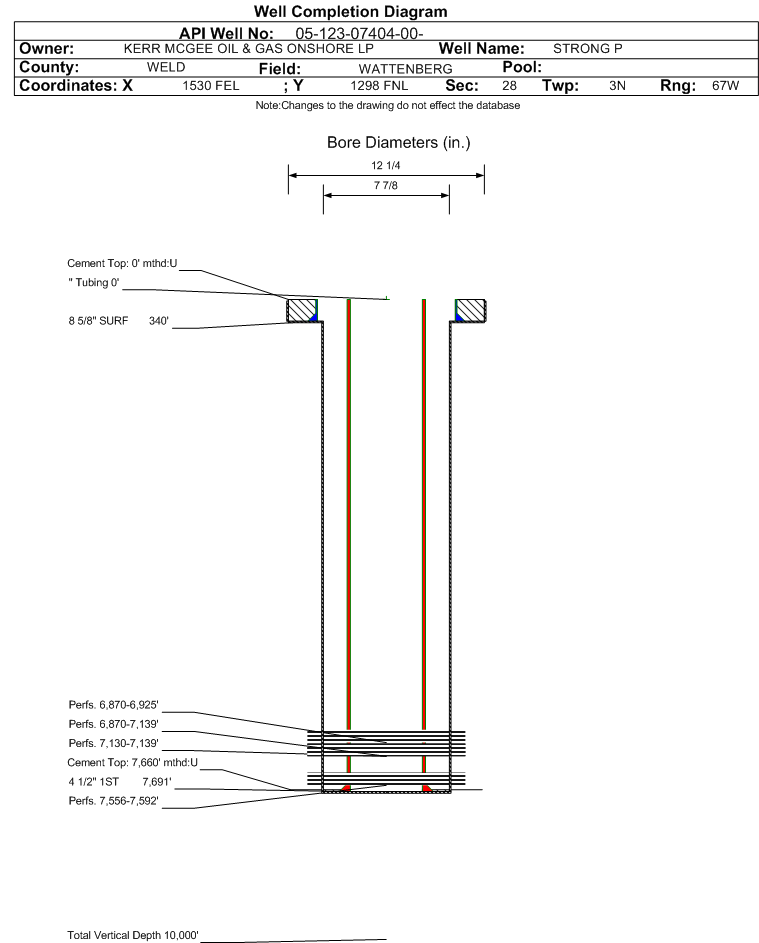

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07404		Well Classification: OW Status: PA - 9/9/2022
Well Name/No:STRONG P #28-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/9/2022
FacilityID:239616LocationID:317626
County:WELD #123Location:NWNE 28 3N67W 6
Field:WATTENBERG - #90750Elevation:4794 ft.
Planned Location:1298FNL  1530 FELLat/Long: 40.200324 / -104.891415Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.200389 / -104.891280Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 9/9/2022             Measured TD: 7698 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 9/9/2022
Wellbore Permit
Permit #:19710993 Expiration Date:8/17/1995
Proposed Depth/Form:4794 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 407-66 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:2/18/1972
Spud Date:12/17/1971Spud Date Is:ACTUAL
Measured TD:7698 ft.Measured PB depth:7580 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CNI; IES; FDC-GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 340 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 340 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7691 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 7062 ft., Bottom: 7691 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SHANNON4616 ft.NN
NIOBRARA6860 ft.NN
FORT HAYS7108 ft.NN
GREENHORN7308 ft.NN
J SAND7555 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  AB - 9/9/2022                  Interval Top: 7556 ft.    Interval Bottom: 7592 ft.

 Completed Information for Formation J SAND
1st Production Date:7/20/1976Choke Size:
Formation Name:J SANDCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/18/1972
Treatment Summary:35000# SAND 1500 BBLS WATER
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 22
CALC_BBLS_H2O 12
CALC_BBLS_OIL 22
CALC_GOR 115909
CALC_MCF_GAS 2550
MCF_GAS 2550
TUBING_PRESS 14.65
Perforation Data:
Interval Top:7556 ft.# Of Holes:12
Interval Bottom:7592 ft.Hole Size:

Formation CODL                     Formation Classification:  OW                     Status:  CM - 11/1/2016                 Interval Top: 7130 ft.    Interval Bottom: 7139 ft.

 Completed Information for Formation CODELL
1st Production Date:3/11/1995Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7130 ft.# Of Holes:85
Interval Bottom:7139 ft.Hole Size:

Formation NB-CD                   Formation Classification:  OW                   Status:  AB - 9/9/2022                  Interval Top: 6870 ft.    Interval Bottom: 7139 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:3/11/1995Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:2/18/1972
Treatment Summary:87000 GAL SATURN III 35/30 HT/LPH/D CROSSLINKED GEL CONTAINING 335,000# 20/40 OTTAWA WAND SPEARHEADED W/ 750 GAL 10% HCL & WO ACID FOR 5 MINS TO SOAK // REPERF CODELL 7127-7146' (76 HOLES). REFRAC CODELL W/ 131,880 GAL VISTAR 28# GEL & 248,072# 20/40 OTTAWA SAND, 11/5/03
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 6
BBLS_OIL 33
BTU_GAS 1204
CALC_BBLS_H2O 6
CALC_BBLS_OIL 33
CALC_GOR 6939
CALC_MCF_GAS 229
GRAVITY_OIL 63
MCF_GAS 229
TUBING_PRESS 180
Perforation Data:
Interval Top:6870 ft.# Of Holes:90
Interval Bottom:7139 ft.Hole Size:0.42 in.

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 11/1/2016                 Interval Top: 6870 ft.    Interval Bottom: 6925 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:3/11/1995Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:6870 ft.# Of Holes:5
Interval Bottom:6925 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/09/2022
Out Of Service RepurposedN
Out Of ServiceYPlugging Due Date
12/31/2030
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
April 2024 - March 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
