COGIS - WELL SCOUT CARD

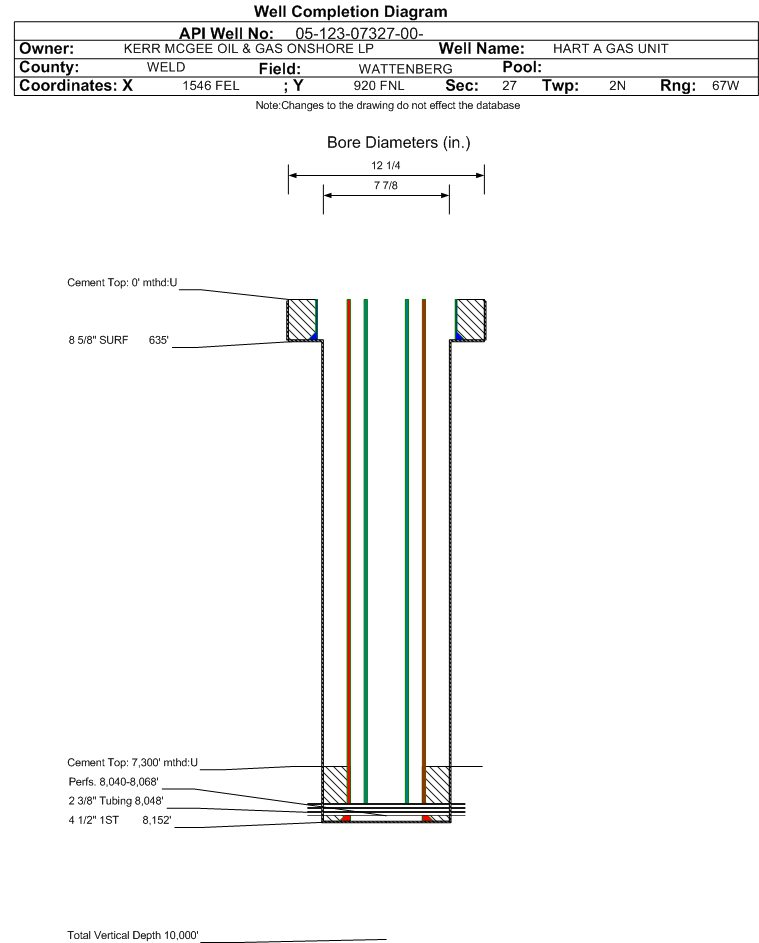

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07327		Well Classification: GW Status: PA - 5/6/2014
Well Name/No:HART A GAS UNIT #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/6/2014
FacilityID:239540LocationID:317600
County:WELD #123Location:NWNE 27 2N67W 6
Field:WATTENBERG - #90750Elevation:4974 ft.
Planned Location:920FNL  1546 FELLat/Long: 40.113797 / -104.873242Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.113580 / -104.873870Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 5/6/2014             Measured TD: 8160 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 5/6/2014
Wellbore Permit
Permit #:19710391 Expiration Date:10/7/1971
Proposed Depth/Form:8175 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 320, Drill Unit:
Wellbore Completed
Completion Date:9/15/1971
Spud Date:6/3/1971Spud Date Is:ACTUAL
Measured TD:8160 ft.Measured PB depth:8114 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CNP AND FDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 635 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 635 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8152 ft., Weight: 10.5/11.6, Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7300 ft., Bottom: 8152 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
SUSSEX4655 ft.
SHANNON5078 ft.
NIOBRARA7302 ft.
FORT HAYS7568 ft.
CODELL7592 ft.
GREENHORN7642 ft.
J SAND8034 ft.
SKULL CREEK8086 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 5/6/2014                  Interval Top: 8040 ft.    Interval Bottom: 8068 ft.

 Completed Information for Formation J SAND
1st Production Date:7/1/1971Choke Size:2.000 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/15/1971
Treatment Summary:ORIGINAL COMPLETION: 56,000# SAND & 59,000 GALS WATER. 2/75 RE-STIM: 310,000 GALS SUPER EMULSION FRAC THROUGH EXISTING PERFS
Tubing Size:2.375 in.Tubing Setting Depth:8048 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/18/1975Test Method:FLOWING
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_BBLS_H2O 5
CALC_BBLS_OIL 2
CALC_MCF_GAS 544
Perforation Data:
Interval Top:8040 ft.# Of Holes:10
Interval Bottom:8068 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/06/2014
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
