COGIS - WELL SCOUT CARD

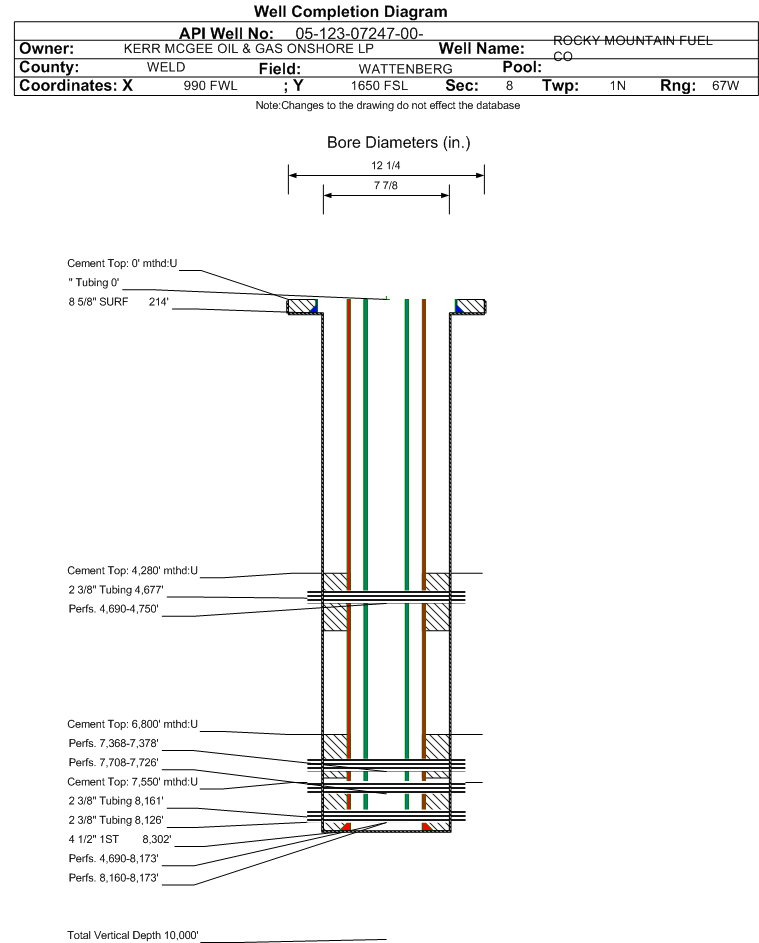

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07247		Well Classification: OW Status: PA - 5/2/2019
Well Name/No:ROCKY MOUNTAIN FUEL CO #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/2/2019
FacilityID:239460LocationID:317563
County:WELD #123Location:NWSW 8 1N67W 6
Field:WATTENBERG - #90750Elevation:5022 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1650FSL  990 FWLLat/Long: 40.062878 / -104.920443Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.062836 / -104.920419Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 5/2/2019             Measured TD: 8302 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 5/2/2019
Wellbore PermitDRIFTED
Permit #:20088207 Expiration Date:1/5/2010
Proposed Depth/Form:8302 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 250-11 , Unit Acreage: 160, Drill Unit: SW4
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 214 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 220, Top: 10 ft., Bottom: 214 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8302 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: 7550 ft., Bottom: 8302 ft.
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: PLANNED
Cement:Sacks: 425, Top: 4320 ft., Bottom: 4460 ft.
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: PLANNED
Cement:Sacks: 620, Top: 216 ft., Bottom: 1050 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:2/24/1971Spud Date Is:ACTUAL
Measured TD:8302 ft.Measured PB depth:8266 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL
Log Types:IES, FDC, GR, CNP, CORRELATION, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 214 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 220, Top: 0 ft., Bottom: 214 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8302 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7550 ft., Bottom: 8302 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7480 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 325, Top: 6800 ft., Bottom: 7480 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 5178 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 425, Top: 4280 ft., Bottom: 5178 ft., Determination Method: CBL
Casing:String Type: S.C. 1.3, Hole Size: , Size: , Top: , Depth: 1050 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 620, Top: 0 ft., Bottom: 1050 ft., Determination Method: CBL
Additional Cement:String Type: 1ST , Top: 0 ft., Depth: 1001 ft., Bottom: 1050 ft., Sacks: 620, Method: PERF & PUMP
Additional Cement:String Type: 1ST , Top: 4280 ft., Depth: 5021 ft., Bottom: 5178 ft., Sacks: 425, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 6800 ft., Depth: 7480 ft., Bottom: 7480 ft., Sacks: 325, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
CODELL7708 ft.NN
J SAND8126 ft.YN

Formation JSND                     Formation Classification:  OG                     Status:  AB - 5/2/2019                  Interval Top: 8160 ft.    Interval Bottom: 8173 ft.

 Completed Information for Formation J SAND
1st Production Date:3/18/1971Choke Size:
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/27/2010
Treatment Summary:3/16/1971-J Sand Perf 8160-8173 Holes 26 Size 0.42 12/17/2010- Drilled out CIBP 12/27/2010- Commingled w/ Codell and Sussex production
Formation Treatment
Treatment Date:3/31/1971
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CASING_PRESS 125
MCF_GAS 300
TUBING_PRESS 30
Perforation Data:
Interval Top:8160 ft.# Of Holes:26
Interval Bottom:8173 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OG                     Status:  AB - 5/2/2019                  Interval Top: 7708 ft.    Interval Bottom: 7726 ft.

 Completed Information for Formation CODELL
1st Production Date:7/15/1995Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/27/2010
Treatment Summary:05/09/1995- Codell Perf 7708-7726 Holes 72 Size 0.38 12/17/2010- Drilled out CIBP 12/27/2010- Commingled w/ J Sand and Sussex production
Formation Treatment
Treatment Date:3/31/1971
Treatment Summary:NO ADDITIONAL TREATMENT.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 42
CALC_GOR 1143
CASING_PRESS 1650
MCF_GAS 48
TUBING_PRESS 1600
Perforation Data:
Interval Top:7708 ft.# Of Holes:72
Interval Bottom:7726 ft.Hole Size:0.38 in.

Formation J-CDL                   Formation Classification:  OW                   Status:  CM - 2/12/1998                 Interval Top: 7368 ft.    Interval Bottom: 7378 ft.

 Completed Information for Formation J-CODELL
1st Production Date:9/1/1995Choke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8161 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/1/1995Test Method:FLOWING
Hours Tested:168Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 70
CALC_BBLS_OIL 10
CALC_GOR 8300
CALC_MCF_GAS 83
MCF_GAS 581
Perforation Data:
Interval Top:7368 ft.# Of Holes:30
Interval Bottom:7378 ft.Hole Size:

Formation JCDSX                   Formation Classification:  OG                   Status:  CM - 4/1/2011                  Interval Top: 4690 ft.    Interval Bottom: 8173 ft.

 Completed Information for Formation J-CODELL-SUSSEX
1st Production Date:12/27/2010Choke Size:
Formation Name:J-CODELL-SUSSEXCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/17/2010
Treatment Summary:3/16/1971-J Sand Perf 8160-8173 Holes 26 Size 0.42 5/09/1995- Codell Perf 7708-7726 Holes 72 Size 0.38 7/15/2009-Sussex Perf 4690-4750 Holes 30 Size 0.38
Tubing Size:2.375 in.Tubing Setting Depth:8126 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/1/2011Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 2
BTU_GAS 1289
CALC_BBLS_OIL 2
CALC_GOR 12500
CALC_MCF_GAS 25
CASING_PRESS 524
GRAVITY_OIL 48
MCF_GAS 25
TUBING_PRESS 439
Perforation Data:
Interval Top:4690 ft.# Of Holes:128
Interval Bottom:8173 ft.Hole Size:0.38 in.

Formation SUSX                     Formation Classification:  OW                     Status:  AB - 5/2/2019                  Interval Top: 4690 ft.    Interval Bottom: 4750 ft.

 Completed Information for Formation SUSSEX
1st Production Date:8/11/2009Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/15/2009
Treatment Summary:21,164 GAL FOAM, 181,560# 16/30 SAND, 19,500# 12/20 SB EXCEL.
Tubing Size:2.375 in.Tubing Setting Depth:4677 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/26/2009Test Method:FLOWING
Hours Tested:Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1192
CALC_BBLS_H2O 0
CALC_BBLS_OIL 20
CALC_GOR 2850
CALC_MCF_GAS 57
CASING_PRESS 513
GRAVITY_OIL 45
TUBING_PRESS 280
Perforation Data:
Interval Top:4690 ft.# Of Holes:50
Interval Bottom:4750 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/02/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
