COGIS - WELL SCOUT CARD

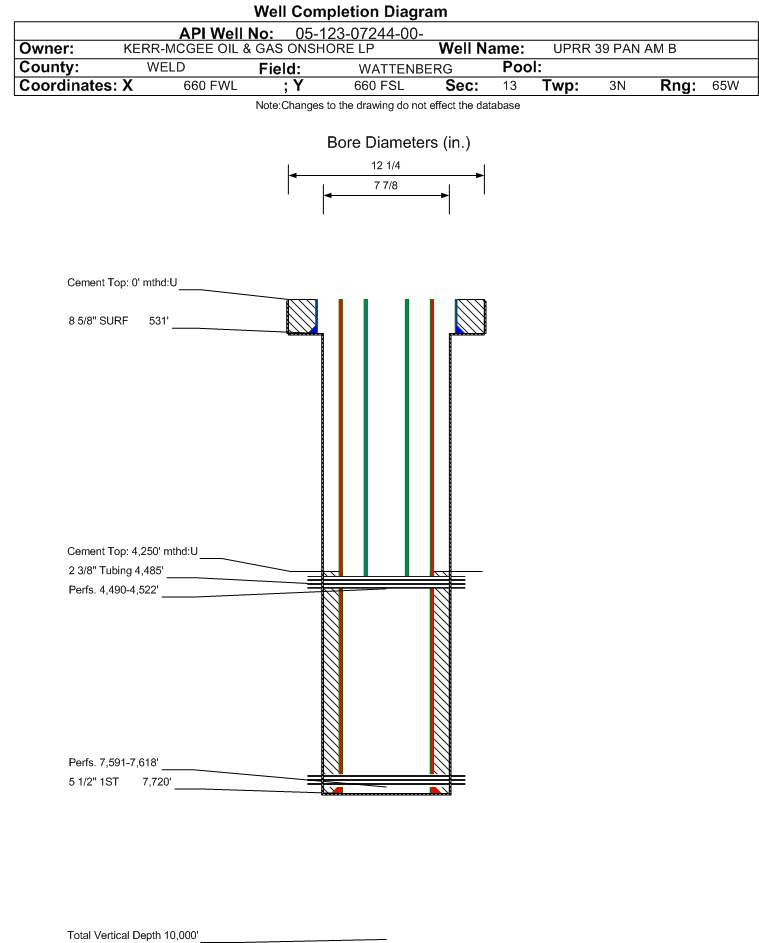

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-07244		Well Classification: GW Status: PA - 3/13/2006
Well Name/No:UPRR 39 PAN AM B #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KERR MCGEE OIL & GAS ONSHORE LP - 47120
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/13/2006
FacilityID:239457LocationID:317560
County:WELD #123Location:SWSW 13 3N65W 6
Field:WATTENBERG - #90750Elevation:4845 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  660 FWLLat/Long: 40.219467 / -104.618655Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.219570 / -104.619310Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/13/2006             Measured TD: 7720 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/13/2006
Wellbore Permit
Permit #:19710024 Expiration Date:3/15/1992
Proposed Depth/Form:7750 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: MDDYJ , Formation: MUDDY J , Order: , Unit Acreage: 320, Drill Unit: S2
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 493 , Unit Acreage: 80, Drill Unit: W2SW
Wellbore Completed
Completion Date:2/11/1992
Spud Date:1/24/1971Spud Date Is:ACTUAL
Measured TD:7720 ft.Measured PB depth:7689 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, CNP, FDC, GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 531 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: 531 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 7720 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 4250 ft., Bottom: 7720 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
PARKMAN3800 ft.NN
SUSSEX4400 ft.NN
NIOBRARA6830 ft.NN
MUDDY D7530 ft.NN
MUDDY J7580 ft.NN

Formation MDDYJ                   Formation Classification:  GW                   Status:  AB - 3/13/2006                 Interval Top: 7591 ft.    Interval Bottom: 7618 ft.

 Completed Information for Formation MUDDY J
1st Production Date:2/13/1971Choke Size:0.750 in.
Formation Name:MUDDY JCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/11/1992
Treatment Summary:FRACED X 4000# 20/40 SAND; 36,000 10/20 SAND; 4000# 12/20 BEADS.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/19/1971Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_MCF_GAS 480
CASING_PRESS 275
MCF_GAS 480
TUBING_PRESS 35
Perforation Data:
Interval Top:7591 ft.# Of Holes:54
Interval Bottom:7618 ft.Hole Size:0.5 in.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 3/13/2006                 Interval Top: 4490 ft.    Interval Bottom: 4522 ft.

 Completed Information for Formation SUSSEX
1st Production Date:12/24/1991Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:2/11/1992
Treatment Summary:FRAC DOWN CASING W/ 22,000 GAL PAD; 36,000 GAL 35/30 GEL; & 310,000# 12/20 SAND.FLUSH W/ 69 BBLS. ATP 1450 PSI. AIR 35 BPM.
Tubing Size:2.375 in.Tubing Setting Depth:4485 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/11/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 50
BBLS_OIL 0
CALC_BBLS_H2O 50
CALC_MCF_GAS 199
CASING_PRESS 650
MCF_GAS 199
TUBING_PRESS 580
Perforation Data:
Interval Top:4490 ft.# Of Holes:256
Interval Bottom:4522 ft.Hole Size:0.5 in.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 3/13/2006

 Completed Information for Formation J SAND
1st Production Date:3/26/1976Choke Size:
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/11/1992
Treatment Summary:FOUND NGPA DATA FOR JSAND (SEE BELOW). NO OTHER COMPLETION OR TEST DATA.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
No Perforation Data was found for formation JSND.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/13/2006
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
