COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-05461		Well Classification: OW Status: PA - 11/2/1971
Well Name/No:UPRR #10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CHEVRON USA INC - 16700
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/2/1971
FacilityID:238598LocationID:405133
County:WELD #123Location:NWSW 31 8N66W 6
Field:BLACK HOLLOW - #6835Elevation:5109 ft.
Planned Location:1979FSL  660 FWLLat/Long: 40.616081 / -104.829325Lat/Long Source: Calculated From Footages

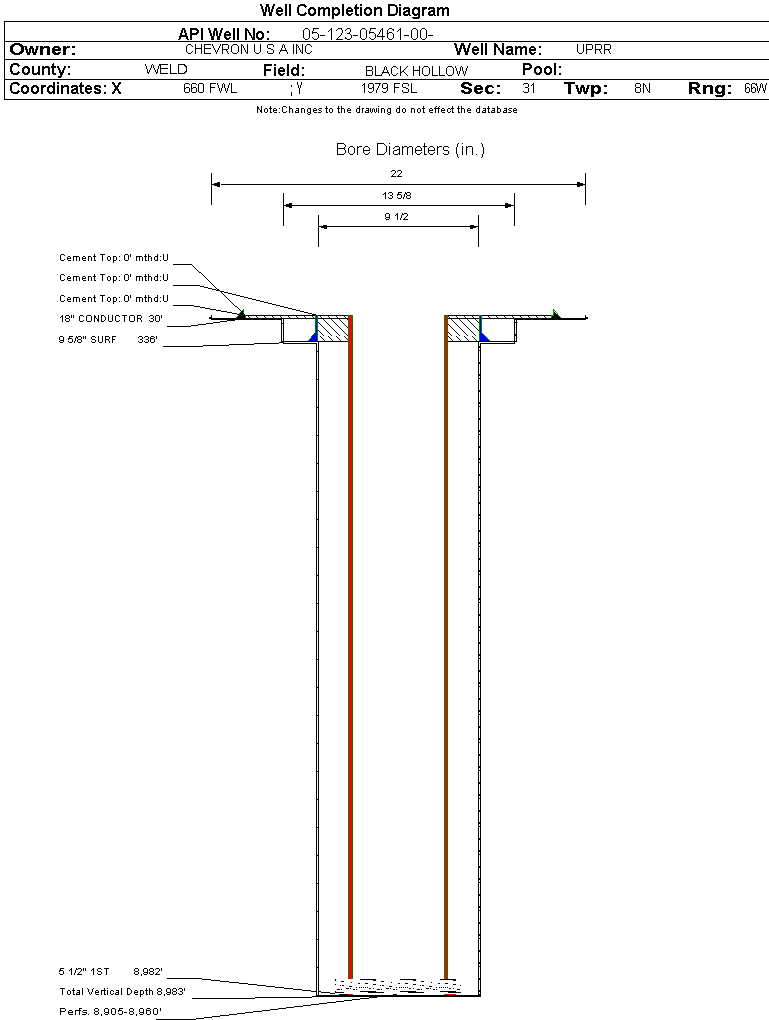

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/2/1971             Measured TD: 8983 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/2/1971
Wellbore Permit
Permit #:19550000 Expiration Date:8/29/1955
Proposed Depth/Form:9000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit:BLACK HOLLOW Unit Number:
Formation And Spacing:Code: LYNS , Formation: LYONS , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:6/20/1955
Spud Date:5/4/1955Spud Date Is:ACTUAL
Measured TD:8983 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:ELECTRICAL
Casing:String Type: CONDUCTOR, Hole Size: , Size: 18 in., Top: , Depth: 30 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Casing:String Type: SURF, Hole Size: , Size: 9.625 in., Top: , Depth: 336 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 5.5 in., Top: , Depth: 8982 ft., Weight: 17,15.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6766 ft.
TIMPAS7052 ft.
CARLILE7070 ft.
GREENHORN7276 ft.
GRANEROS7356 ft.
MUDDY7558 ft.
SKULL CREEK7670 ft.
DAKOTA7802 ft.
LYKINS8266 ft.
LYONS8906 ft.Y

Formation LYNS                     Formation Classification:  GW                     Status:  AB - 11/2/1971                 Interval Top: 8905 ft.    Interval Bottom: 8960 ft.

 Completed Information for Formation LYONS
1st Production Date:6/20/1955Choke Size:
Formation Name:LYONSCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/20/1955Test Method:PUMPING
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 145
CALC_GOR 25
GRAVITY_OIL 36
MCF_GAS 3.6
Perforation Data:
Interval Top:8905 ft.# Of Holes:270
Interval Bottom:8960 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/02/1971
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
