COGIS - WELL SCOUT CARD

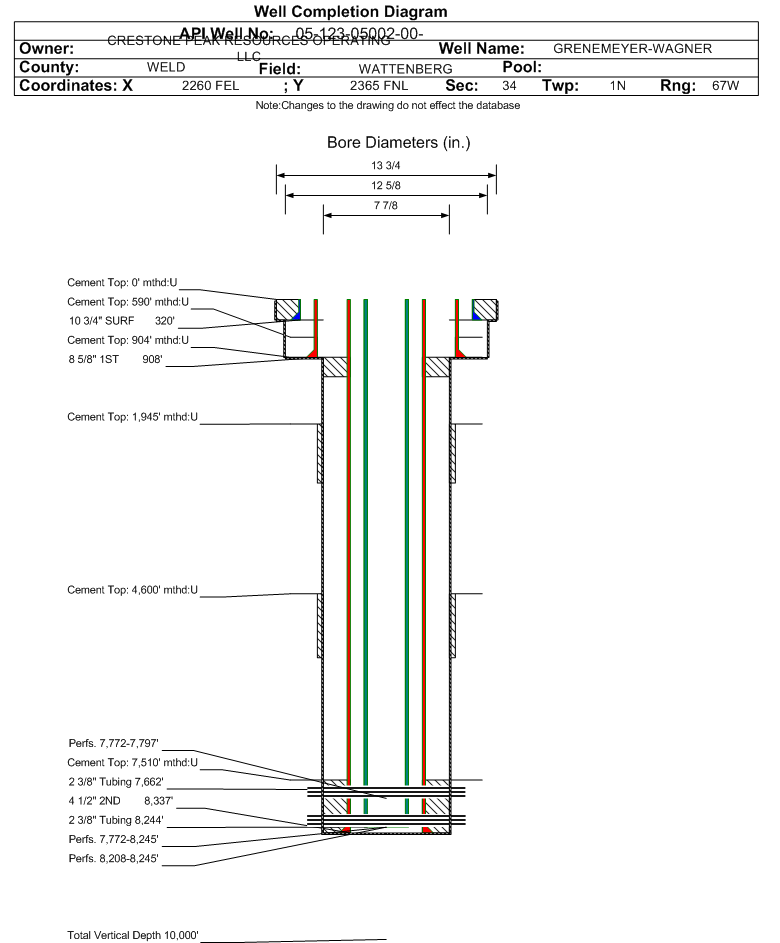

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-05002		Well Classification: GW Status: PA - 6/20/2018
Well Name/No:GRENEMEYER-WAGNER #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/20/2018
FacilityID:238174LocationID:317485
County:WELD #123Location:SWNE 34 1N67W 6
Field:WATTENBERG - #90750Elevation:5055 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2365FNL  2260 FELLat/Long: 40.008289 / -104.875342Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.008344 / -104.875208Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 6/20/2018             Measured TD: 9441 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/20/2018
Wellbore Permit
Permit #:19550000 Expiration Date:10/1/1955
Proposed Depth/Form:8300 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-66 , Unit Acreage: 320, Drill Unit: N2
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:8/24/1955
Spud Date:5/7/1955Spud Date Is:ACTUAL
Measured TD:9441 ft.Measured PB depth:8283 ft.
True Vertical TD:True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 13.75 in., Size: 10.75 in., Top: 0 ft., Depth: 320 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 320 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: , Size: 8.625 in., Top: 0 ft., Depth: 908 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 590 ft., Bottom: 908 ft., Determination Method: CALC
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 4600 ft., Bottom: 5600 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 1945 ft., Bottom: 2870 ft., Determination Method: CBL
Casing:String Type: 2ND, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8337 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7510 ft., Bottom: 8337 ft., Determination Method: CBL
Casing:String Type: S.C. 2.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 904 ft., Bottom: 1210 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7328 ft.
TIMPAS7753 ft.
CODELL7774 ft.
GREENHORN7858 ft.
J SAND8206 ft.Y
SKULL CREEK8338 ft.
LAKOTA8391 ft.
MORRISON8518 ft.
LYKINS8818 ft.
LYONS9340 ft.Y

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/20/2018                 Interval Top: 8208 ft.    Interval Bottom: 8245 ft.

 Completed Information for Formation J SAND
1st Production Date:2/13/1971Choke Size:0.000 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/24/1955
Treatment Summary:WATER - FRAC 38,000 GAL W/4000# - 20/40 SD, 27,000# 10/20 SD, 3600# - 12/20 GLASS BEADS & 1000# 8/12 GLASS BEADS AT 45 BPM AT 3600 PSI, ISIP 1900 PSI
Tubing Size:2.375 in.Tubing Setting Depth:8244 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/6/1971Test Method:FLOWING
Hours Tested:78.25Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 3.5
BBLS_OIL 63.4
CALC_BBLS_H2O 0.1
CALC_BBLS_OIL 19.45
CALC_GOR 33900
CALC_MCF_GAS 661
CASING_PRESS 836
GRAVITY_OIL 62
MCF_GAS 661
TUBING_PRESS 504
Perforation Data:
Interval Top:8208 ft.# Of Holes:111
Interval Bottom:8245 ft.Hole Size:

Formation CODL                     Formation Classification:  GW                     Status:  AB - 6/20/2018                 Interval Top: 7772 ft.    Interval Bottom: 7797 ft.

 Completed Information for Formation CODELL
1st Production Date:7/16/1992Choke Size:0.156 in.
Formation Name:CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/24/1955
Treatment Summary:299,000# 20/40 SAND IN 89,380 GALLONS GEL
Tubing Size:2.375 in.Tubing Setting Depth:7662 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/17/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 80
CALC_GOR 1850
MCF_GAS 148
TUBING_PRESS 280
Perforation Data:
Interval Top:7772 ft.# Of Holes:100
Interval Bottom:7797 ft.Hole Size:

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 9/1/1999                  Interval Top: 7772 ft.    Interval Bottom: 8245 ft.

 Completed Information for Formation J-CODELL
1st Production Date:9/9/1992Choke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/6/1992Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 15
CALC_GOR 9333
MCF_GAS 140
TUBING_PRESS 480
Perforation Data:
Interval Top:7772 ft.# Of Holes:211
Interval Bottom:8245 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/20/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
