COGIS - WELL SCOUT CARD
API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-19209		Well Classification: GW Status: PA - 9/24/2018
Well Name/No:VESSELS MINERALS #19-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/24/2018
FacilityID:251406LocationID:330501
Municipality/County:ERIE / WELD #123Location:SWSE 19 1N68W 6
Field:WATTENBERG - #90750Elevation:5047 ft.
Planned Location:768FSL  1988 FELLat/Long: 40.031297 / -105.044097Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.031368 / -105.044225Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

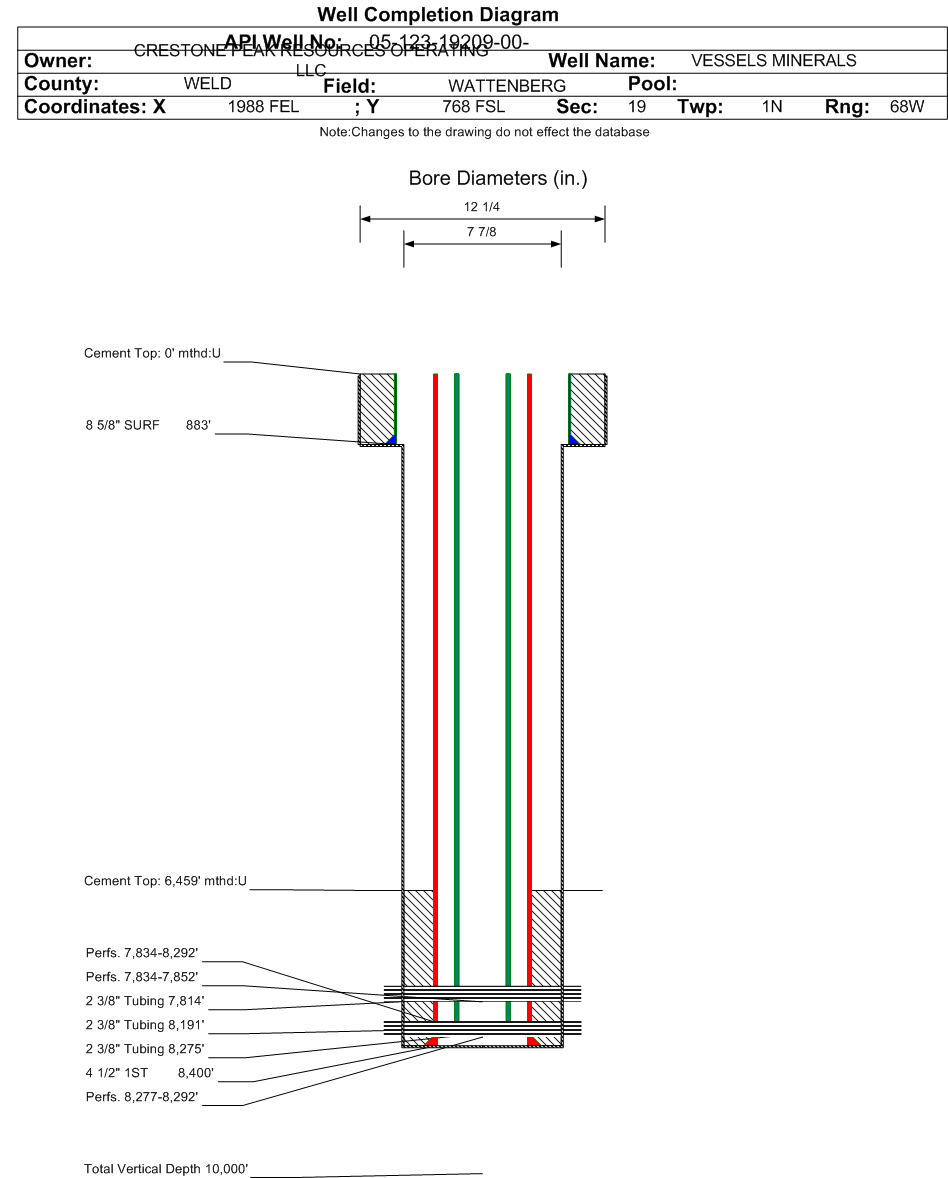

Wellbore #00             Wellbore Classification: GW             Status: PA - 9/24/2018             Measured TD: 8405 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 9/24/2018
Wellbore PermitDRIFTED
Permit #:19960624 Expiration Date:9/9/1997
Proposed Depth/Form:8400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 407 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:11/9/1996
Spud Date:10/19/1996Spud Date Is:ACTUAL
Measured TD:8405 ft.Measured PB depth:8346 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, FDC, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 883 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 385, Top: 0 ft., Bottom: 883 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8400 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 6459 ft., Bottom: 8400 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4479 ft.
SHANNON4683 ft.
NIOBRARA7416 ft.
CODELL7832 ft.
CARLILE7847 ft.
GREENHORN7900 ft.
SKULL CREEK8311 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 9/24/2018                 Interval Top: 8277 ft.

 Completed Information for Formation J SAND
1st Production Date:11/9/1996Choke Size:0.000 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/9/1996
Treatment Summary:FRAC'D W/ 550,000 20/40 M IN 165,000 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:8275 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/13/1996Test Method:FLOWING
Hours Tested:Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 2
CALC_GOR 255000
CASING_PRESS 400
MCF_GAS 510
TUBING_PRESS 210
No Perforation Data was found for formation JSND.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 9/24/2018                 Interval Top: 7834 ft.

 Completed Information for Formation CODELL
1st Production Date:6/20/1998Choke Size:0.375 in.
Formation Name:CODELLCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/9/1996
Treatment Summary:FRAC'D W/ 90,342 GAL MEDALLION 35 LPH GEL W/ 13,820# 100 M, 343,780# 20/40, 8,000# TEMPERED DC 12/20
Tubing Size:2.375 in.Tubing Setting Depth:7814 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/4/1998Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 19
BBLS_OIL 42
CALC_GOR 3762
CASING_PRESS 190
MCF_GAS 158
TUBING_PRESS 420
No Perforation Data was found for formation CODL.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 9/24/2018                 Interval Top: 7834 ft.

 Completed Information for Formation J-CODELL
1st Production Date:1/23/1999Choke Size:
Formation Name:J-CODELLCommingled:
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8191 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/21/1999Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 8
CALC_GOR 41750
CASING_PRESS 230
MCF_GAS 334
TUBING_PRESS 130
No Perforation Data was found for formation J-CDL.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/24/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
