COGIS - WELL SCOUT CARD
API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18982		Well Classification: OW Status: PA - 12/13/2012
Well Name/No:BARB LTD #30-1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/13/2012
FacilityID:251179LocationID:330370
Municipality/County:ERIE / WELD #123Location:NENE 30 1N68W 6
Field:WATTENBERG - #90750Elevation:5077 ft.
Planned Location:465FNL  613 FELLat/Long: 40.027867 / -105.039157Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.028048 / -105.039260Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

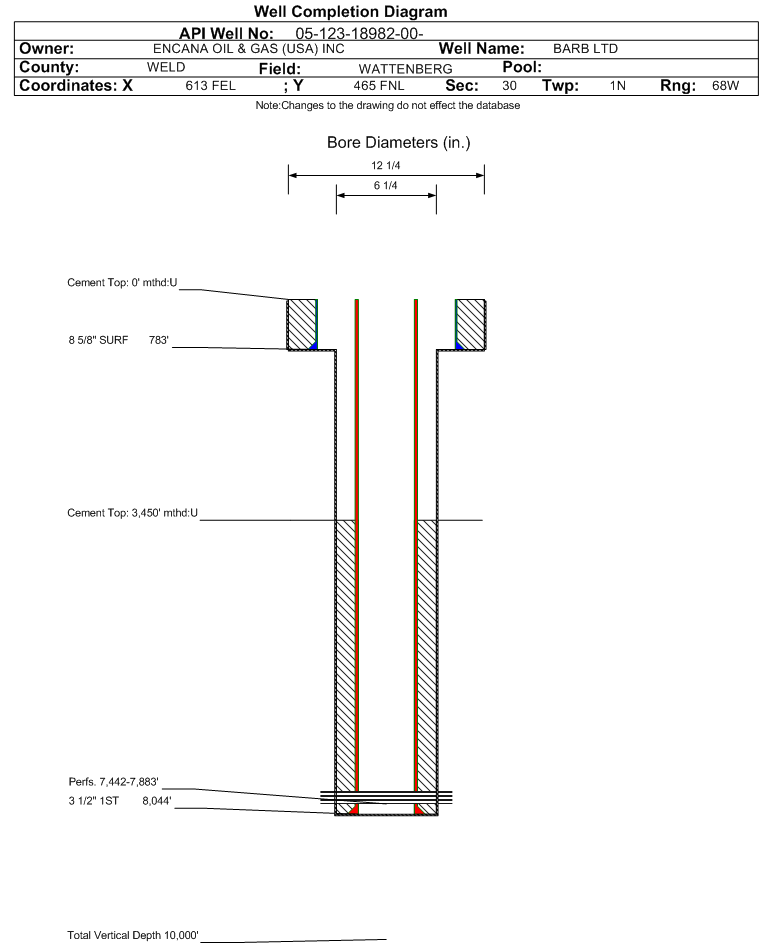

Wellbore #00             Wellbore Classification: OW             Status: PA - 12/13/2012             Measured TD: 8049 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 12/13/2012
Wellbore Permit
Permit #:19950606 Expiration Date:1/13/1996
Proposed Depth/Form:8100 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NE4
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 407 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:11/6/1995
Spud Date:10/12/1995Spud Date Is:ACTUAL
Measured TD:8049 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:FDC, DIL, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 783 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 783 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 3.5 in., Top: , Depth: 8044 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 650, Top: 3450 ft., Bottom: 8044 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA0 ft.
SUSSEX4530 ft.
SHANNON5218 ft.
FORT HAYS7850 ft.
CODELL7869 ft.
CARLILE7889 ft.
GREENHORN7936 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/13/2012                Interval Top: 7442 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/6/1995Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/6/1995
Treatment Summary:ACIDIZE W/ 1,000 GAL, FRAC W/ 450,000# 20/40 M IN 100,212 GAL FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/13/1995Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 14
CALC_GOR 4286
CASING_PRESS 900
MCF_GAS 60
TUBING_PRESS 100
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/13/2012
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
March 2024 - February 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
