COGIS - WELL SCOUT CARD
API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18954		Well Classification: GW Status: PA - 6/4/2008
Well Name/No:BARB LTD #30-8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/4/2008
FacilityID:251151LocationID:330352
Municipality/County:ERIE / WELD #123Location:SENE 30 1N68W 6
Field:WATTENBERG - #90750Elevation:5102 ft.
Planned Location:2175FNL  845 FELLat/Long: 40.023188 / -105.039917Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.023295 / -105.040090Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

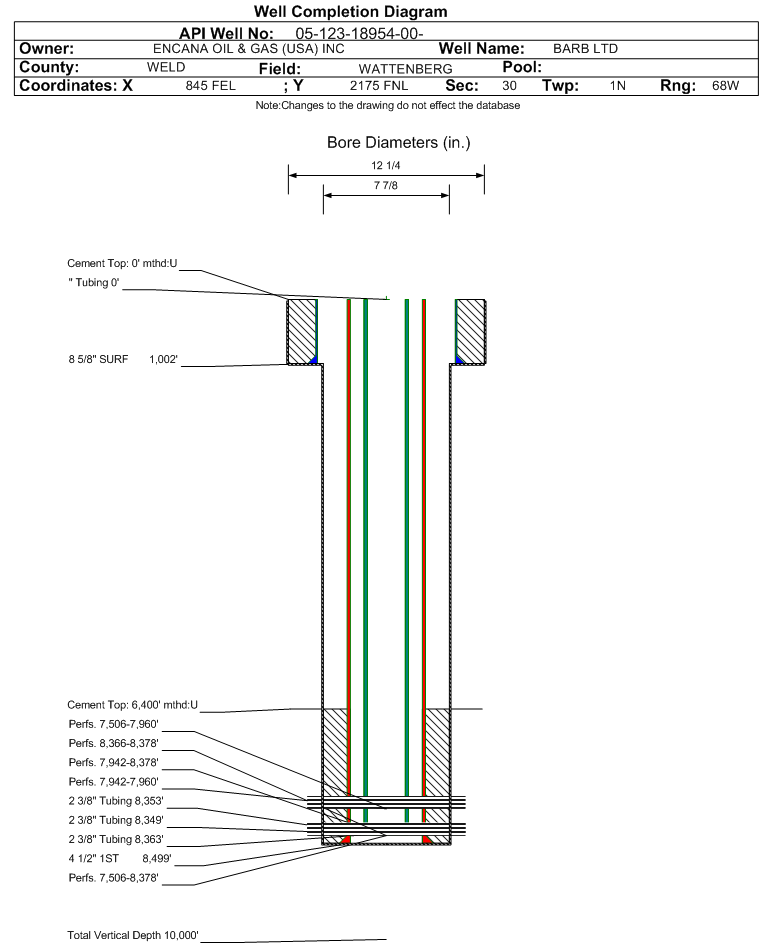

Wellbore #00             Wellbore Classification: GW             Status: PA - 6/4/2008             Measured TD: 8500 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 6/4/2008
Wellbore Permit
Permit #:19960625 Expiration Date:9/10/1997
Proposed Depth/Form:8500 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 232-152 , Unit Acreage: 320, Drill Unit: E2
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NE4
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 407 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:11/29/1996
Spud Date:10/1/1996Spud Date Is:ACTUAL
Measured TD:8500 ft.Measured PB depth:8458 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:AIT, FDC, CBL, SONIC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1002 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 454, Top: 0 ft., Bottom: 1002 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8499 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 6400 ft., Bottom: 8499 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4561 ft.
SHANNON5247 ft.
NIOBRARA7487 ft.
FORT HAYS7921 ft.
CODELL7943 ft.
CARLILE7957 ft.
GREENHORN8005 ft.
SKULL CREEK8400 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/4/2008                  Interval Top: 8366 ft.

 Completed Information for Formation J SAND
1st Production Date:12/4/1996Choke Size:0.000 in.
Formation Name:J SANDCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/29/1996
Treatment Summary:FRAC'D W/ 550,000# 20/40 M IN 164,862 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:8363 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/7/1996Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 14
BBLS_OIL 4
CALC_GOR 57250
CASING_PRESS 130
GRAVITY_OIL 229
TUBING_PRESS 120
No Perforation Data was found for formation JSND.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 6/4/2008                  Interval Top: 7942 ft.

 Completed Information for Formation CODELL
1st Production Date:8/4/1998Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/29/1996
Treatment Summary:FRAC'D W/ 94,080 GAL MEDALLION 35 LPH LHT HC W/ 11,840# 100 M, 293,440# 20/40 AND 7,000# 12/20
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/2/1998Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 36
CALC_GOR 3083
CASING_PRESS 1020
MCF_GAS 111
TUBING_PRESS 510
No Perforation Data was found for formation CODL.

Formation J-CDL                   Formation Classification:  GW                   Status:  CM - 6/4/2008                  Interval Top: 7942 ft.

 Completed Information for Formation J-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-CODELLCommingled:Yes
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8349 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/5/1999Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 9
CALC_GOR 18444
CASING_PRESS 240
MCF_GAS 166
TUBING_PRESS 180
No Perforation Data was found for formation J-CDL.

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 6/4/2008                  Interval Top: 7506 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/29/1996
Treatment Summary:SEE DOCUMENT #01318246
Tubing Size:2.375 in.Tubing Setting Depth:8353 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/22/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 6
CALC_BBLS_H2O 2
CALC_BBLS_OIL 6
CALC_GOR 10500
CALC_MCF_GAS 63
CASING_PRESS 1000
MCF_GAS 63
TUBING_PRESS 250
No Perforation Data was found for formation JNBCD.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 6/4/2008                  Interval Top: 7506 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/30/2005Choke Size:
Formation Name:NIOBRARA-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/28/2005
Treatment Summary:SEE DOCUMENT #01318246.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/2/2005Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 160
BBLS_OIL 10
CALC_BBLS_H2O 160
CALC_BBLS_OIL 10
CALC_GOR 200
CALC_MCF_GAS 2
CASING_PRESS 297
MCF_GAS 2
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/04/2008
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
March 2024 - February 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
