COGIS - WELL SCOUT CARD
API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18953		Well Classification: OW Status: PA - 3/22/2013
Well Name/No:BARB LTD #30-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date3/22/2013
FacilityID:251150LocationID:330351
Municipality/County:ERIE / WELD #123Location:SWNE 30 1N68W 6
Field:WATTENBERG - #90750Elevation:5059 ft.
Planned Location:1944FNL  1895 FELLat/Long: 40.023848 / -105.043677Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.023974 / -105.043860Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 6/27/2008             Measured TD: 8075 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 6/27/2008
Wellbore Permit
Permit #:19950401 Expiration Date:4/26/1995
Proposed Depth/Form:8050 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:11/3/1995
Spud Date:10/18/1995Spud Date Is:ACTUAL
Measured TD:8075 ft.Measured PB depth:8030 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, FDC, CBL

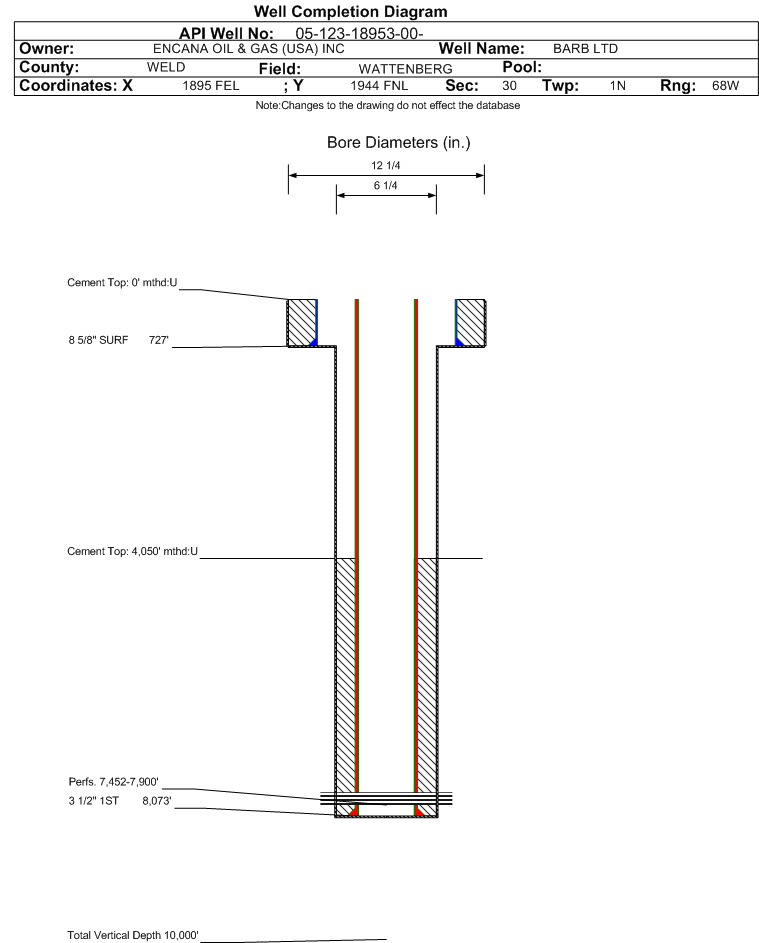

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 727 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 335, Top: 0 ft., Bottom: 727 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 3.5 in., Top: 0 ft., Depth: 8073 ft., Weight: 7.7 , Citings Type: ACTUAL
Cement:Sacks: 650, Top: 4050 ft., Bottom: 8073 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX4537 ft.
SHANNON5210 ft.
NIOBRARA7430 ft.
FORT HAYS7865 ft.
CODELL7885 ft.
CARLILE7908 ft.
GREENHORN7952 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 3/2/1971                  Interval Top: 7452 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:11/3/1995Choke Size:0.250 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:11/3/1995
Treatment Summary:ACIDIZE W/ 2,000 GAL 15% HCL, FRAC W/ 550,000# 20/40 M IN 131,082 GAL FLUID
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/7/1995Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 12
BBLS_OIL 114
CALC_GOR 4465
CASING_PRESS 320
MCF_GAS 509
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/22/2013
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2024 - December 2024i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
