COGIS - WELL SCOUT CARD
API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18931		Well Classification: OW Status: PA - 12/4/2012
Well Name/No:BARB LTD #30-15
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/4/2012
FacilityID:251128LocationID:330345
Municipality/County:ERIE / WELD #123Location:SWSE 30 1N68W 6
Field:WATTENBERG - #90750Elevation:5097 ft.
Planned Location:660FSL  1980 FELLat/Long: 40.016478 / -105.043867Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.016603 / -105.043949Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

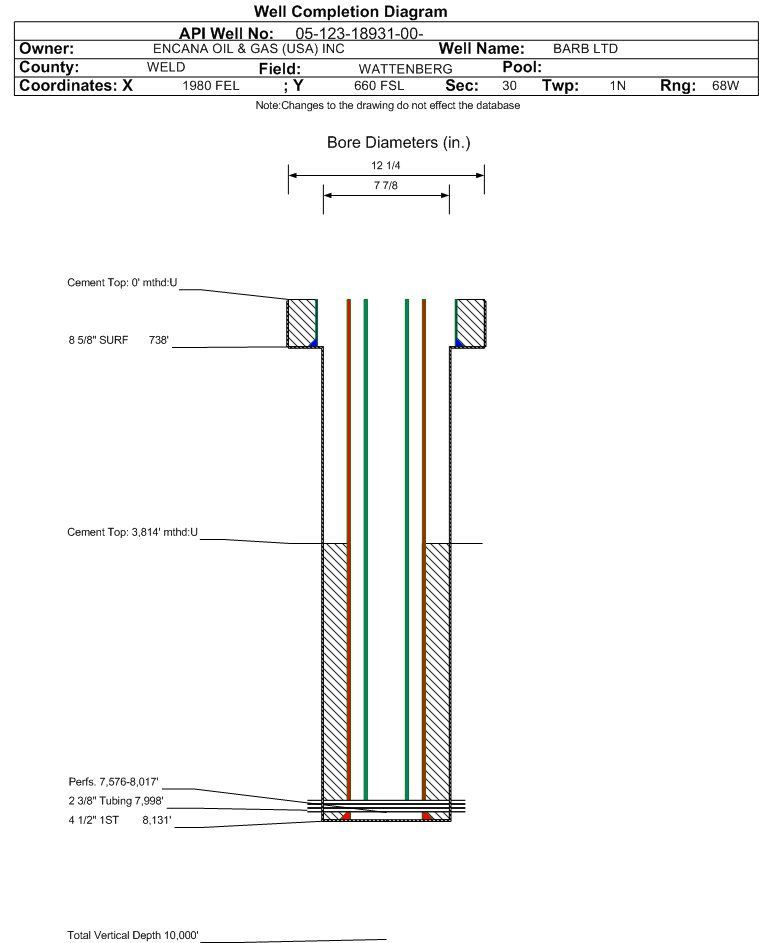

Wellbore #00             Wellbore Classification: OW             Status: PA - 12/4/2012             Measured TD: 8125 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 12/4/2012
Wellbore Permit
Permit #:19950292 Expiration Date:3/21/1996
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 316&320 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:4/26/1995
Spud Date:4/13/1995Spud Date Is:ACTUAL
Measured TD:8125 ft.Measured PB depth:8076 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, FDC, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 738 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 738 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8131 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 540, Top: 3814 ft., Bottom: 8131 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4286 ft.
SUSSEX4600 ft.
SHANNON5296 ft.
NIOBRARA7541 ft.
FORT HAYS7982 ft.
CODELL8002 ft.
CARLILE8022 ft.
GREENHORN8096 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/4/2012                 Interval Top: 7576 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/26/1995Choke Size:0.188 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:4/26/1995
Treatment Summary:ACIDIZED W/ 1,000 GAL 15% HCL ACID, FRAC W/ 450,000# 20/40 M IN 126,000 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:7998 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/30/1995Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 35
BBLS_OIL 186
CALC_GOR 4194
CASING_PRESS 880
MCF_GAS 780
TUBING_PRESS 480
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/04/2012
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
March 2024 - February 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
