 Surface Location
 API# 05-123-18930		Well Classification: OW Status: PA - 10/16/2019
Well Name/No:BARB LTD #30-10
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/16/2019
FacilityID:251127LocationID:330344
Municipality/County:ERIE / WELD #123Location:NWSE 30 1N68W 6
Field:WATTENBERG - #90750Elevation:5060 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  1980 FELLat/Long: 40.020098 / -105.043927Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.020238 / -105.043987Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 10/16/2019             Measured TD: 8057 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 10/16/2019
Wellbore PermitDRIFTED
Permit #:19950291 Expiration Date:3/21/1996
Proposed Depth/Form:8057 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 316&320 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:8/18/1995
Spud Date:4/1/1995Spud Date Is:ACTUAL
Measured TD:8057 ft.Measured PB depth:8012 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, CNL, FDC, CBL

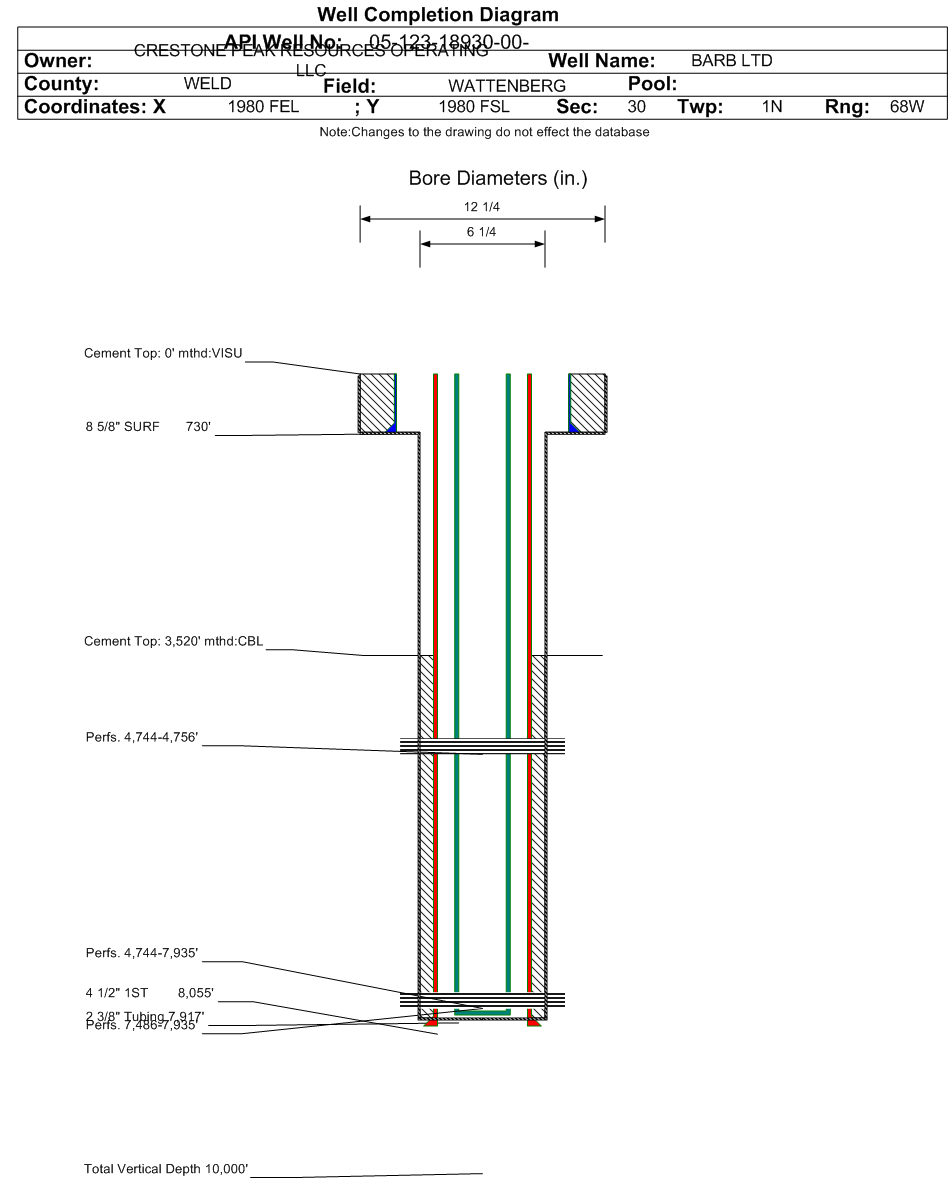

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 730 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 730 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 6.25 in., Size: 4.5 in., Top: 0 ft., Depth: 8055 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 580, Top: 3520 ft., Bottom: 8055 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4232 ft.
SUSSEX4556 ft.
SHANNON5242 ft.
NIOBRARA7454 ft.
FORT HAYS7899 ft.
CODELL7919 ft.
CARLILE7938 ft.
GREENHORN8015 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 10/16/2019                Interval Top: 7486 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/14/1995Choke Size:0.375 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/18/1995
Treatment Summary:ACIDIZE W/ 1,000 GAL 15% HCL ACID, FRAC W/ 450,000# 20/40 SAND IN 129,780 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:7917 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/30/1995Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 35
BBLS_OIL 186
CALC_GOR 4194
CASING_PRESS 880
MCF_GAS 780
TUBING_PRESS 480
No Perforation Data was found for formation NB-CD.

Formation NBCSX                   Formation Classification:  GW                   Status:  CM - 10/16/2019                Interval Top: 4744 ft.

 Completed Information for Formation NIOBRARA-CODELL-SUSSEX
1st Production Date:8/18/1995Choke Size:0.531 in.
Formation Name:NIOBRARA-CODELL-SUSSEXCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:7917 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/25/1995Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 9
BBLS_OIL 84
CALC_GOR 2381
CASING_PRESS 800
MCF_GAS 200
TUBING_PRESS 500
No Perforation Data was found for formation NBCSX.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 10/16/2019                Interval Top: 4744 ft.

 Completed Information for Formation SUSSEX
1st Production Date:8/1/1995Choke Size:
Formation Name:SUSSEXCommingled:Yes
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/18/1995
Treatment Summary:FRAC W/ 234,000# 16/30 M, 17,120# 12/20 COATED RESIN SAND IN 70,350 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:7917 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/12/1995Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 16
BBLS_OIL 5
CASING_PRESS 460
TUBING_PRESS 320
No Perforation Data was found for formation SUSX.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/16/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
