COGIS - WELL SCOUT CARD
API number must be numeric.
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-123-18929		Well Classification: OW Status: PA - 5/30/2008
Well Name/No:BARB LTD #30-9
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/30/2008
FacilityID:251126LocationID:330343
Municipality/County:ERIE / WELD #123Location:NESE 30 1N68W 6
Field:WATTENBERG - #90750Elevation:5078 ft.
Planned Location:1980FSL  660 FELLat/Long: 40.020068 / -105.039207Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.020190 / -105.039310Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 5/30/2008             Measured TD: 8072 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 5/30/2008
Wellbore Permit
Permit #:19950290 Expiration Date:3/21/1996
Proposed Depth/Form:8072 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407 , Unit Acreage: 160, Drill Unit: SE4
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 316&320 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:4/20/1995
Spud Date:4/7/1995Spud Date Is:ACTUAL
Measured TD:8072 ft.Measured PB depth:8022 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, FDC, CBL

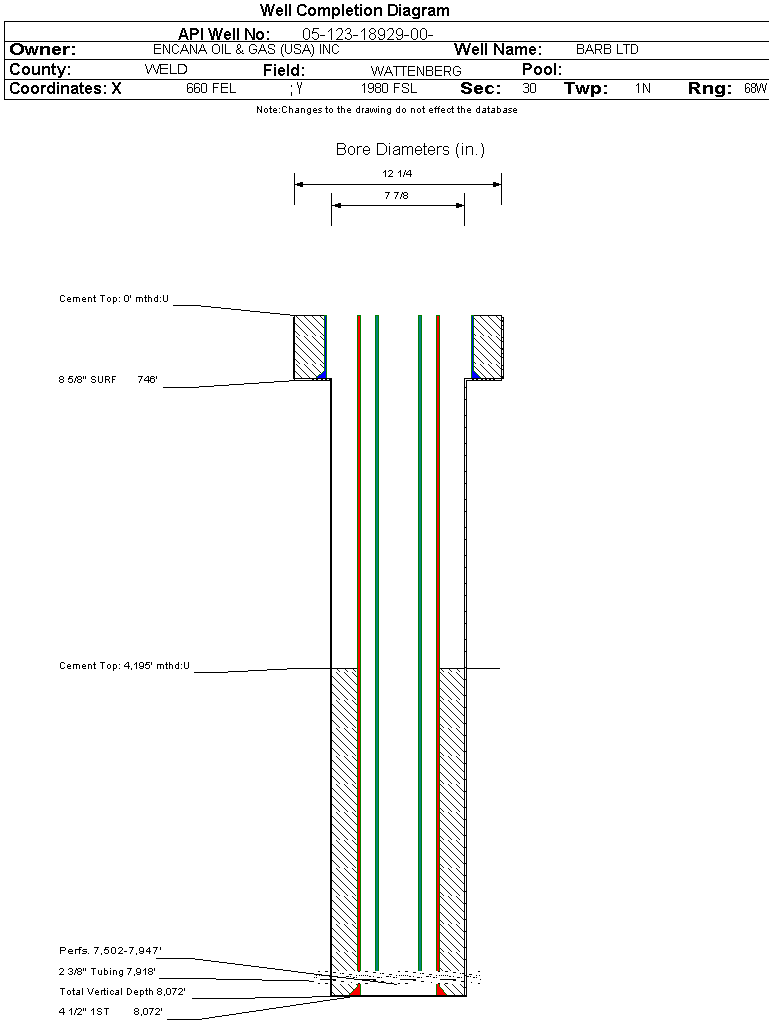

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 746 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 330, Top: 0 ft., Bottom: 746 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8072 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 4195 ft., Bottom: 8072 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4275 ft.
SUSSEX4570 ft.
SHANNON5242 ft.
NIOBRARA7480 ft.
FORT HAYS7912 ft.
CODELL7932 ft.
CARLILE7952 ft.
GREENHORN8025 ft.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 4/30/1995                 Interval Top: 7502 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:4/20/1995Choke Size:0.531 in.
Formation Name:NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:4/20/1995
Treatment Summary:ACIDIZED W/ 1,000 GAL 15% HCL ACID, FRAC W/ 410,000# 20/40 M IN 123,900 GAL FLUID
Tubing Size:2.375 in.Tubing Setting Depth:7918 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/30/1995Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 35
BBLS_OIL 186
CALC_GOR 4194
CASING_PRESS 880
MCF_GAS 780
TUBING_PRESS 480
No Perforation Data was found for formation NB-CD.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/30/2008
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
March 2024 - February 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
