COGIS - WELL SCOUT CARD

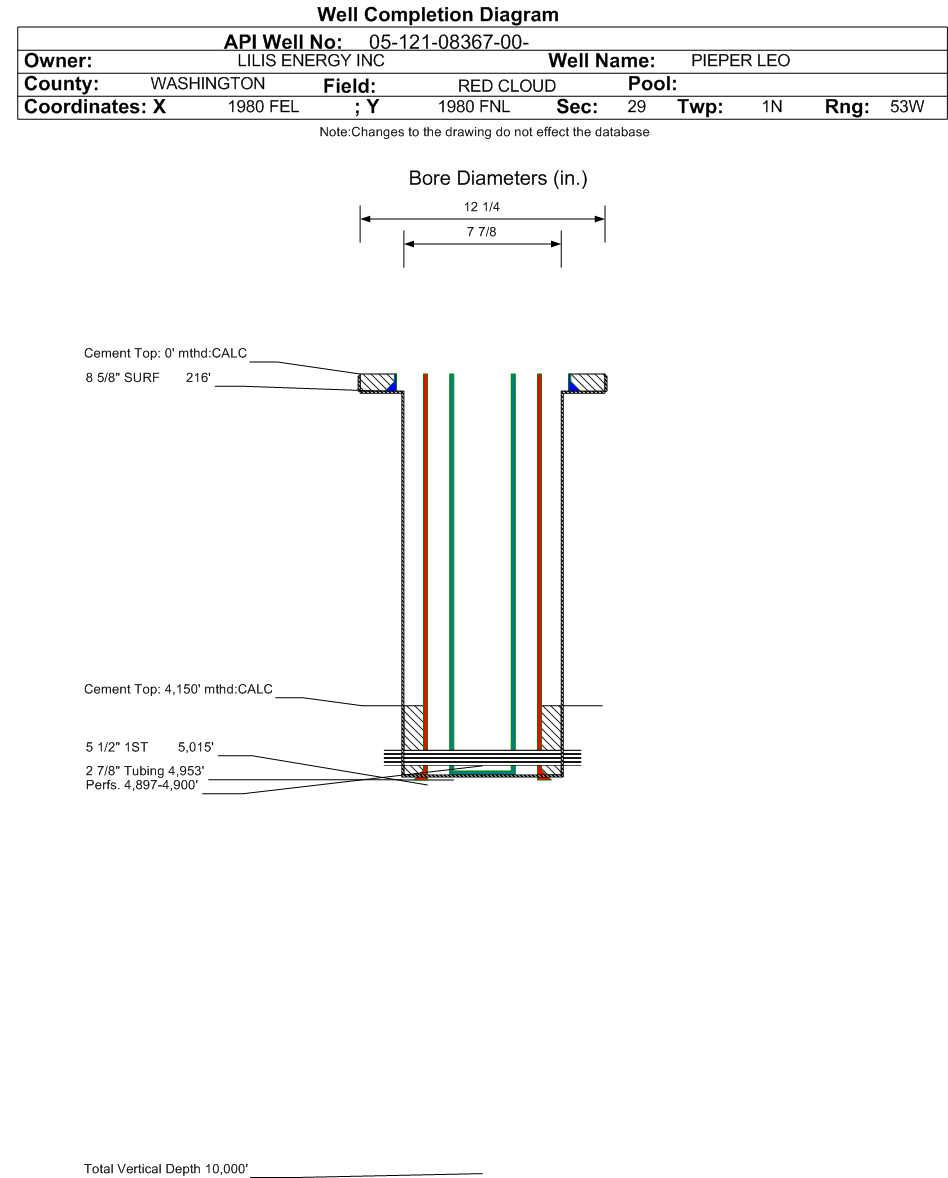

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-121-08367		Well Classification: OW Status: PA - 7/10/2017
Well Name/No:PIEPER LEO #3-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:LILIS ENERGY INC - 10495
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/10/2017
FacilityID:235877LocationID:317077
County:WASHINGTON #121Location:SWNE 29 1N53W 6
Field:RED CLOUD - #72650Elevation:4780 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  1980 FELLat/Long: 40.024886 / -103.328553Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 40.024920 / -103.328540Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 7/10/2017             Measured TD: 5013 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 7/10/2017
Wellbore Permit
Permit #:19690498 Expiration Date:12/20/1969
Proposed Depth/Form:4950 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 40, Drill Unit: SWNE
Wellbore Completed
Completion Date:8/30/1969
Spud Date:8/18/1969Spud Date Is:ACTUAL
Measured TD:5013 ft.Measured PB depth:4974 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION - ELECTRICAL LOG; FORMATION DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 216 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 0 ft., Bottom: 216 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5015 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 4150 ft., Bottom: 5015 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3902 ft.NN
FORT HAYS4365 ft.NN
CODELL4414 ft.NN
CARLILE4422 ft.NN
GREENHORN4502 ft.NN
BENTONITE4740 ft.NN
D SAND4834 ft.NN
J SAND4893 ft.YY

Formation JSND                     Formation Classification:  GW                     Status:  AB - 7/10/2017                 Interval Top: 4897 ft.    Interval Bottom: 4900 ft.

 Completed Information for Formation J SAND
1st Production Date:9/2/1969Choke Size:20,000.000 in.
Formation Name:J SANDCommingled:No
Production Method:PUMPING
Open Hole Completion:
Tubing Size:2.875 in.Tubing Setting Depth:4953 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/2/1969Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 60
BBLS_OIL 86
CALC_GOR 193
CASING_PRESS 40
GRAVITY_OIL 31
MCF_GAS 17
TUBING_PRESS 40
Perforation Data:
Interval Top:4897 ft.# Of Holes:13
Interval Bottom:4900 ft.Hole Size:0.5 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/10/2017
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
