COGIS - WELL SCOUT CARD

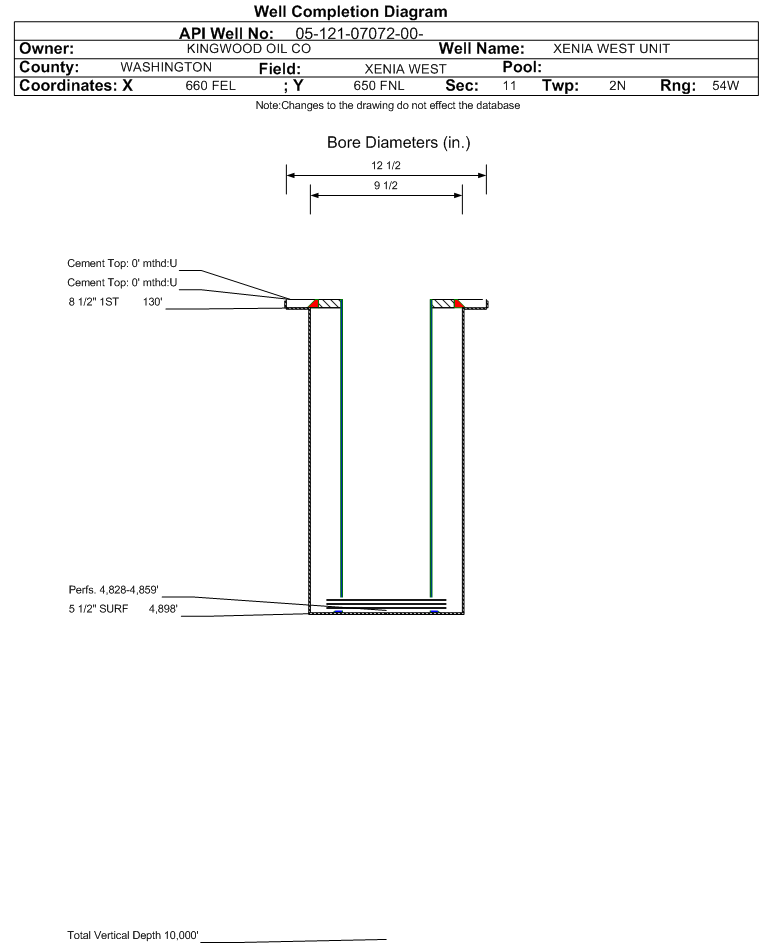

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-121-07072		Well Classification: OW Status: PA - 4/8/1964
Well Name/No:XENIA WEST UNIT #4-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KINGWOOD OIL CO - 47875
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date4/8/1964
FacilityID:234927LocationID:401526
County:WASHINGTON #121Location:NENE 11 2N54W 6
Field:XENIA WEST - #97524Elevation:4528 ft.
Basin:DENVER (DJ) BASIN
Planned Location:650FNL  660 FELLat/Long: 40.159734 / -103.380596Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 4/8/1964             Measured TD: 4900 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 4/8/1964
Wellbore Permit
Permit #:19550000 Expiration Date:5/13/1961
Proposed Depth/Form:5000 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/16/1955
Spud Date:5/26/1955Spud Date Is:ACTUAL
Measured TD:4900 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:ELECTRICAL, TIME DRILLING, STRAIGHT HOLE SURVEY-TOTCO, GAMMA RAY, NEUTRON
Casing:String Type: SURF, Hole Size: , Size: 5.5 in., Top: , Depth: 4898 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: , Size: 8.5 in., Top: , Depth: 130 ft., Weight: 15 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA3930 ft.
TIMPAS4264 ft.4317 ft.
GREENHORN4417 ft.4481 ft.
D SAND4735 ft.4774 ft.
J SAND4870 ft.

Formation UNK                       Formation Classification:  GW                       Status:  AB - 4/8/1964                  Interval Top: 4828 ft.    Interval Bottom: 4859 ft.

 Completed Information for Formation UNKNOWN
1st Production Date:6/13/1955Choke Size:0.750 in.
Formation Name:UNKNOWNCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/13/1955Test Method:FLOWING
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 750
CALC_GOR 100
CASING_PRESS 750
GRAVITY_OIL 46
MCF_GAS 75
TUBING_PRESS 350
Perforation Data:
Interval Top:4828 ft.# Of Holes:56
Interval Bottom:4859 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY04/08/1964
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
