Wellbore #00 Wellbore Classification: GW Status: SI - 11/1/2024 Measured TD: 9300 ft. Vertical TD: 9109 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 11/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20054802 | Expiration Date: | 12/29/2006 | | Proposed Top PZ Location: | Sec:36 Twp: 45N 15W | Footage: 1980 FSL 660 FWL | | Bottom Hole Location: | Sec:36 Twp: 45N 15W | Footage: 1980 FSL 660 FWL | | Proposed Depth/Form: | 9606 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | STATE | Surface Owner: | STATE | | Unit: | HAMILTON | Unit Number: | COC 047632X | | Formation And Spacing: | Code: HRMS , Formation: HERMOSA , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 60 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 60, Top: 0 ft., Bottom: 60 ft. |
| | |

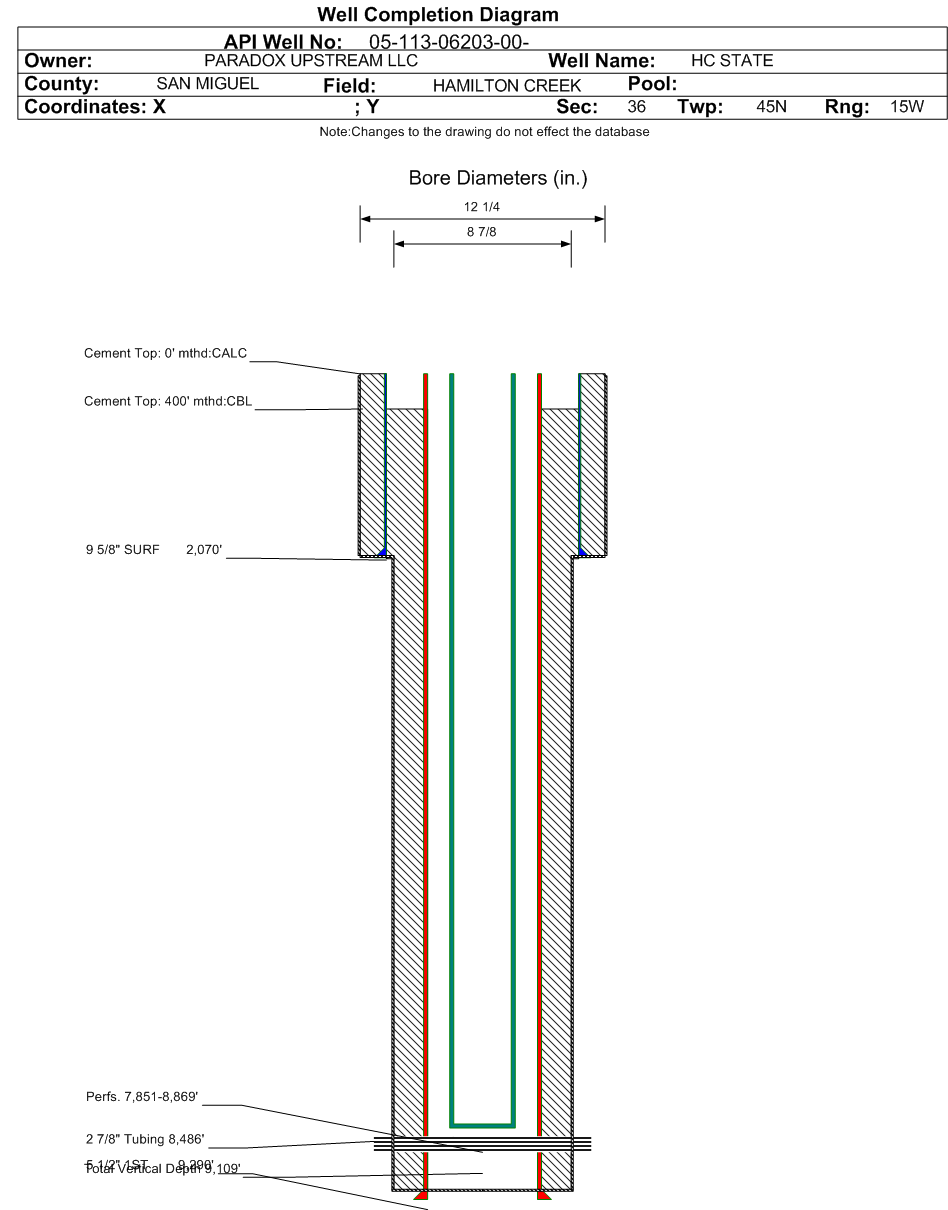

| Wellbore Completed | | Completion Date: | 2/26/2006 | | Spud Date: | 2/3/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 9300 ft. | Measured PB depth: | 9205 ft. | | True Vertical TD: | 9109 ft. | True Vertical PB depth: | 9013 ft. | | Top PZ Location: | Sec:36 Twp: 45N 15W | Footage: 1936 FSL 707 FWL | | Bottom Hole Location: | Sec:36 Twp: 45N 15W | Footage: 1936 FSL 707 FWL | | Log Types: | CBL/GR/CCL,AIT TRIPLE COMBO & PRESSURE EXPRESS, MUD LOG | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2070 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 700, Top: 0 ft., Bottom: 2107 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 8.875 in., Size: 5.5 in., Top: 0 ft., Depth: 9290 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 2000, Top: 400 ft., Bottom: 9295 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | CUTLER | 1650 ft. | | N | N | | HONAKER TRAIL | 6660 ft. | | N | N |
Formation HRMS Formation Classification: GW Status: SI - 11/1/2024 Interval Top: 7851 ft. Interval Bottom: 8869 ft.| Completed Information for Formation HERMOSA | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | HERMOSA | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 3/1/2006 | | Treatment Summary: | FRAC W/ WF 120 70Q FOAM, WF 120 & 323,497# 20/40 SAND |
| | Tubing Size: | 2.875 in. | Tubing Setting Depth: | 8486 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 20 | | BBLS_OIL | 0 | | BTU_GAS | 948 | | CALC_BBLS_H2O | 20 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 571 | | CASING_PRESS | 550 | | MCF_GAS | 571 | | TUBING_PRESS | 350 |
| | Perforation Data: | | Interval Top: | 7851 ft. | # Of Holes: | 262 | | Interval Bottom: | 8869 ft. | Hole Size: | 0.33 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI) | Y | Last Production
09/30/2024 |
| Low Producing | Y | Production Period
01/2025 - 12/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
