COGIS - WELL SCOUT CARD

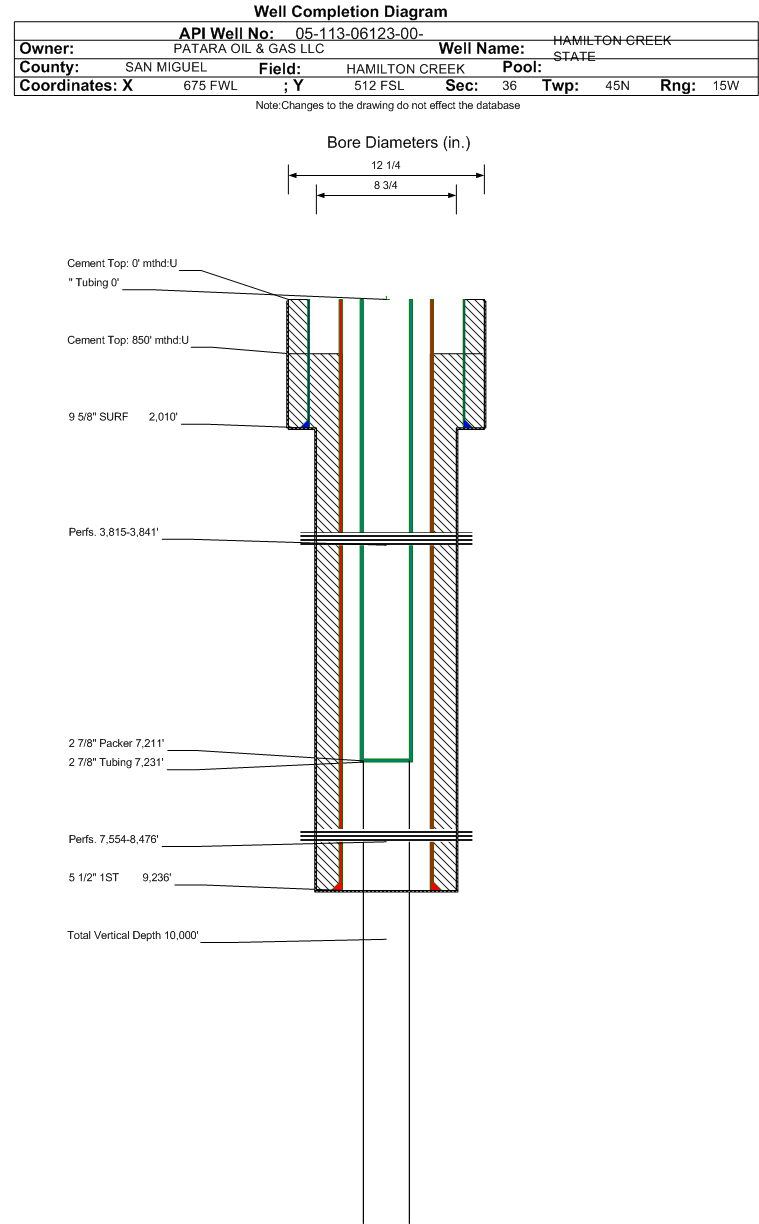

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-113-06123		Well Classification: GW Status: SI - 1/1/2019
Well Name/No:HAMILTON CREEK STATE #36-41
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:AMERICAN HELIUM LLC - 10841
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date1/1/2019
FacilityID:266681LocationID:334299
County:SAN MIGUEL #113Location:SWSW 36 45N15W N
Field:HAMILTON CREEK - #33540Elevation:6809 ft.
Basin:PARADOX BASIN
Planned Location:512FSL  675 FWLLat/Long: 38.103527 / -108.479385Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.103540 / -108.479390Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 1/1/2019             Measured TD: 9268 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 1/1/2019
Wellbore Permit
Permit #:Expiration Date:3/16/2004
Proposed Depth/Form:8800 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:STATESurface Owner:STATE
Unit:HAMILTON UNIT Unit Number:UA
Formation And Spacing:Code: CTLR , Formation: CUTLER , Order: , Unit Acreage: 40, Drill Unit: SWSW
Formation And Spacing:Code: HRMS , Formation: HERMOSA , Order: , Unit Acreage: 40, Drill Unit: SWSW
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft.
Wellbore Completed
Completion Date:10/10/2003
Spud Date:6/11/2003Spud Date Is:ACTUAL
Measured TD:9268 ft.Measured PB depth:9152 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL, GR-C,PLATFORM EXP.TLD-COMP.NEU.PEAIGR - SP
Log Types:CBL, GR-C, PLATFORM EXPRESS TLD-COMPENSATED NEUTRON, PLATFORM EXPRESS ARRAY INDUCTION GAMMA RAY-SP
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 2010 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 440, Top: , Bottom: 2010 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: , Depth: 9236 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 850 ft., Bottom: 9236 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
CUTLER2013 ft.6439 ft.NN
HERMOSA6440 ft.NN

Formation HRMS                     Formation Classification:  GW                     Status:  SI - 1/1/2019                  Interval Top: 7554 ft.    Interval Bottom: 8476 ft.

 Completed Information for Formation HERMOSA
1st Production Date:N/AChoke Size:1.000 in.
Formation Name:HERMOSACommingled:No
Production Method:FLOWING THROUGH TUBING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/10/2003
Treatment Summary:
Tubing Size:2.875 in.Tubing Setting Depth:7231 ft.
Tubing Packer Depth:7231 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/16/2003Test Method:FLOW
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 3
CASING_PRESS 280
MCF_GAS 636
TUBING_PRESS 220
Perforation Data:
Interval Top:7554 ft.# Of Holes:272
Interval Bottom:8476 ft.Hole Size:3 in.

Formation CTLR                     Formation Classification:  GW                     Status:  TA - 2/1/2025                  Interval Top: 3815 ft.    Interval Bottom: 3841 ft.

 Completed Information for Formation CUTLER
1st Production Date:N/AChoke Size:0.359 in.
Formation Name:CUTLERCommingled:No
Production Method:FLOWING THROUGH CASING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/10/2003
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/6/2004Test Method:FLOW
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1665
CASING_PRESS 900
MCF_GAS 1665
Perforation Data:
Interval Top:3815 ft.# Of Holes:104
Interval Bottom:3841 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
12/31/2018
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
