Wellbore #00 Wellbore Classification: GW Status: SI - 6/1/2022 Measured TD: 9744 ft. Vertical TD: 9473 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 6/1/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20030172 | Expiration Date: | 2/20/2004 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 355 FNL 280 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 355 FNL 280 FWL | | Proposed Depth/Form: | 10444 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | DOUBLE EAGLE UN | Unit Number: | | | Formation And Spacing: | Code: CT-HT , Formation: CUTLER-HONAKER TRAIL , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: LASAL , Formation: LASAL , Order: , Unit Acreage: , Drill Unit: |
| | |

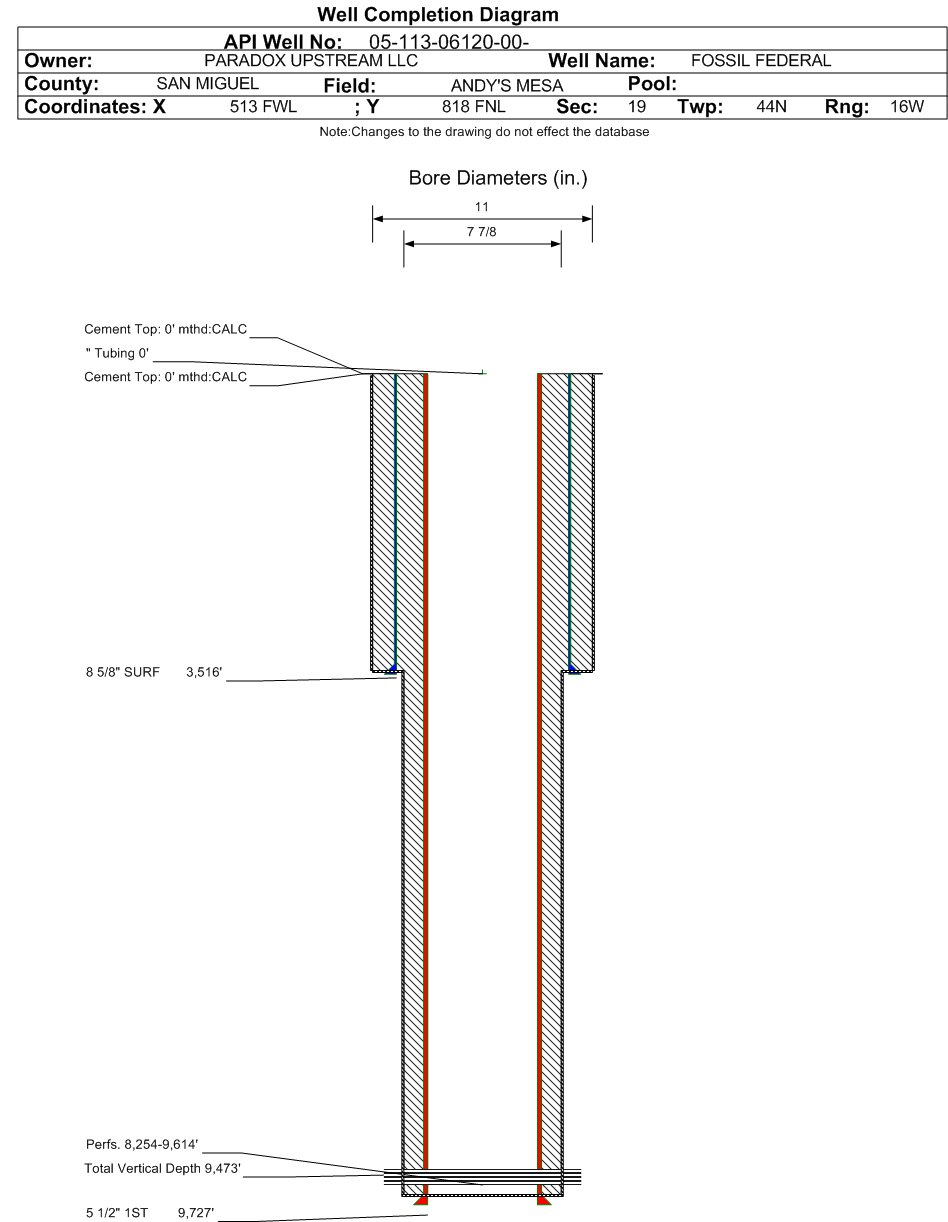

| Wellbore Completed | | Completion Date: | 11/30/2003 | | Spud Date: | 10/26/2003 | Spud Date Is: | ACTUAL | | Measured TD: | 9744 ft. | Measured PB depth: | 9667 ft. | | True Vertical TD: | 9473 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 355 FNL 280 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 355 FNL 280 FWL | | Log Types: | PLATFORM EXPRESS DIL & FDC-CNL W/BHC SONIC LOG | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 3516 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 1040, Top: 0 ft., Bottom: 3516 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 9727 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1390, Top: 0 ft., Bottom: 9727 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | SHINARUMP | 4030 ft. | 4213 ft. | N | N | | CUTLER | 4214 ft. | 7177 ft. | N | N | | HONAKER TRAIL | 7178 ft. | 9744 ft. | N | N |
Formation HNKRT Formation Classification: GW Status: SI - 6/1/2022 Interval Top: 8254 ft. Interval Bottom: 9614 ft.| Completed Information for Formation HONAKER TRAIL | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | HONAKER TRAIL | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 7/7/2015 | Treatment End Date: | N/A | | Treatment Summary: | The previous operator erronesouly reported the top perf to be 8259'. Per the attached WBD and Operations Summary the top perf should be 8254'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 11/30/2003 | | Treatment Summary: | NONE - NATURAL COMPLETION |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 3 | | BBLS_OIL | 4 | | BTU_GAS | 988 | | CALC_BBLS_H2O | 3 | | CALC_BBLS_OIL | 4 | | CALC_GOR | 942900 | | CALC_MCF_GAS | 3300 | | CASING_PRESS | 1180 | | GRAVITY_OIL | 61 | | MCF_GAS | 3300 | | TUBING_PRESS | 1140 |
| | Perforation Data: | | Interval Top: | 8254 ft. | # Of Holes: | 400 | | Interval Bottom: | 9614 ft. | Hole Size: | 0.5 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
03/31/2022 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
