COGIS - WELL SCOUT CARD

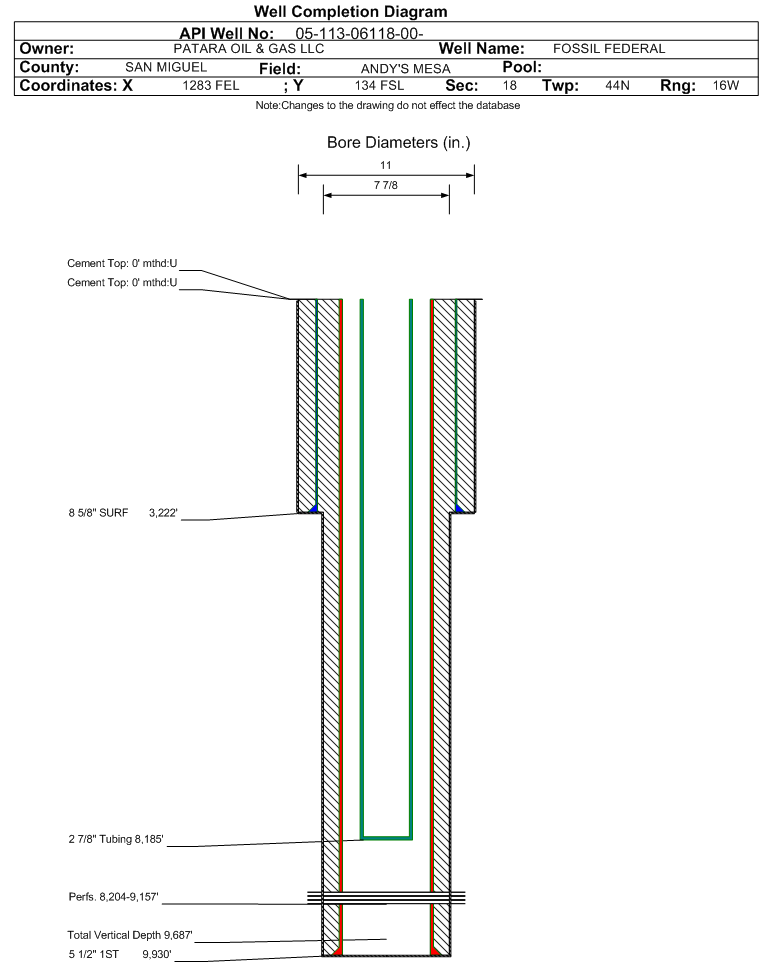

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-113-06118		Well Classification: GW Status: SI - 10/1/2021
Well Name/No:FOSSIL FEDERAL #4-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:AMERICAN HELIUM LLC - 10841
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date10/1/2021
FacilityID:266030LocationID:333206
County:SAN MIGUEL #113Location:SESE 18 44N16W N
Field:ANDY'S MESA - #2500Elevation:6459 ft.
Basin:PARADOX BASIN
Planned Location:134FSL  1283 FELLat/Long: 38.066017 / -108.672160Lat/Long Source: Calculated From Footages
As Drilled Location:98 FNL  1296 FELLat/Long: 38.066176 / -108.672234Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 10/1/2021             Measured TD: 9950 ft.    Vertical TD: 9687 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 10/1/2021
Wellbore Permit
Permit #:20030120 Expiration Date:2/4/2004
Proposed Top PZ Location:Sec: Twp: Footage: 1399 FNL  2167 FEL
Bottom Hole Location:Sec:19 Twp: 44n 16w Footage: 1449 FNL  2153 FEL
Proposed Depth/Form:10225 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit:DOULBE EAGLE UN Unit Number:
Formation And Spacing:Code: CT-HT , Formation: CUTLER-HONAKER TRAIL , Order: , Unit Acreage: 160, Drill Unit: SE/4
Formation And Spacing:Code: LASAL , Formation: LASAL , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:10/13/2003
Spud Date:8/21/2003Spud Date Is:ACTUAL
Measured TD:9950 ft.Measured PB depth:9884 ft.
True Vertical TD:9687 ft.True Vertical PB depth:9621 ft.
Top PZ Location:Sec: Twp: Footage: 1399 FNL  2167 FEL
Bottom Hole Location:Sec:19 Twp: 44n 16wFootage: 1449 FNL  2153 FEL
Log Types:PLATFORM EXPRESS W/BHC, FMI, CBL, HIGH RES LATERLOG, SPECTROSCOPY-NGT.
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 3222 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 1076, Top: 0 ft., Bottom: 3222 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 9930 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 2162, Top: 0 ft., Bottom: 9930 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
HONAKER TRAILYN

Formation HNKRT                   Formation Classification:  GW                   Status:  SI - 10/1/2021                 Interval Top: 8204 ft.    Interval Bottom: 9157 ft.

 Completed Information for Formation HONAKER TRAIL
1st Production Date:N/AChoke Size:
Formation Name:HONAKER TRAILCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/13/2003
Treatment Summary:THESE PERFS WERE ADDED TO EXISTING HONAKER TRAIL PERFS FROM 8,204-8,650' AND 9,109'-9,157'.
Tubing Size:2.875 in.Tubing Setting Depth:8185 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/12/2006Test Method:PLUNGER
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 1
CALC_BBLS_H2O 0
CALC_BBLS_OIL 1
CALC_GOR 400000
CALC_MCF_GAS 400
CASING_PRESS 436
MCF_GAS 400
TUBING_PRESS 402
Perforation Data:
Interval Top:8204 ft.# Of Holes:
Interval Bottom:9157 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
09/30/2021
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
