COGIS - WELL SCOUT CARD

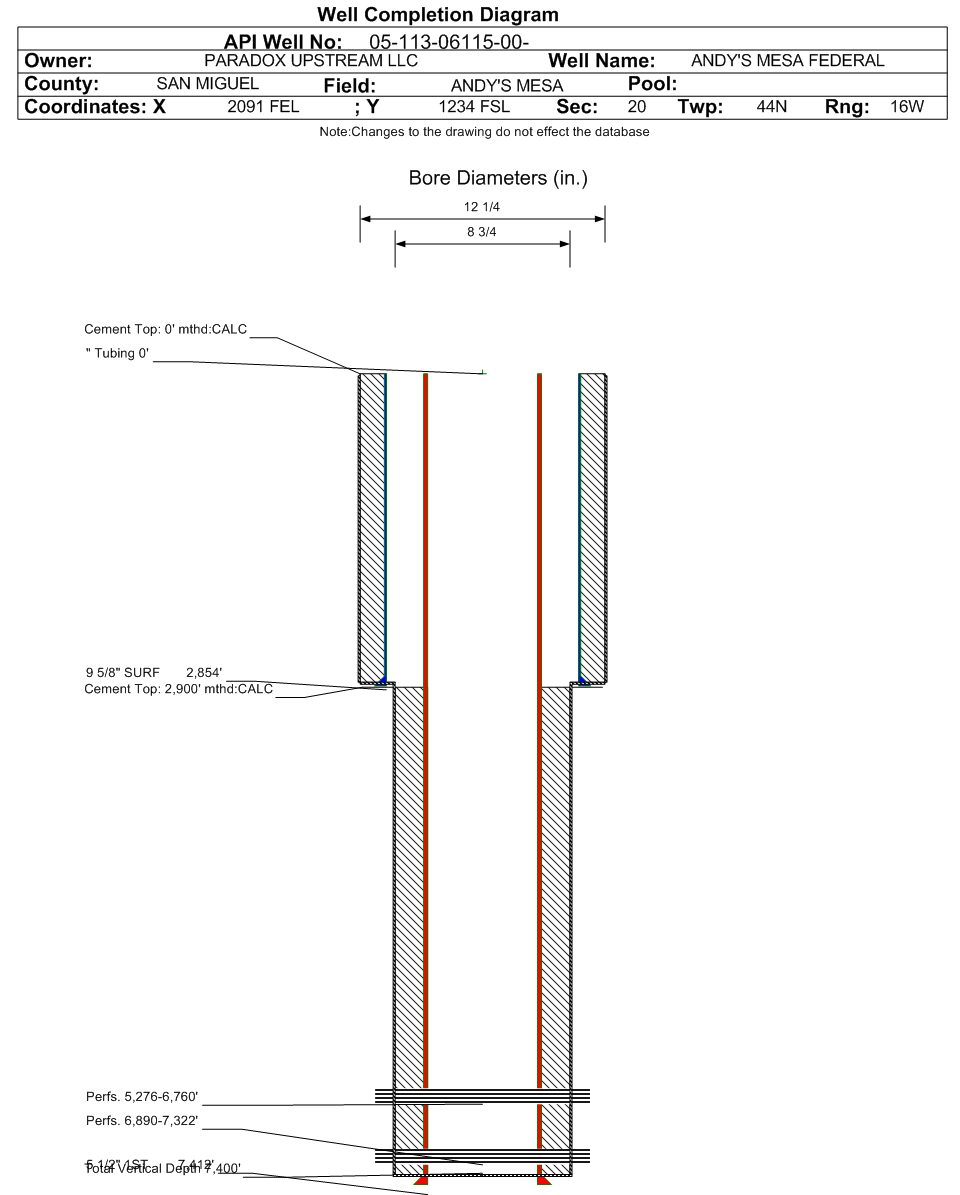

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-113-06115		Well Classification: GW Status: TA - 2/1/2025
Well Name/No:ANDY'S MESA FEDERAL #30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:AMERICAN HELIUM LLC - 10841
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 45989
Facility Status:TAStatus Date2/1/2025
FacilityID:265250LocationID:316835
County:SAN MIGUEL #113Location:SWSE 20 44N16W N
Field:ANDY'S MESA - #2500Elevation:6471 ft.
Basin:PARADOX BASIN
Planned Location:1234FSL  2091 FELLat/Long: 38.054517 / -108.656850Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.054910 / -108.656730Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: TA - 2/1/2025             Measured TD: 7411 ft.    Vertical TD: 7400 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        TA - 2/1/2025
Wellbore Permit
Permit #:20042422 Expiration Date:10/20/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1069 FSL  2209 FEL
Bottom Hole Location:Sec: Twp: Footage: 1085 FSL  2205 FEL
Proposed Depth/Form:8750 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:ANDY'S MESA UNI Unit Number:047585A
Formation And Spacing:Code: CTARK , Formation: CUTLER-ARKOSE , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: HNKRT , Formation: HONAKER TRAIL , Order: , Unit Acreage: 40, Drill Unit: SWSE
Formation And Spacing:Code: HRMS , Formation: HERMOSA , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: ISMY , Formation: ISMAY , Order: , Unit Acreage: 40, Drill Unit: SWSE
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft.
Wellbore Completed
Completion Date:11/28/2004
Spud Date:10/24/2004Spud Date Is:ACTUAL
Measured TD:7411 ft.Measured PB depth:7361 ft.
True Vertical TD:7400 ft.True Vertical PB depth:7349 ft.
Top PZ Location:Sec: Twp: Footage: 1069 FSL  2209 FEL
Bottom Hole Location:Sec: Twp: Footage: 1085 FSL  2205 FEL
Log Types:CBL, MCF, TLD/CNL, HRLA, TCOM-BOREHOLE PROFILE, BHC SONIC
Casing:String Type: CONDUCTOR, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2854 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 930, Top: 0 ft., Bottom: 2854 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 7412 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1180, Top: 2900 ft., Bottom: 7412 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 7412 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1180, Top: 2900 ft., Bottom: 7412 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
CUTLER3922 ft.NN
HONAKER TRAIL6858 ft.NN

Formation HNKRT                   Formation Classification:  GW                   Status:  TA - 2/1/2025                  Interval Top: 6890 ft.    Interval Bottom: 7322 ft.

 Completed Information for Formation HONAKER TRAIL
1st Production Date:12/2/2004Choke Size:
Formation Name:HONAKER TRAILCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/28/2004
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 852
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 755
CASING_PRESS 660
MCF_GAS 755
TUBING_PRESS 570
Perforation Data:
Interval Top:6890 ft.# Of Holes:264
Interval Bottom:7322 ft.Hole Size:3.375 in.

Formation CTLR                     Formation Classification:  GW                     Status:  TA - 3/1/2021                  Interval Top: 5276 ft.    Interval Bottom: 6760 ft.

 Completed Information for Formation CUTLER
1st Production Date:12/2/2004Choke Size:
Formation Name:CUTLERCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/28/2004
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 852
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 755
CASING_PRESS 660
MCF_GAS 755
TUBING_PRESS 570
Perforation Data:
Interval Top:5276 ft.# Of Holes:640
Interval Bottom:6760 ft.Hole Size:3.375 in.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (TA )YDefined Inactive
01/31/2015
Low ProducingYProduction Period
09/2024 - 08/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
