COGIS - WELL SCOUT CARD

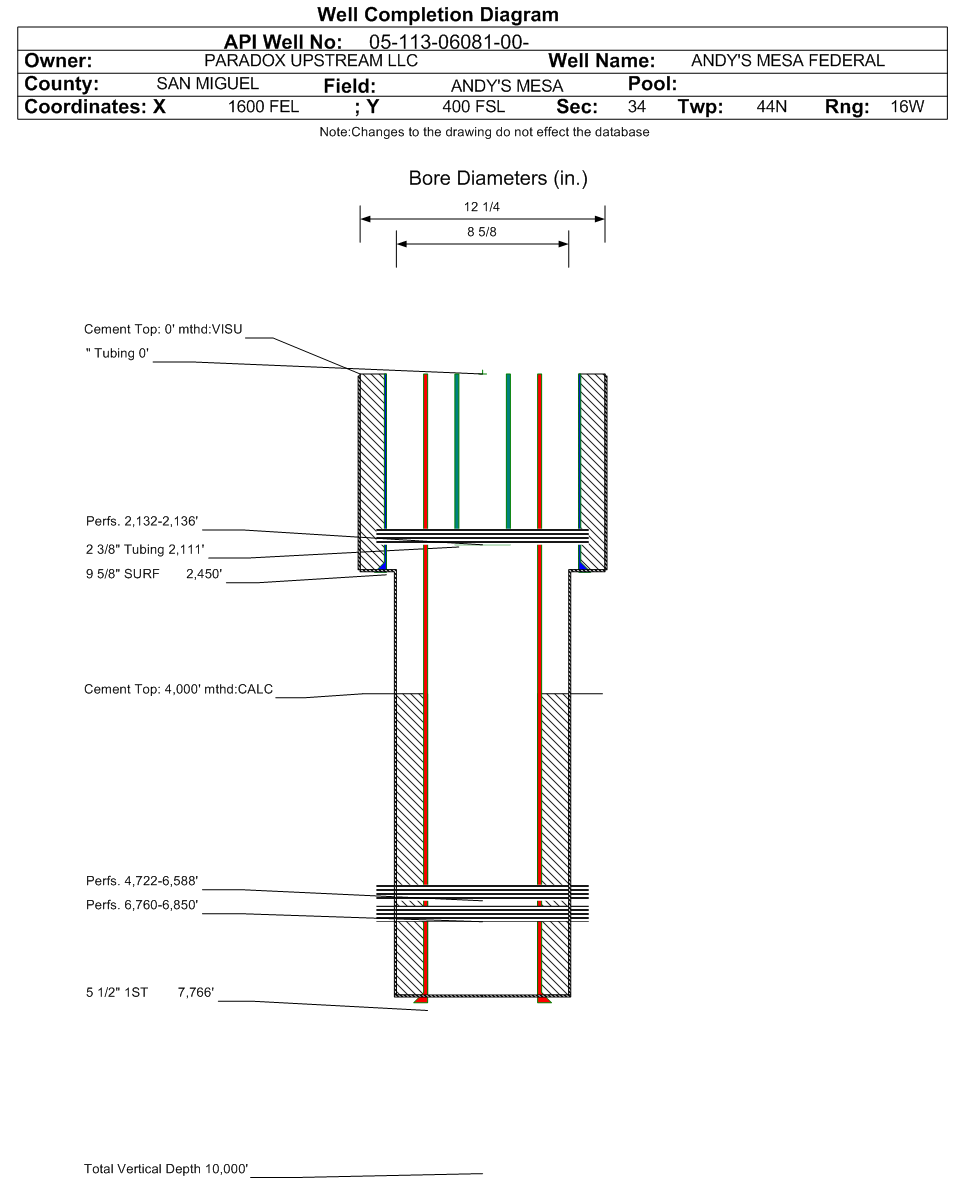

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-113-06081		Well Classification: GW Status: PA - 11/20/2009
Well Name/No:ANDY'S MESA FEDERAL #23
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:AMERICAN HELIUM LLC - 10841
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C0113681
Facility Status:PAStatus Date11/20/2009
FacilityID:260119LocationID:316819
County:SAN MIGUEL #113Location:SWSE 34 44N16W N
Field:ANDY'S MESA - #2500Elevation:6597 ft.
Basin:PARADOX BASIN
Planned Location:400FSL  1600 FELLat/Long: 38.024428 / -108.618048Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.023500 / -108.618120Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 11/20/2009             Measured TD: 8069 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 11/20/2009
Wellbore Permit
Permit #:010958 Expiration Date:5/16/2001
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: CTARK , Formation: CUTLER-ARKOSE , Order: , Unit Acreage: 40, Drill Unit: SWSE
Formation And Spacing:Code: HNKRT , Formation: HONAKER TRAIL , Order: , Unit Acreage: 40, Drill Unit: SWSE
Formation And Spacing:Code: ISMY , Formation: ISMAY , Order: , Unit Acreage: 40, Drill Unit: SWSE
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: , Weight: 120 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 120 ft.
Wellbore Completed
Completion Date:7/7/2001
Spud Date:6/6/2001Spud Date Is:ACTUAL
Measured TD:8069 ft.Measured PB depth:7766 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DI - FDC - CNL - DAS - GR - SP - CAL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 2450 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 930, Top: 0 ft., Bottom: 2450 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.625 in., Size: 5.5 in., Top: , Depth: 7766 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 860, Top: 4000 ft., Bottom: 7766 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
DAKOTA207 ft.NN
BURRO CANYON386 ft.NN
BRUSHY BASIN564 ft.NN
MORRISON564 ft.NN
SALT WASH1052 ft.NN
ENTRADA1397 ft.NN
CAMEO1549 ft.NN
NAVAJO1614 ft.NN
WINGATE2371 ft.NN
CHINLE2624 ft.NN
SHINARUMP3098 ft.NN
MOENKOPI3168 ft.NN
CUTLER3350 ft.NN
CUTLER-ARKOSE4584 ft.NN
HONAKER TRAIL6655 ft.NN
ISMAY7226 ft.NN
PARADOX7698 ft.NN

Formation HNKRT                   Formation Classification:  GW                   Status:  AB - 11/20/2009                Interval Top: 6760 ft.    Interval Bottom: 6850 ft.

 Completed Information for Formation HONAKER TRAIL
1st Production Date:N/AChoke Size:
Formation Name:HONAKER TRAILCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/7/2001
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation HNKRT.
Perforation Data:
Interval Top:6760 ft.# Of Holes:96
Interval Bottom:6850 ft.Hole Size:3 in.

Formation CTLR                     Formation Classification:  GW                     Status:  AB - 11/20/2009                Interval Top: 4722 ft.    Interval Bottom: 6588 ft.

 Completed Information for Formation CUTLER
1st Production Date:N/AChoke Size:
Formation Name:CUTLERCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/7/2001
Treatment Summary:NONE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CTLR.
Perforation Data:
Interval Top:4722 ft.# Of Holes:884
Interval Bottom:6588 ft.Hole Size:3 in.

Formation NAVA                     Formation Classification:  GW                     Status:  AB - 11/20/2009                Interval Top: 2132 ft.    Interval Bottom: 2136 ft.

 Completed Information for Formation NAVAJO
1st Production Date:N/AChoke Size:
Formation Name:NAVAJOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/7/2001
Treatment Summary:WATER ANALYSES WERE TAKEN TO EVALUATE THIS FORMATION FOR POSSIBLE WATER DISPOSAL WELL
Tubing Size:2.375 in.Tubing Setting Depth:2111 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NAVA.
Perforation Data:
Interval Top:2132 ft.# Of Holes:8
Interval Bottom:2136 ft.Hole Size:4 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/20/2009
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
