COGIS - WELL SCOUT CARD

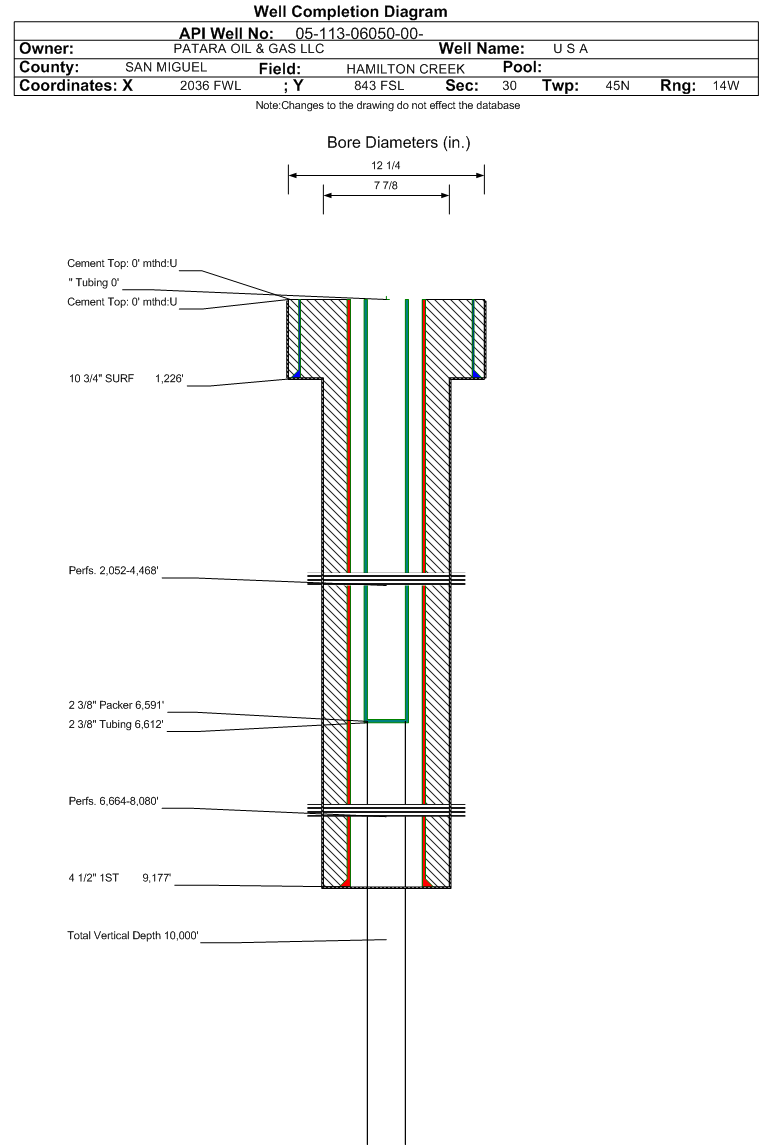

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-113-06050		Well Classification: GW Status: SI - 4/16/2015
Well Name/No:U S A #1-30H
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:AMERICAN HELIUM LLC - 10841
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:49000
Facility Status:SIStatus Date4/16/2015
FacilityID:232861LocationID:316808
County:SAN MIGUEL #113Location:SESW 30 45N14W N
Field:HAMILTON CREEK - #33540Elevation:6700 ft.
Basin:PARADOX BASIN
Planned Location:843FSL  2036 FWLLat/Long: 38.119017 / -108.456304Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 38.119850 / -108.456770Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 4/16/2015             Measured TD: 9209 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 4/16/2015
Wellbore Permit
Permit #:840458 Expiration Date:8/16/1984
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEDERALSurface Owner:Not available
Unit: Unit Number:C-27976
Formation And Spacing:Code: HRMS , Formation: HERMOSA , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:10/19/1994
Spud Date:6/12/1984Spud Date Is:ACTUAL
Measured TD:9209 ft.Measured PB depth:8217 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 10.75 in., Top: 0 ft., Depth: 1226 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 1060, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9177 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
CHINLE1293 ft.
MOENKOPI1706 ft.
CUTLER2045 ft.
HERMOSA6506 ft.

Formation HRMS                     Formation Classification:  GW                     Status:  SI - 4/16/2015                 Interval Top: 6664 ft.    Interval Bottom: 8080 ft.

 Completed Information for Formation HERMOSA
1st Production Date:N/AChoke Size:
Formation Name:HERMOSACommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/19/1994
Treatment Summary:SEE SCANNED DOC #01257682
Tubing Size:2.375 in.Tubing Setting Depth:6612 ft.
Tubing Packer Depth:6611 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/14/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1016
CASING_PRESS 960
MCF_GAS 149
Perforation Data:
Interval Top:6664 ft.# Of Holes:336
Interval Bottom:8080 ft.Hole Size:3.375 in.

Formation CTLR                     Formation Classification:  GW                     Status:  SI - 3/9/2003                  Interval Top: 2052 ft.    Interval Bottom: 4468 ft.

 Completed Information for Formation CUTLER
1st Production Date:N/AChoke Size:
Formation Name:CUTLERCommingled:No
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CTLR.
Perforation Data:
Interval Top:2052 ft.# Of Holes:204
Interval Bottom:4468 ft.Hole Size:3.375 in.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
11/30/2010
Low ProducingYProduction Period
09/2024 - 08/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i Y

 Tribal Well  i No
